Prerequisites
#

DNS Records
#

For the VCSA installation it is necessary to a have a DNS server that resolvs the domain name of the ESXi deployment node and VCSA.

192.168.70.70 vcsa.vsphere.local
192.168.70.71 esxi1.jklug.local

Important Notes
#

Don’t use a .local domain in a production environment. Some Linux distributions, including Ubuntu, resolve .local domains using mDNS (Multicast DNS).

Also make sure to add the storage network / vlan (if existing) as a VMkernel adapter / Management Network, otherwise the traffic is routed through the router.


ESXi
#

Installation
#

  • Press “Enter” to continue setup
  • Press “F11” to Accept the License Agreement
  • Select a disk for the ESXi installation
  • Select the keyboard layout
  • Define the root password
  • Press “F11” to start the installation

  • Remove the installation media

  • Press “Enter” to reboot after the installation has finished

  • Note the IP address

Configuration
#

Define Hostname
#

  • Go to Networking > TCP/IP stacks > Default TCP/IP stack
  • Click Edit settings
  • Select Manually configure the settings for this TCP/IP stack and define a new hostname

Define IPv4 Address
#

Define a static IPv4 address for the VMkernel interface:

  • Go to Networking > VMkernel NICs > vmk0
  • Click Edit settings
  • Select Static and define an IPv4 address
# Open the interface via the new IP
https://192.168.70.71

Management Network VLAN
#

In case the VLAN for the management network is tagged, define the VLAN ID as follows:

  • Go to Networking > Port groups > Management Network
  • Click Edit settings
  • Define VLAN ID

Virtual Machine VLANs
#

Define VLAN port groups for the virtual machines:

  • Go to Networking > Port groups > Add port group
  • Define a “Name” and the “VLAN ID” for the VM network

New user
#

  • Go to Host > Manage > Security & users > Users > Add user

  • RightClick on Host > Permissions

  • Click Add user


Enable SSH
#

  • Go to Host > Manage > Services

  • Start the TSM-SSH service


Add NFS Storage
#

  • Go to Storage > Datastores > New datastore
  • Select Mount NFS datastore
  • Define server IP and path to NFS export

ESXi Shell
#

Define Hostname
#

# List hostname
esxcli system hostname get

# Shell output
   Domain Name: jklug.local
   Fully Qualified Domain Name: esxi1.jklug.local
   Host Name: esxi1

# Define hostname
esxcli system hostname set --host=new-hostname

VMkernel Interfaces
#

VMkernel Interfaces & Details
#

# List VMkernel interfaces
esxcli network ip interface list

# Shell output
vmk0
   Name: vmk0
   MAC Address: 00:0c:29:36:42:d6
   Enabled: true
   Portset: vSwitch0
   Portgroup: Management Network
   Netstack Instance: defaultTcpipStack
   VDS Name: N/A
   VDS UUID: N/A
   VDS Port: N/A
   VDS Connection: -1
   Opaque Network ID: N/A
   Opaque Network Type: N/A
   External ID: N/A
   MTU: 1500
   TSO MSS: 65535
   RXDispQueue Size: 2
   Port ID: 67108870

# List current settings for VMkernel interface vmk0
esxcli network ip interface ipv4 get -i vmk0

# Shell output:
Name  IPv4 Address   IPv4 Netmask   IPv4 Broadcast  Address Type  Gateway       DHCP DNS
----  -------------  -------------  --------------  ------------  ------------  --------
vmk0  192.168.70.71  255.255.255.0  192.168.70.255  STATIC        192.168.70.1     false

Define static IPv4 address
#

# Define static IPv4 address: Syntax
esxcli network ip interface ipv4 set -i vmk0 -t static -I [IP_Address] -N [Netmask] -g [Gateway]

# Define static IPv4 address: Example
esxcli network ip interface ipv4 set -i vmk0 -t static -I 192.168.70.72 -N 255.255.255.0 -g 192.168.70.1

Define DHCP address
#

# Set IP configuration to DHCP
esxcli network ip interface ipv4 set -i vmk0 -t dhcp

Port Groups
#

List available Port Groups
#

#  List all standard switch port groups
esxcli network vswitch standard portgroup list

# Shell output:
Name                Virtual Switch  Active Clients  VLAN ID
------------------  --------------  --------------  -------
Management Network  vSwitch0                     1        0
VM Network          vSwitch0                     0        0

Create new Port Group
#

# Create new port group: Syntax
esxcli network vswitch standard portgroup add -p [PortGroupName] -v [VirtualSwitchName]

# Create new port group: Example
esxcli network vswitch standard portgroup add -p "Linux VMs" -v vSwitch0


# Define VLAN for new port group: Syntax
esxcli network vswitch standard portgroup set -p [PortGroupName] -v [VLAN_ID]

# Define VLAN for new port group: Example
esxcli network vswitch standard portgroup set -p "Linux VMs" -v 102

Storage
#

List Storage Pools
#

# List storage pools
esxcli storage filesystem list

# Shell output:
Mount Point                                        Volume Name                                 UUID                                 Mounted  Type            Size          Free
-------------------------------------------------  ------------------------------------------  -----------------------------------  -------  ------  ------------  ------------
/vmfs/volumes/3b338b0c-eb913a9e                    ESXi1_NFS-Share-1                           3b338b0c-eb913a9e                       true  NFS      63086309376   63084187648
/vmfs/volumes/65a6ee17-10d8c5cc-069f-000c293642d6  ESXi1_Datastore-1                           65a6ee17-10d8c5cc-069f-000c293642d6     true  VMFS-6  375541202944  374027059200

# Path to Storage Pools
/vmfs/volumes/

List NFS Storage Pools
#

# List NFS Storage
esxcli storage nfs list

# Shell output:
Volume Name        Host           Share                      Accessible  Mounted  Read-Only   isPE  Hardware Acceleration
-----------------  -------------  -------------------------  ----------  -------  ---------  -----  ---------------------
ESXi1_NFS-Share-1  192.168.70.21  /srv/nfs/nfs_esxi1-share1        true     true      false  false  Not Supported

# Path to NFS shares
/vmfs/volumes/

Add NFS Storage Pool
#

# Add new NFS storage pool: Syntax
esxcli storage nfs add -H [NFS-Server-IP] -s [NFS-Share-Path] -v [Datastore-Name]

# Add new NFS storage pool: Example
esxcli storage nfs add -H 192.168.70.21 -s /srv/nfs/nfs_esxi1-share1 -v ESXi1_NFS-Share-1

Remove NFS Storage Pool
#

# Remove NFS storage pool: Syntax
esxcli storage nfs remove -v [Datastore-Name]

# Remove NFS storage pool: Example
esxcli storage nfs remove -v ESXi1_NFS-Share-1

ESXtop Commands
#

# Start esxtop
esxtop

# Quit ESXtop
q

# Change refresh time: 1,2, 3 seconds
s 1
s 2
s 3

# Switch to CPU
c

# Switch between: CPU VMs only / View all
shift + v

# Switch to memory
m

# Switch to network
n

# Switch to interrupts
i

# Switch to VM
v

# Switch to Power management
p


VCSA Installation
#

Setup Stage 1
#

  • Mount the VCSA ISO

  • Run ...\vcsa-ui-installer\win32\installer.exe

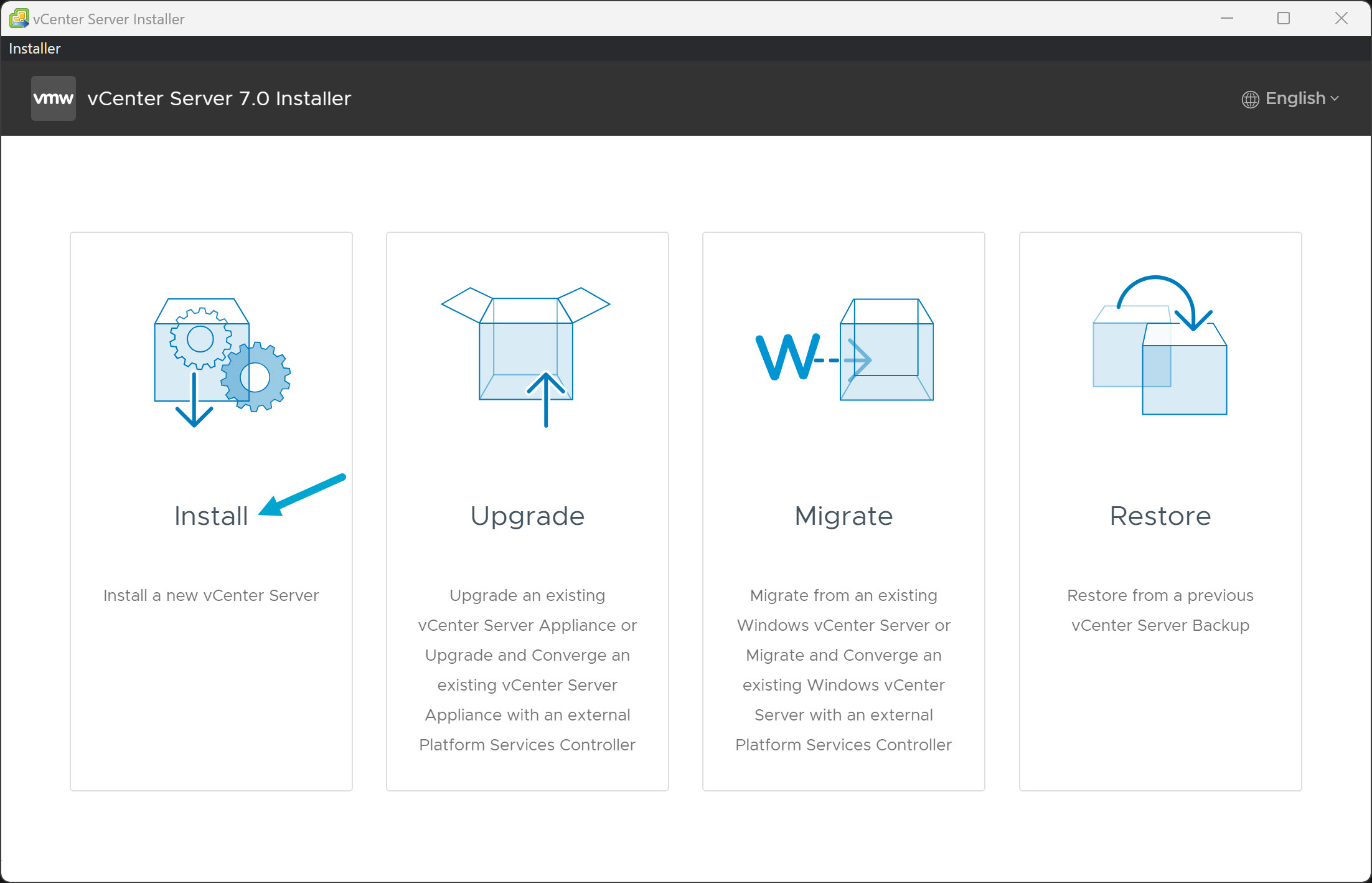

  • Select the “Install” wizard

  • Accept the license agreement
  • Define the domain name of the ESXi target node
  • Define the VM name of VCSA and set a root password
  • Select a deployment size
  • Optional: Enable Thin Provisioning

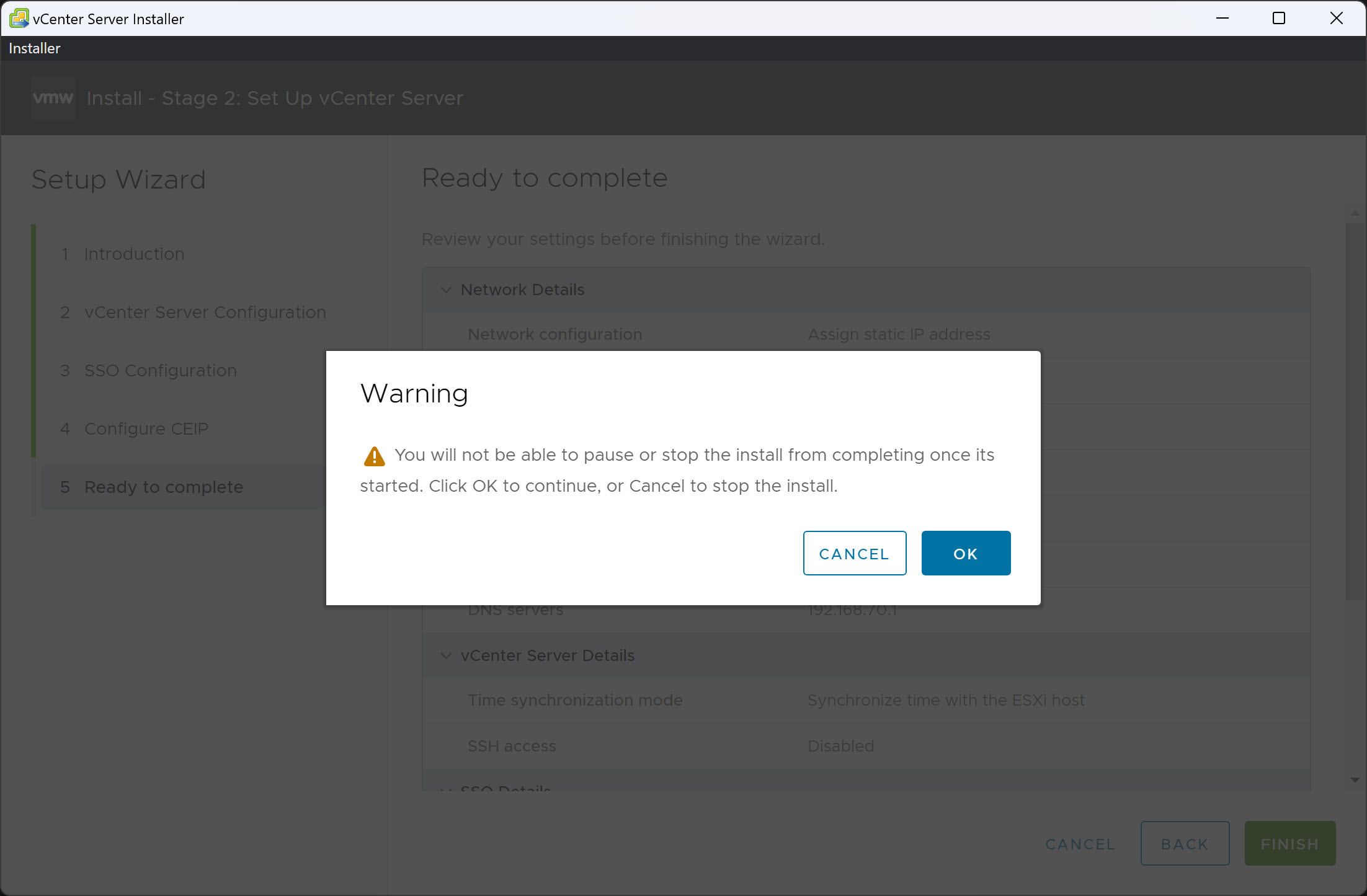

  • Wait for the setup to finish
  • Continue the setup, this can also be done from the webinterface later on https://192.168.70.70:5480/

Setup Stage 2
#


VCSA Configuration
#

vCenter Server Management
#

Login
#

# Webinterface
https://vcsa.vsphere.local:5480/
  • Login with the root credentials

NFS Backup
#

  • Go the Backup and click CONFIGURE to add a backup location
  • Define a NFS share as Backup location
# NFS Share
nfs://192.168.70.21:2049/srv/nfs/nfs_vcsa-backups
  • Create an on-demand backup
  • Use the previously defined backup location
  • Wait till the backup is completed

Install Updates
#

  • Select the most recent update and click STAGE AND INSTALL

Shutdown & Reboot
#


Enable SSH Access
#


vSphere Client
#

Download Root Certificate
#

# Webinterface
https://vcsa.vsphere.local

# Download CA certificates
https://vcsa.vsphere.local/certs/download.zip
  • Click Download trusted root CA certificates

Install Root Certificate
#

Install the downloaded certificate with Certificate Manager

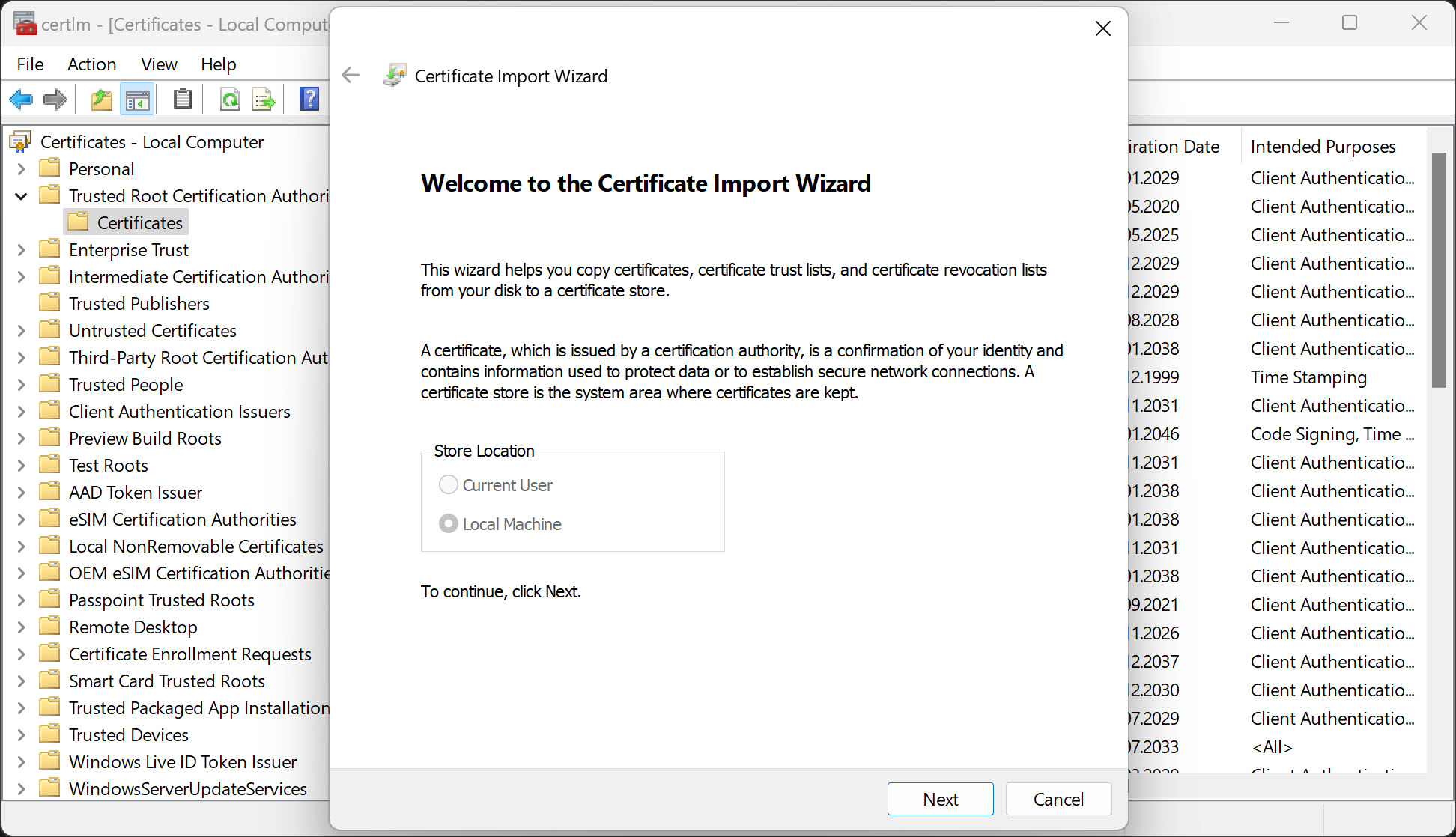

  • Open the Certificate Manager MMC for local computer
# Run
certlm.msc

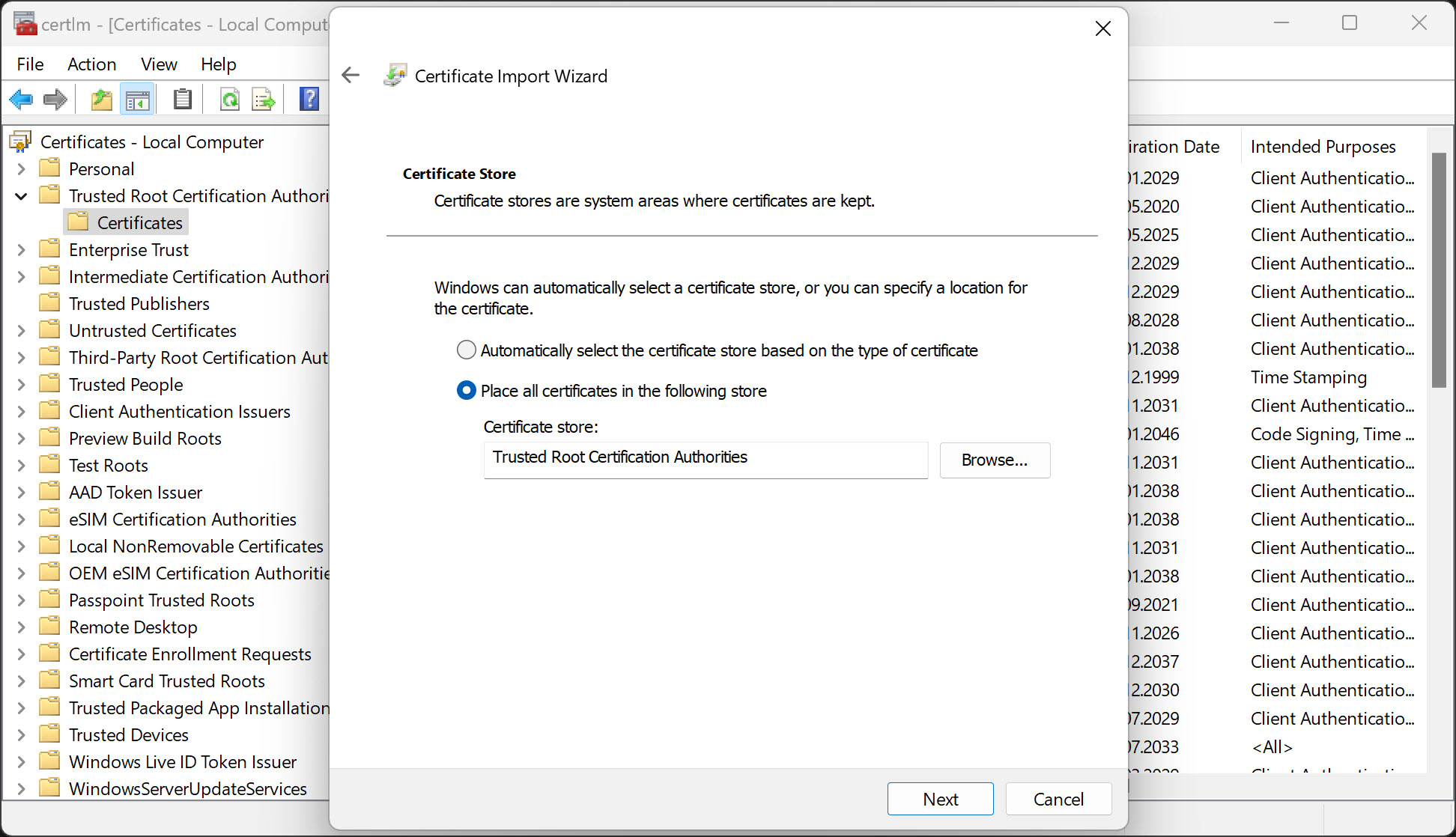

  • Install the certificate
  • Refresh the browser, the connection is now secure

Login
#

# Webinterface
https://vcsa.vsphere.local

# Default login user
Administrator@vsphere.local
  • Login with the vSphere SSO domain user

Session Timeout
#

Go to vSphere Client menu > Administration > Deployment > Client Configuration


Create Datacenter
#

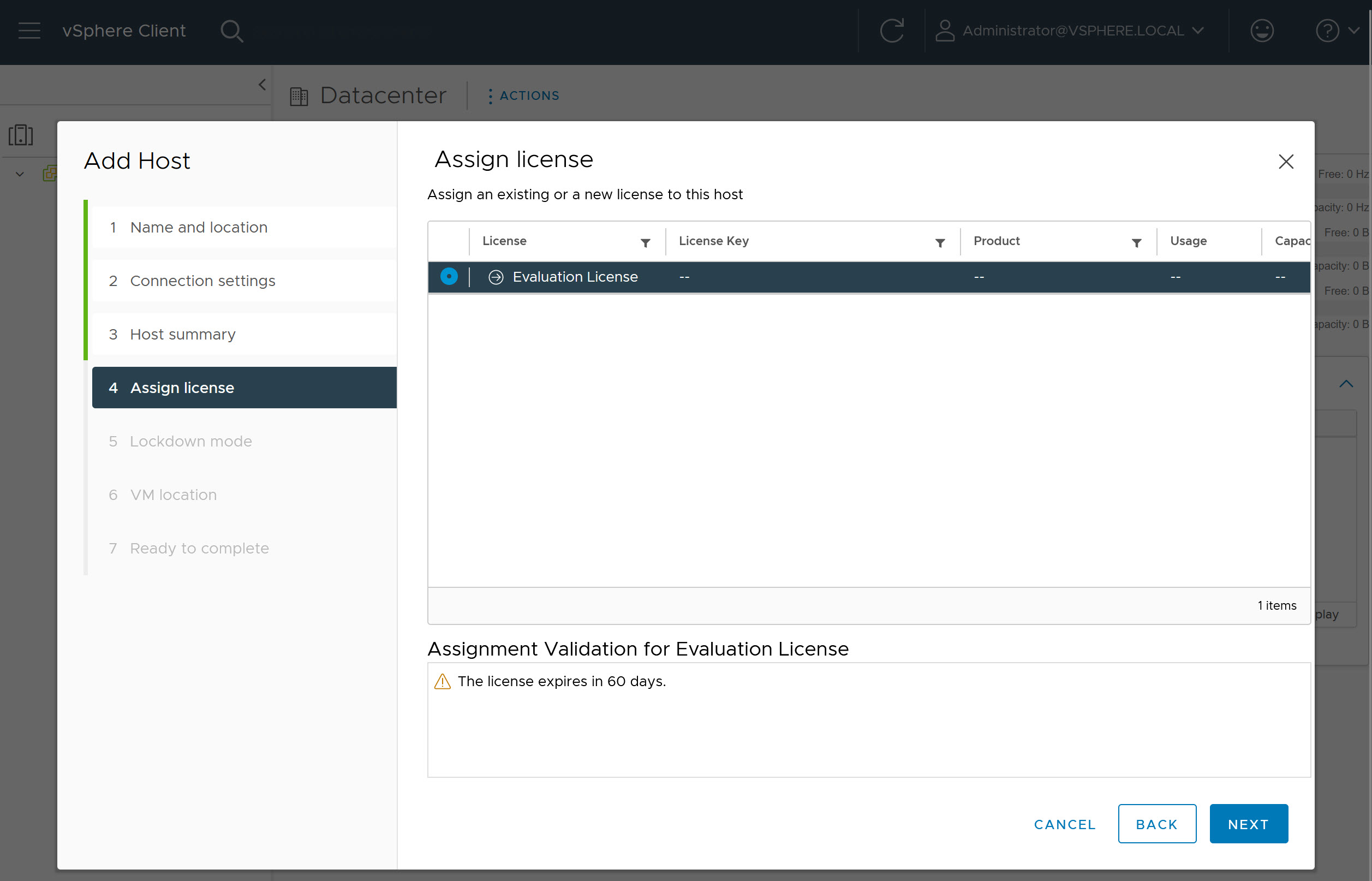

Add ESXi Node
#

  • Define ESXi domaine name of IP
  • Enter ESXi credentials
  • Disable lockdown mode
  • Define VM location

Add ESXi Node Troubleshooting
#

If a second ESXi node is added, for example esxi2.jklug.local make sure the time & date on the ESXi node are correct, otherwise the addition fails with the following error:
A general system error occurred: Unable to pus to push signed certificate to host esxi2.jklug.local

Set time & date:

  • Go to: (Host) > “Manage”

  • Select “System” > “Time & date”

  • Click “Edit NTP Settings”


Remove ESXi Node
#

Right-click on the ESXi host in the vSphere Client

  1. Select “Maintenance Mode” > “Enter Maintenance Mode”

  2. Select “Connection” > “Disconnect”

  3. Select “Remove from Inventory”


TPM & Key Provider
#

To run Windows 11 VMs on vSphere it’s necessary to create a key provider.

  • Select Use key provider only with TPM protected ESXi hosts

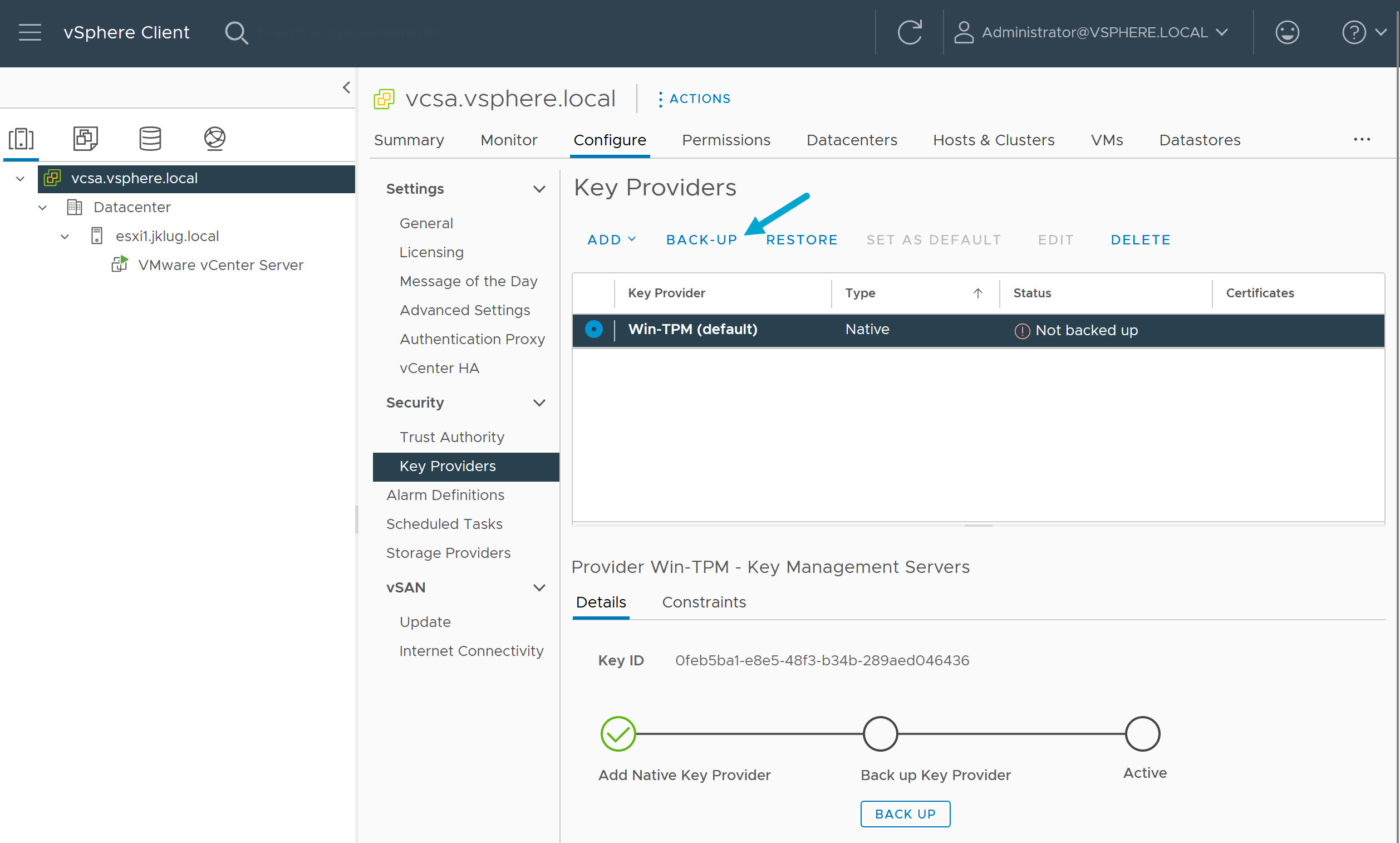

  • Select the new key provider and click BACK-UP
  • Select I have saved the password in a secure place.

Note: It worked fine to backup the key provider with vSphere version 8, but with version 7 I got the following error “Back up of Native Key Provider has failed.”

So I used PowerCLI to backup the key provider on vSphere version 7. To be sure, I have also deleted the key provider and restored it successfully.

Also, for some weird reason it is only possible to add a TPM module to a VM, when the ESXi node where the VM is deployed on is in a cluster. Even if there is only one ESXi node in the cluster.

  • Create a new cluster for the ESXi node
  • Define a name for the cluster
  • Move the ESXi node into the cluster

PowerCLI Setup
#

Install PS Module
#

# Install PS module
Install-Module -Name VMware.PowerCLI
Install-Module -Name VMware.PowerCLI -Scope AllUsers

# Import PS module: PS should automatically import the module when module commands are used
Import-Module VMware.PowerCLI

# Test / check version
Get-PowerCLIVersion

Optional: Ignore Certificates
#

# Ignore certificate: Permanent
Set-PowerCLIConfiguration -InvalidCertificateAction Ignore -Confirm:$false

# Ignore certificate: Reset to default
Set-PowerCLIConfiguration -InvalidCertificateAction Prompt -Confirm:$false

PowerCLI ESXi
#

ESXi Connection
#

Connect: Define PW
#

# Connect to the ESXi node: Define PW
Connect-VIServer -Server 192.168.70.71 -User root -Password your_password

# Shell output:
Name                           Port  User
----                           ----  ----
192.168.70.71                  443   root

Connect: Ask for Credentials
#

# Connect to the ESXi node: Ask for Credentials
$cred = Get-Credential
Connect-VIServer -Server 192.168.70.71 -Credential $cred

# Connect to the ESXi Host: Save credentials to credential store
Connect-VIServer "Server" -User user -Password pass -SaveCredentials

Disconnect
#

# Disconnect from the ESXi node
Disconnect-VIServer -Server 192.168.70.71

PowerCLI vCenter
#

vCenter Connection
#

Connect: Define PW
#

# Connect to vCenter node: Define PW
Connect-VIServer -Server 192.168.70.70 -User Administrator@vsphere.local -Password mypassword

# Shell output:
Name                           Port  User
----                           ----  ----
192.168.70.70                  443   VSPHERE.LOCAL\Administrator

Connect: Ask for Credentials
#

# Connect to the ESXi node: Ask for Credentials
$cred = Get-Credential
Connect-VIServer -Server 192.168.70.70 -Credential $cred

Disconnect
#

# Disconnect from the ESXi node
Disconnect-VIServer -Server 192.168.70.70

Create Datacenter
#

# Create new Datacenter
New-Datacenter -Location (Get-Folder -NoRecursion) -Name 'Datacenter-1'

# Shell output:
Name
----
Datacenter-1

Create Cluster
#

# Create a new Cluster in the Datacenter
New-Cluster -Name 'Cluster-1' -Location 'Datacenter-1' -HAEnabled:$false -DRSEnabled:$false

# Shell output:
Name                           HAEnabled  HAFailover DrsEnabled DrsAutomationLevel
                                          Level
----                           ---------  ---------- ---------- ------------------
Cluster-1                      False      1          False      FullyAutomated

Add ESXi node to Cluster
#

# Add ESXI node to cluster
$esxHost = 'esxi1.jklug.local' # Define ESXi node
$esxUser = 'root' # Define ESXi user
$esxPassword = 'my-password' # Define ESXi password
$cluster = Get-Cluster -Name 'Cluster-1' # Define vCenter cluster

Add-VMHost -Name $esxHost -User $esxUser -Password $esxPassword -Location $cluster -Force:$true

# Shell output:
Name                 ConnectionState PowerState NumCpu CpuUsageMhz CpuTotalMhz   MemoryUsageGB MemoryTotal
                                                                                                        GB
----                 --------------- ---------- ------ ----------- -----------   ------------- -----------
esxi1.jklug.local    Connected       PoweredOn       8           0       27200           0,000      35,999

List ESXi nodes
#

# List ESXi nodes managed by vCenter
Get-VMHost

# Shell output:
Name                 ConnectionState PowerState NumCpu CpuUsageMhz CpuTotalMhz   MemoryUsageGB MemoryTotal
                                                                                                        GB
----                 --------------- ---------- ------ ----------- -----------   ------------- -----------
esxi1.jklug.local    Connected       PoweredOn       8        1144       27200          18,278      35,999

Backup Key-Provider
#

# Backup Key-Provider: Without password
Export-KeyProvider -KeyProvider Win-TPM -FilePath c:\tpm\Win-TPM -Force

# Backup Key-Provider: With password protection
$SecurePassword = ConvertTo-SecureString -String "mytpmpw" -AsPlainText -Force
Export-KeyProvider -KeyProvider Win-TPM -FilePath c:\tpm\Win-TPM -Password $SecurePassword -Force


# Shell output:
Mode                 LastWriteTime         Length Name
----                 -------------         ------ ----
-a----        21.01.2024     22:03           1113 Win-TPM

WARNING: KeyProvider 'Win-TPM' exported to file 'c:\tpm2\Win-TPM' has been protected by the given password.
 Remember to store the password safely.

PowerCLI VMs
#

The following commands can be run from vCenter and ESXi nodes.

List VMs
#

# List all VMs
Get-VM

# Shell output
Name                 PowerState Num CPUs MemoryGB
----                 ---------- -------- --------
Ubuntu-01            PoweredOn  1        2,000
VMware vCenter Se... PoweredOn  6        24,000
vCLS-2c4db3ac-82f... PoweredOn  1        0,125


# List running VMs
Get-VM | Where-Object { $_.PowerState -eq "PoweredOn" }

# List stopped VMs
Get-VM | Where-Object { $_.PowerState -eq "PoweredOff" }

Start, Stop & Restart
#

# Start VM
Start-VM -VM Ubuntu-01


# Stop VM: Gracefully
Shutdown-VMGuest -VM Ubuntu-01 -Confirm:$false

# Stop VM: Power off
Stop-VM -VM Ubuntu-01 -Confirm:$false


# Restart VM: Gracefully
Restart-VMGuest -VM Ubuntu-01

# Restart VM: Hard Reset
Restart-VM -VM Ubuntu-01 -Confirm:$false


# Suspend VM
Suspend-VM -VM Ubuntu-01 -Confirm:$false

VIM-CMD
#

VIM-CMD commands can be used on ESXi nodes.

List Commands
#

# List command categories
vim-cmd

# shell output:
Commands available under /:
hbrsvc/       internalsvc/  solo/         vmsvc/
hostsvc/      proxysvc/     vimsvc/       help


# List commands from command categories: For example vimsvc
vim-cmd vmsvc

Start, Stop, Reboot
#

# List all VMs and ther IDs
vim-cmd vmsvc/getallvms

# Start VM: Define VM ID
vim-cmd vmsvc/power.on 3

# Stop VM: Define VM ID
vim-cmd vmsvc/power.off 3

# Reboot VM: Define VM ID
vim-cmd vmsvc/power.reboot 3

# Reset VM: Define VM ID
vim-cmd vmsvc/power.reset 3

Links #

# ESXi 7.0 ESXCLI Command Reference
https://developer.vmware.com/docs/11743/namespace/esxcli_system.html
