Overview
#

I’m using the following Ubuntu 24.04 based servers in this tuturial:

192.168.30.10 # Prometheus Docker Compose stack
192.168.30.11 # Host monitoring with Node Exporter
192.168.30.12 # Host monitoring with Node Exporter

Prerequisites
#

Gmail App Password
#

Create a Gmail app password, a unique password specifically for third-party applications like Alertmanage:

Go to: https://myaccount.google.com/apppasswords
Define an App-Name like “Alertmanager”
Click “Create”
Copy the generated App-Password: kruc rlac oudn emld

Monitoring Nodes
#

Node Exporter Installation
#

Node Exporter Overview:

The Node Exporter is used to monitor bare metal and virtual servers, it provides metrics such as CPU, memory, disk space, disk I/O, and network bandwidth.
It does not provide metrics about individual processes or applications.
Applications and services should be monitored directly and not together with the host.

The Node Exporter can be installed using a package manager like apt or run as a standalone binary in combination with a Systemd service unit.

Package Manager: Apt
#

# Install the Package Manager on Debian based distros
sudo apt install prometheus-node-exporter

# Verify the installation
systemctl status prometheus-node-exporter

Binary with Systemd Service Unit
#

Find the latest Node Exporter binary:
https://prometheus.io/download/#node_exporter

# Download the tar file
cd /tmp && sudo wget https://github.com/prometheus/node_exporter/releases/download/v1.8.2/node_exporter-1.8.2.linux-amd64.tar.gz

# Unpack the tar file & move the binary
sudo tar xvfz node_exporter*
sudo mv node_exporter*/node_exporter /usr/local/bin/

# Create a dedicated user for Node Exporter
sudo useradd -rs /bin/false node_exporter

# Create Systemd Service Unit file
sudo vi /etc/systemd/system/node_exporter.service

# node_exporter.service
[Unit]
Description=Prometheus exporter for machine metrics
Documentation=https://github.com/prometheus/node_exporter

[Service]
User=node_exporter
Group=node_exporter
Type=simple
ExecStart=/usr/local/bin/node_exporter

[Install]
WantedBy=multi-user.target

# Reload systemd and start the service
sudo systemctl daemon-reload

# Start and enable the service
sudo systemctl start node_exporter && sudo systemctl enable node_exporter

# Verify status
sudo systemctl status node_exporter

Verify Node Exporter Metrics
#

# Check the output from the exporer
curl http://localhost:9100/metrics | grep "node_"

Prometheus Stack
#

File and Folder Stucture
#

Create the folder structure and adapt the directory owners:

# Create folder structure
sudo mkdir -p /opt/prometheus/{alertmanager_conf,prometheus_conf,prometheus_data,grafana_data,grafana_provisioning/datasources} && cd /opt/prometheus

# Change owner
sudo chown 65534:65534 /opt/prometheus/{alertmanager_conf,prometheus_conf} &&
sudo chown 472:root /opt/prometheus/grafana_data

The file and folder structure looks like this:

/opt/prometheus
├── alertmanager_conf
│   └── alertmanager.yml
├── docker-compose.yml
├── grafana_data
├── grafana_provisioning
│   └── datasources
│       └── prometheus_ds.yml
├── prometheus_conf
│   ├── prometheus.yml
│   └── rules.yml
└── prometheus_data

Docker Compose Manifest
#

# Create Docker Compose File
sudo vi docker-compose.yml

services:

  prometheus:
    image: prom/prometheus:latest
    volumes:
      - ./prometheus_conf:/etc/prometheus
      - ./prometheus_data:/prometheus
    ports:
      - "9090:9090"
    command:
      - '--config.file=/etc/prometheus/prometheus.yml'
      - '--storage.tsdb.path=/prometheus'
      - '--storage.tsdb.retention.time=30d'
      - '--web.enable-lifecycle'
    restart: unless-stopped


  alertmanager:
    image: prom/alertmanager:latest
    volumes:
      - ./alertmanager_conf/alertmanager.yml:/etc/alertmanager/config.yml
    command:
      - '--config.file=/etc/alertmanager/config.yml'
    ports:
      - "9093:9093"
    restart: unless-stopped


  grafana:
    image: grafana/grafana:latest
    ports:
      - 3000:3000
    depends_on:
      - prometheus
    volumes:
      - ./grafana_data:/var/lib/grafana
      - ./grafana_provisioning:/etc/grafana/provisioning
    restart: unless-stopped

Configuration Files
#

Prometheus Configuration: prometheus.yml
#

# Create Prometheus configuration
sudo vi prometheus_conf/prometheus.yml

# prometheus.yml
global:
  scrape_interval: 15s
  evaluation_interval: 10s


rule_files:
  - rules.yml

alerting:
  alertmanagers:
    - scheme: http
      static_configs:
        - targets: [ 'alertmanager:9093' ]


scrape_configs:
  # Prometheus Server
  - job_name: 'Prometheus-Server'
    static_configs:
      - targets:
        -  localhost:9090
  # Linux Servers / Node Exporter
  - job_name: 'Linux-Server'
    static_configs:
      - targets:
        -  192.168.30.11:9100
        -  192.168.30.12:9100

Prometheus Configuration: rules.yml
#

# Create rules.yml
sudo vi prometheus_conf/rules.yml

# rules.yml
groups:
  - name: NodeExporter
    rules:
    - alert: InstanceDown
      expr: up{job="Linux-Server"} == 0
      for: 1m

Alertmanager Configuration
#

# create alertmanager.yml
sudo vi alertmanager_conf/alertmanager.yml

# alertmanager.yml
global:
  resolve_timeout: 5m

route:
  receiver: 'email'
  repeat_interval: 1h
  group_by: [ alertname ]

receivers:
  - name: 'email'
    email_configs:
      - smarthost: 'smtp.gmail.com:587'
        auth_username: 'jueklu85@gmail.com'
        auth_password: "krucrlacoudnemld"
        from: 'jueklu85@gmail.com'
        to: 'juergen@jklug.work'

Define the Gmail App Password without spaces in the auth_password: section

Grafana Data Source
#

# Create Grafana data source configuration
sudo vi grafana_provisioning/datasources/prometheus_ds.yml

datasources:
  - name: Prometheus
    access: proxy
    type: prometheus
    url: http://prometheus:9090
    isDefault: true

Start and Verify Docker Containers
#

# Create / start Docker container
sudo docker compose up -d

Verify the Prometheus container stack:

# List containers
docker ps

# Shell output:
CONTAINER ID   IMAGE                      COMMAND                  CREATED       STATUS          PORTS                                       NAMES
697245a0fc4b   grafana/grafana:latest     "/run.sh"                2 hours ago   Up 23 minutes   0.0.0.0:3000->3000/tcp, :::3000->3000/tcp   prometheus-grafana-1
985135f1dc80   prom/alertmanager:latest   "/bin/alertmanager -…"   2 hours ago   Up 23 minutes   0.0.0.0:9093->9093/tcp, :::9093->9093/tcp   prometheus-alertmanager-1
a365a67d3cbc   prom/prometheus:latest     "/bin/prometheus --c…"   2 hours ago   Up 23 minutes   0.0.0.0:9090->9090/tcp, :::9090->9090/tcp   prometheus-prometheus-1

Webinterfaces
#

Prometheus Webinterface
#

Open Webinterface
#

# Open the Prometheus webinterface
http://192.168.30.10:9090

Verify Endpoints
#

Select “Status” > “Target health”

Alertmanager Webinterface
#

# Open the Alertmanager webinterface
http://192.168.30.10:9093/#/alerts

Grafana Webinterface
#

Login
#

# Grafana webinterface
192.168.30.10:3000

# Default user
admin

# Default password
admin

Import the “Node Exporter Full” Dashboard
#

Import the “Node Exporter Full” dashboard with the ID “1860”:

Go to: “Home” > “Dashboard”
Click “+ Create dashboard”
Select “Import dashboard”
Paste the dashboard ID “1860” and click “Load”
Select the “Prometheus” data source
Click “Import”

The dashboard should look like this:

Example Alert
#

Stop Node Exporter Service
#

Stop the Nope Exporter Service on one of the monitoring nodes:

# Stop the Node Exporter service
sudo systemctl stop prometheus-node-exporter

# Verify the Node Exporter service status
systemctl status prometheus-node-exporter

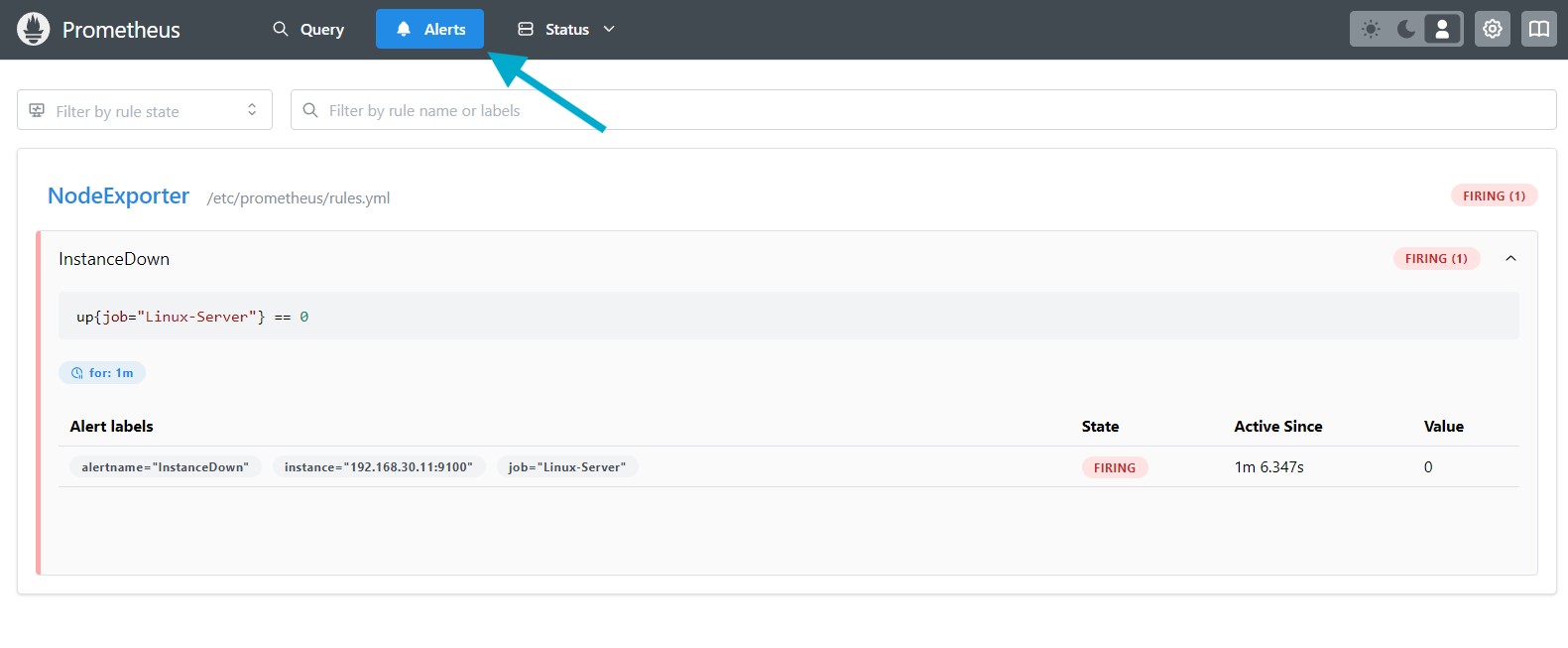

Verify the Prometheus Alert
#

# Verify the alert in the Prometheus webinterface
http://192.168.30.10:9090/alerts

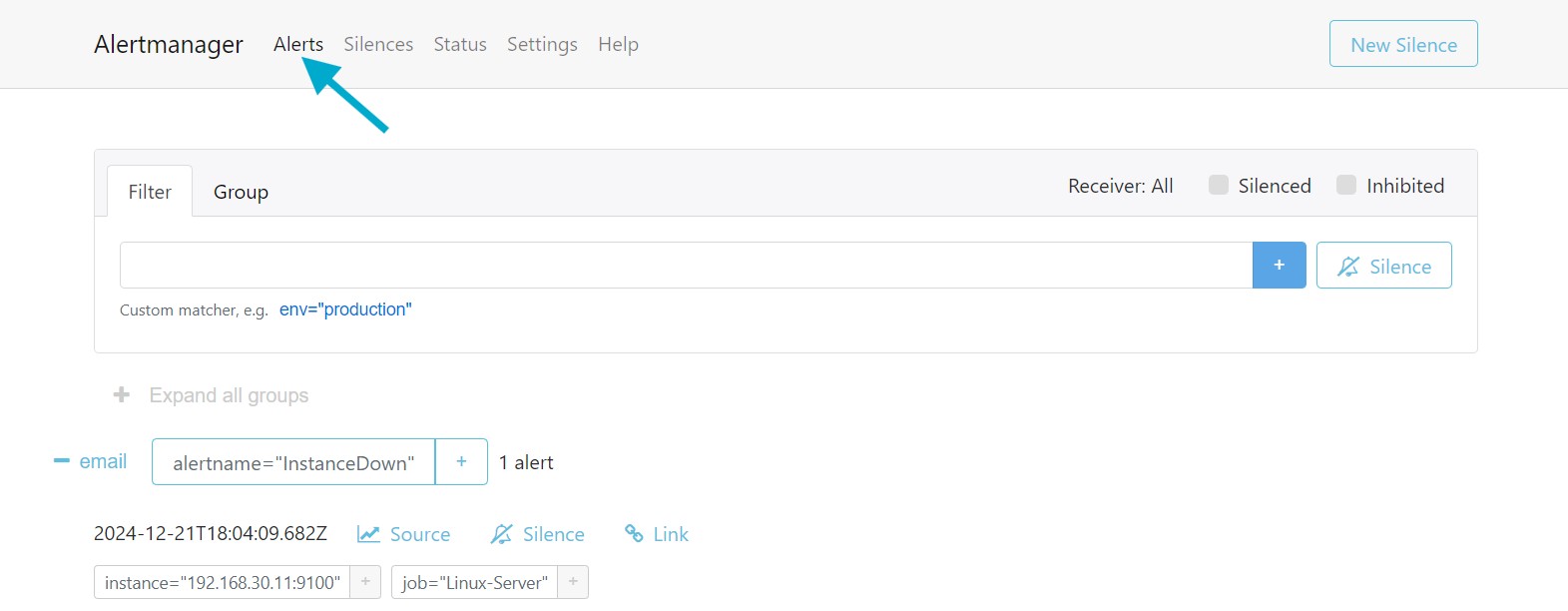

Verify the Alertmanager Alert
#

# Verify the alert in the Prometheus webinterface
http://192.168.30.10:9093/#/alerts

Verify Email Alert
#

An Email alert like this should be sent:

Links
#

# Prometheus GitHub
https://github.com/prometheus

# Prometheus Alerts
https://samber.github.io/awesome-prometheus-alerts/

# Download Prometheus
https://prometheus.io/download/

# Download Node Exporter
https://prometheus.io/download/#node_exporter

# Official Documentation
https://prometheus.io/docs/introduction/overview/

# Exporters
https://prometheus.io/docs/instrumenting/exporters/

# Node Exporter
https://prometheus.io/docs/guides/node-exporter/

# Node Exporter GitHub
https://github.com/prometheus/node_exporter
