PostgreSQL: PostgreSQL Kubernetes Deployment via Helm, PostgreSQL Monitoring via Kube-Prometheus-Stack

2144 words·
PostgreSQL Kubernetes Helm Kube-Prometheus-Stack
Table of Contents

Overview
#

In this tutorial I’m using an Ubuntu 24.04 based NFS server and a Kubernetes version 1.28 Kubernetes Cluster with Nginx Ingress, deployed with Kubeadm:

192.168.30.13 # NFS server

# Kubernetes cluster
NAME      STATUS   ROLES           AGE   VERSION    INTERNAL-IP     EXTERNAL-IP   OS-IMAGE           KERNEL-VERSION     CONTAINER-RUNTIME
ubuntu1   Ready    control-plane   48d   v1.28.11   192.168.30.10   <none>        Ubuntu 24.04 LTS   6.8.0-36-generic   containerd://1.7.18
ubuntu2   Ready    worker          48d   v1.28.11   192.168.30.11   <none>        Ubuntu 24.04 LTS   6.8.0-36-generic   containerd://1.7.18
ubuntu3   Ready    worker          48d   v1.28.11   192.168.30.12   <none>        Ubuntu 24.04 LTS   6.8.0-36-generic   containerd://1.7.18

Prerequisites
#

NFS Server Setup
#

# Create directory for NFS share
sudo mkdir -p /srv/nfs/k8s_share/postgres

# Change permissions
sudo chown -R 1001:1001 /srv/nfs/k8s_share/postgres

# Install NFS package
sudo apt install nfs-kernel-server -y

# Open NFS configuration
sudo vi /etc/exports

# NFS configuration: Define the kubernetes nodes
/srv/nfs/k8s_share 192.168.30.10(rw,sync,no_root_squash)
/srv/nfs/k8s_share 192.168.30.11(rw,sync,no_root_squash)
/srv/nfs/k8s_share 192.168.30.12(rw,sync,no_root_squash)

# Restart NFS server
sudo systemctl restart nfs-server

Install NFS Client on Kubernetes Nodes
#

Install the NFS utilities package on the Kubernetes node:

# Install NFS utilities package
sudo apt install nfs-common -y

Verify the NFS connectivity:

# Verify that the NFS server is correctly configured
/usr/sbin/showmount -e 192.168.30.13

# Shell output:
Export list for 192.168.30.13:
/srv/nfs/k8s_share 192.168.30.12,192.168.30.11,192.168.30.1



PostgreSQL Installation
#

Create Namespace
#

# Create a namespace for the PostgreSQL deployment
kubectl create namespace postgres

StorageClass, PV, PVC
#

vi postgresql-pv.yaml

apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  name: postgresql-pv
provisioner: kubernetes.io/no-provisioner
volumeBindingMode: Immediate

---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: postgresql-pv
spec:
  storageClassName: postgresql-pv
  accessModes:
  - ReadWriteOnce
  capacity:
    storage: 10Gi
  volumeMode: Filesystem
  persistentVolumeReclaimPolicy: Retain
  nfs:
    path: /srv/nfs/k8s_share/postgres
    server: 192.168.30.13

---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: postgresql-pv-claim
  namespace: postgres # Define the "postgres" namespace
spec:
  storageClassName: postgresql-pv
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 10Gi

# Apply the StorageClass, PV & PVC
kubectl apply -f postgresql-pv.yaml
  • kubernetes.io/no-provisioner StorageClass does not have a dynamic provisioner, Kubernetes will not automatically create new Persistent Volumes when a Persistent Volume Claim is made. The Persistent Volumes must be created beforehand.

Verify the PVC, PV & StorageClass
#

Verify the status of the PVC is set to “Bound”:

# Verify the PVC is bound to the PV
kubectl get pvc -n postgres

# Shell output:
NAME                  STATUS   VOLUME          CAPACITY   ACCESS MODES   STORAGECLASS    AGE
postgresql-pv-claim   Bound    postgresql-pv   10Gi       RWO            postgresql-pv   9s

# List PV
kubectl get pv

# Shell output:
NAME            CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS   CLAIM                          STORAGECLASS    REASON   AGE
postgresql-pv   10Gi       RWO            Retain           Bound    postgres/postgresql-pv-claim   postgresql-pv            25s

# List StorageClass
kubectl get sc

# Shell output:
NAME            PROVISIONER                    RECLAIMPOLICY   VOLUMEBINDINGMODE   ALLOWVOLUMEEXPANSION   AGE
postgresql-pv   kubernetes.io/no-provisioner   Delete          Immediate           false                  34s

Install Helm
#

# Install Helm with script
curl -fsSL -o get_helm.sh https://raw.githubusercontent.com/helm/helm/main/scripts/get-helm-3 &&
chmod +x get_helm.sh &&
./get_helm.sh

# Verify the Helm installation
helm version

Add Helm Repository
#

# Add Bitnami Helm repository
helm repo add bitnami https://charts.bitnami.com/bitnami &&
helm repo update

Save & Adopt PostgreSQL Helm Values
#

# Save the PostgreSQL Helm values into a file
helm show values bitnami/postgresql > postgresql-values.yaml

# Adopt the values
vi postgresql-values.yaml

  persistence:
    enabled: true
    volumeName: "data"
    existingClaim: "postgresql-pv-claim" # Define the previously created PVC

volumePermissions:
  enabled: true # Set to true

Deploy PostgreSQL
#

# Install PostgreSQL
helm install postgres bitnami/postgresql -f postgresql-values.yaml \
  --namespace postgres

# Delete PostgrSQL
helm delete postgres --namespace postgres

# Shell output:
NAME: postgres
LAST DEPLOYED: Fri Aug 23 12:29:49 2024
NAMESPACE: postgres
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
CHART NAME: postgresql
CHART VERSION: 15.5.24
APP VERSION: 16.4.0

** Please be patient while the chart is being deployed **

PostgreSQL can be accessed via port 5432 on the following DNS names from within your cluster:

    postgres-postgresql.postgres.svc.cluster.local - Read/Write connection

To get the password for "postgres" run:

    export POSTGRES_PASSWORD=$(kubectl get secret --namespace postgres postgres-postgresql -o jsonpath="{.data.postgres-password}" | base64 -d)

To connect to your database run the following command:

    kubectl run postgres-postgresql-client --rm --tty -i --restart='Never' --namespace postgres --image docker.io/bitnami/postgresql:16.4.0-debian-12-r2 --env="PGPASSWORD=$POSTGRES_PASSWORD" \
      --command -- psql --host postgres-postgresql -U postgres -d postgres -p 5432

    > NOTE: If you access the container using bash, make sure that you execute "/opt/bitnami/scripts/postgresql/entrypoint.sh /bin/bash" in order to avoid the error "psql: local user with ID 1001} does not exist"

To connect to your database from outside the cluster execute the following commands:

    kubectl port-forward --namespace postgres svc/postgres-postgresql 5432:5432 &
    PGPASSWORD="$POSTGRES_PASSWORD" psql --host 127.0.0.1 -U postgres -d postgres -p 5432

WARNING: The configured password will be ignored on new installation in case when previous PostgreSQL release was deleted through the helm command. In that case, old PVC will have an old password, and setting it through helm won't take effect. Deleting persistent volumes (PVs) will solve the issue.

WARNING: There are "resources" sections in the chart not set. Using "resourcesPreset" is not recommended for production. For production installations, please set the following values according to your workload needs:
  - primary.resources
  - readReplicas.resources
  - volumePermissions.resources
+info https://kubernetes.io/docs/concepts/configuration/manage-resources-containers/

Verify NFS Share
#

Verify the PostgreSQL deployment is actually using the NFS share:

# List files & folders in the "data" directory
ls -la /srv/nfs/k8s_share/postgres/data/

# Shell output:
drwx------ 19 1001 1001 4096 Aug 23 12:30 .
drwxr-xr-x  3 1001 1001 4096 Aug 23 12:29 ..
drwx------  5 1001 1001 4096 Aug 23 12:29 base
drwx------  2 1001 1001 4096 Aug 23 12:30 global
drwx------  2 1001 1001 4096 Aug 23 12:29 pg_commit_ts
drwx------  2 1001 1001 4096 Aug 23 12:29 pg_dynshmem
-rw-------  1 1001 1001 2640 Aug 23 12:29 pg_ident.conf
drwx------  4 1001 1001 4096 Aug 23 12:30 pg_logical
drwx------  4 1001 1001 4096 Aug 23 12:29 pg_multixact
drwx------  2 1001 1001 4096 Aug 23 12:29 pg_notify
drwx------  2 1001 1001 4096 Aug 23 12:29 pg_replslot
drwx------  2 1001 1001 4096 Aug 23 12:29 pg_serial
drwx------  2 1001 1001 4096 Aug 23 12:29 pg_snapshots
drwx------  2 1001 1001 4096 Aug 23 12:30 pg_stat
drwx------  2 1001 1001 4096 Aug 23 12:29 pg_stat_tmp
drwx------  2 1001 1001 4096 Aug 23 12:29 pg_subtrans
drwx------  2 1001 1001 4096 Aug 23 12:29 pg_tblspc
drwx------  2 1001 1001 4096 Aug 23 12:29 pg_twophase
-rw-------  1 1001 1001    3 Aug 23 12:29 PG_VERSION
drwx------  3 1001 1001 4096 Aug 23 12:29 pg_wal
drwx------  2 1001 1001 4096 Aug 23 12:29 pg_xact
-rw-------  1 1001 1001   88 Aug 23 12:29 postgresql.auto.conf
-rw-------  1 1001 1001  249 Aug 23 12:30 postmaster.opts
-rw-------  1 1001 1001   79 Aug 23 12:30 postmaster.pid

Verify PostgreSQL Deployment
#

# List resources in the "postgres" namespace
kubectl get all -n postgres

# Shell output
NAME                        READY   STATUS    RESTARTS   AGE
pod/postgres-postgresql-0   1/1     Running   0          72s

NAME                             TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)    AGE
service/postgres-postgresql      ClusterIP   10.98.181.147   <none>        5432/TCP   72s
service/postgres-postgresql-hl   ClusterIP   None            <none>        5432/TCP   72s

NAME                                   READY   AGE
statefulset.apps/postgres-postgresql   1/1     72s



Access PostgreSQL Server
#

Export PostgreSQL PW
#

# Export the PostgreSQL pw as environment variable
export POSTGRES_PASSWORD=$(kubectl get secret --namespace postgres postgres-postgresql -o jsonpath="{.data.postgres-password}" | base64 -d)

# Verify the env variable
echo $POSTGRES_PASSWORD

Connect to PostgreSQL Server
#

# Connect to the PostgreSQL server: From within the Kubernetes cluster
kubectl run postgres-postgresql-client --rm --tty -i --restart='Never' --namespace postgres --image docker.io/bitnami/postgresql:16.4.0-debian-12-r1 --env="PGPASSWORD=$POSTGRES_PASSWORD" --command -- psql -h postgres-postgresql -U postgres

# Shell output:
If you don't see a command prompt, try pressing enter. # Press [enter]

Optional: Create a test database

# Create an example database
CREATE DATABASE exampledb;

# List databases
\l

# Shell output:
   Name    |  Owner   | Encoding | Locale Provider |   Collate   |    Ctype    | ICU Locale | ICU Rules |   Access privileges
-----------+----------+----------+-----------------+-------------+-------------+------------+-----------+-----------------------
 exampledb | postgres | UTF8     | libc            | en_US.UTF-8 | en_US.UTF-8 |            |           |
 postgres  | postgres | UTF8     | libc            | en_US.UTF-8 | en_US.UTF-8 |            |           |
 template0 | postgres | UTF8     | libc            | en_US.UTF-8 | en_US.UTF-8 |            |           | =c/postgres          +
           |          |          |                 |             |             |            |           | postgres=CTc/postgres
 template1 | postgres | UTF8     | libc            | en_US.UTF-8 | en_US.UTF-8 |            |           | =c/postgres          +
           |          |          |                 |             |             |            |           | postgres=CTc/postgres

# Exit the PostgreSQL shell
\q



Kube-Prometheus-Stack Installation
#

Create Namespace
#

# Create a namespace for the Preometheus stack
kubectl create ns monitoring

Helm Repository
#

# Add Helm repository
helm repo add prometheus-community https://prometheus-community.github.io/helm-charts &&
helm repo update

Install Kube Prometheus Stack
#

# Install Kube Prometheus Stack
helm upgrade --install kube-prometheus-stack prometheus-community/kube-prometheus-stack \
  -n monitoring

# Shell output:
NAME: kube-prometheus-stack
LAST DEPLOYED: Fri Aug 23 12:38:09 2024
NAMESPACE: monitoring
STATUS: deployed
REVISION: 1
NOTES:
kube-prometheus-stack has been installed. Check its status by running:
  kubectl --namespace monitoring get pods -l "release=kube-prometheus-stack"

Visit https://github.com/prometheus-operator/kube-prometheus for instructions on how to create & configure Alertmanager and Prometheus instances using the Operator.

Verify Deployment Resources
#

# List pods in the "monitoring" namespace
kubectl get pods -n monitoring

# Shell output:
NAME                                                        READY   STATUS    RESTARTS   AGE
alertmanager-kube-prometheus-stack-alertmanager-0           2/2     Running   0          2m5s
kube-prometheus-stack-grafana-6d44b964f9-wp4fh              3/3     Running   0          2m19s
kube-prometheus-stack-kube-state-metrics-7db65fb76b-zsg2p   1/1     Running   0          2m19s
kube-prometheus-stack-operator-6b5b8b4dcd-r4bhk             1/1     Running   0          2m19s
kube-prometheus-stack-prometheus-node-exporter-8kts5        1/1     Running   0          2m19s
kube-prometheus-stack-prometheus-node-exporter-dhxgs        1/1     Running   0          2m19s
kube-prometheus-stack-prometheus-node-exporter-sq486        1/1     Running   0          2m19s
prometheus-kube-prometheus-stack-prometheus-0               2/2     Running   0          2m5s

# List services in the "monitoring" namespace
kubectl get svc -n monitoring

# Shell output:
NAME                                             TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)                      AGE
alertmanager-operated                            ClusterIP   None             <none>        9093/TCP,9094/TCP,9094/UDP   2m31s
kube-prometheus-stack-alertmanager               ClusterIP   10.107.146.156   <none>        9093/TCP,8080/TCP            2m45s
kube-prometheus-stack-grafana                    ClusterIP   10.109.166.155   <none>        80/TCP                       2m45s
kube-prometheus-stack-kube-state-metrics         ClusterIP   10.109.94.161    <none>        8080/TCP                     2m45s
kube-prometheus-stack-operator                   ClusterIP   10.99.186.8      <none>        443/TCP                      2m45s
kube-prometheus-stack-prometheus                 ClusterIP   10.108.3.85      <none>        9090/TCP,8080/TCP            2m45s
kube-prometheus-stack-prometheus-node-exporter   ClusterIP   10.102.43.220    <none>        9100/TCP                     2m45s
prometheus-operated                              ClusterIP   None             <none>        9090/TCP                     2m31s

Optional: Create Ingress Resource
#

Kubernetes TLS Certificate Secret
#

Create a Kubernetes secret for the TLS certificate. I’m using an Let’s Encrypt wildcard certificate in this tutorial.

# Create a Kubernetes secret for the TLS certificate
kubectl create secret tls prometheus-tls --cert=./fullchain.pem --key=./privkey.pem -n monitoring

# Verify the secret
kubectl get secret -n monitoring

# Shell output:
NAME                                                           TYPE                 DATA   AGE
...
prometheus-tls                                                 kubernetes.io/tls    2      7s

# List secret details
kubectl describe secret prometheus-tls -n monitoring

# Shell output:
...
Data
====
tls.crt:  3574 bytes
tls.key:  1704 bytes

Create Nginx Ingres Resource
#

# Create a manifest for the Nginx Ingress
vi prometheus-ingress.yml

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: prometheus-ingress
  namespace: monitoring
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: /
    nginx.ingress.kubernetes.io/ssl-redirect: "true"
spec:
  ingressClassName: nginx
  rules:
    - host: prometheus.jklug.work  # Define domain name
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: kube-prometheus-stack-prometheus
                port:
                  number: 9090
  tls:
    - hosts:
        - prometheus.jklug.work  # Define domain name
      secretName: prometheus-tls  # Define secret name

# Apply the Ingress resource
kubectl apply -f prometheus-ingress.yml

Verify Ingres Resource
#

# List ingress resources in "monitoring" namespace
kubectl get ingress -n monitoring

# Shell output: (Wait till Ingress gets an address)
NAME                 CLASS   HOSTS                   ADDRESS          PORTS     AGE
prometheus-ingress   nginx   prometheus.jklug.work   192.168.30.200   80, 443   2m21s

# List Nginx Ingress details
kubectl describe ingress prometheus-ingress -n monitoring

Nginx Ingress Troubleshooting
#

# List Nginx Ingress Pods
kubectl get pods -n ingress-nginx

# Shell output:
NAME                                        READY   STATUS    RESTARTS      AGE
ingress-nginx-controller-6dfcb8658d-94vg6   1/1     Running   1 (80m ago)   48d
ingress-nginx-controller-6dfcb8658d-hdtkx   1/1     Running   1 (80m ago)   48d
ingress-nginx-controller-6dfcb8658d-zl5dd   1/1     Running   1 (80m ago)   48d

# Check the Nginx Ingress logs
kubectl logs ingress-nginx-controller-6dfcb8658d-94vg6 -n ingress-nginx
kubectl logs ingress-nginx-controller-6dfcb8658d-hdtkx -n ingress-nginx
kubectl logs ingress-nginx-controller-6dfcb8658d-zl5dd -n ingress-nginx

Create DNS Entry
#

# Create a DNS entry for the Prometheus Ingress
192.168.30.200 prometheus.jklug.work

Access Prometheus Dashboard
#

# Open the Prometheus Dashboard
https://prometheus.jklug.work/



PostgreSQL Monitoring
#

Adopt Values
#

# Adopt the PostgreSQL Helm values
vi postgresql-values.yaml

metrics:
  enabled: true  # Set to "true"

  serviceMonitor:
    enabled: true # Set to "true"
    namespace: "monitoring" # Define Prometheus namespace

    labels: # Remove {}
      release: kube-prometheus-stack # Add the following label

Upgrade PostgreSQL Installation
#

# Upgrade the PostgreSQL installation
helm upgrade postgres bitnami/postgresql -f postgresql-values.yaml \
  --namespace postgres

Verify PostgreSQL Exporter
#

Verify the PostgreSQL metrics service:

# List services in "postgres" namespace
kubectl get svc -n postgres

# Shell output:
NAME                          TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)    AGE
postgres-postgresql           ClusterIP   10.98.181.147   <none>        5432/TCP   54m
postgres-postgresql-hl        ClusterIP   None            <none>        5432/TCP   54m
postgres-postgresql-metrics   ClusterIP   10.96.118.62    <none>        9187/TCP   25s # Check

Verify that metrics are exposed:

# Port-forward the exporter service
kubectl port-forward svc/postgres-postgresql-metrics 9187:9187 -n postgres

# Verify that metrics are being exposed (open in new terminal)
curl http://localhost:9187/metrics

Verify Prometheus ServiceMonitor
#

# Verify the ServiceMonitor
kubectl get servicemonitors -n monitoring

# Shell output:
NAME                                             AGE
kube-prometheus-stack-alertmanager               47m
kube-prometheus-stack-apiserver                  47m
kube-prometheus-stack-coredns                    47m
kube-prometheus-stack-grafana                    47m
kube-prometheus-stack-kube-controller-manager    47m
kube-prometheus-stack-kube-etcd                  47m
kube-prometheus-stack-kube-proxy                 47m
kube-prometheus-stack-kube-scheduler             47m
kube-prometheus-stack-kube-state-metrics         47m
kube-prometheus-stack-kubelet                    47m
kube-prometheus-stack-operator                   47m
kube-prometheus-stack-prometheus                 47m
kube-prometheus-stack-prometheus-node-exporter   47m
postgres-postgresql                              102s # Check

# Verify the ServiceMonitor configuration
kubectl describe servicemonitor postgres-postgresql -n monitoring

# Shell output:
Name:         postgres-postgresql
Namespace:    monitoring
Labels:       app.kubernetes.io/component=metrics
              app.kubernetes.io/instance=postgres
              app.kubernetes.io/managed-by=Helm
              app.kubernetes.io/name=postgresql
              app.kubernetes.io/version=16.4.0
              helm.sh/chart=postgresql-15.5.24
              release=kube-prometheus-stack
Annotations:  meta.helm.sh/release-name: postgres
              meta.helm.sh/release-namespace: postgres
API Version:  monitoring.coreos.com/v1
Kind:         ServiceMonitor
Metadata:
  Creation Timestamp:  2024-08-23T13:23:43Z
  Generation:          1
  Resource Version:    15552
  UID:                 9cffce9f-f23e-44fe-b07c-b7b4e86c7510
Spec:
  Endpoints:
    Port:  http-metrics
  Namespace Selector:
    Match Names:
      postgres
  Selector:
    Match Labels:
      app.kubernetes.io/component:  metrics
      app.kubernetes.io/instance:   postgres
      app.kubernetes.io/name:       postgresql
Events:                             <none>



Test Prometheus
#

Access Prometheus Dashboard
#

# Open the Prometheus Dashboard
https://prometheus.jklug.work/

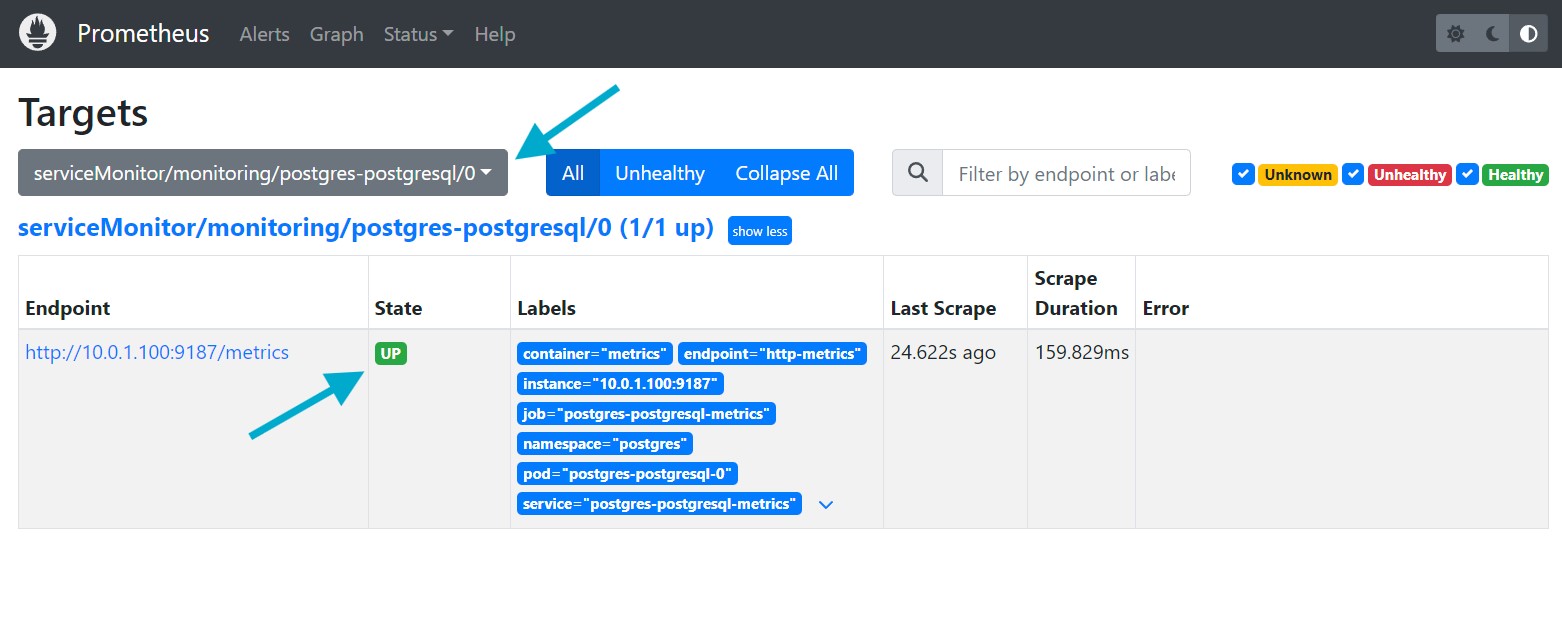

Verify ServiceMonitor Target
#

  • Go to: “Status” > “Targets”

  • Select serviceMonitor/monitoring/postgres-postgresql/0 from the dropdown menu

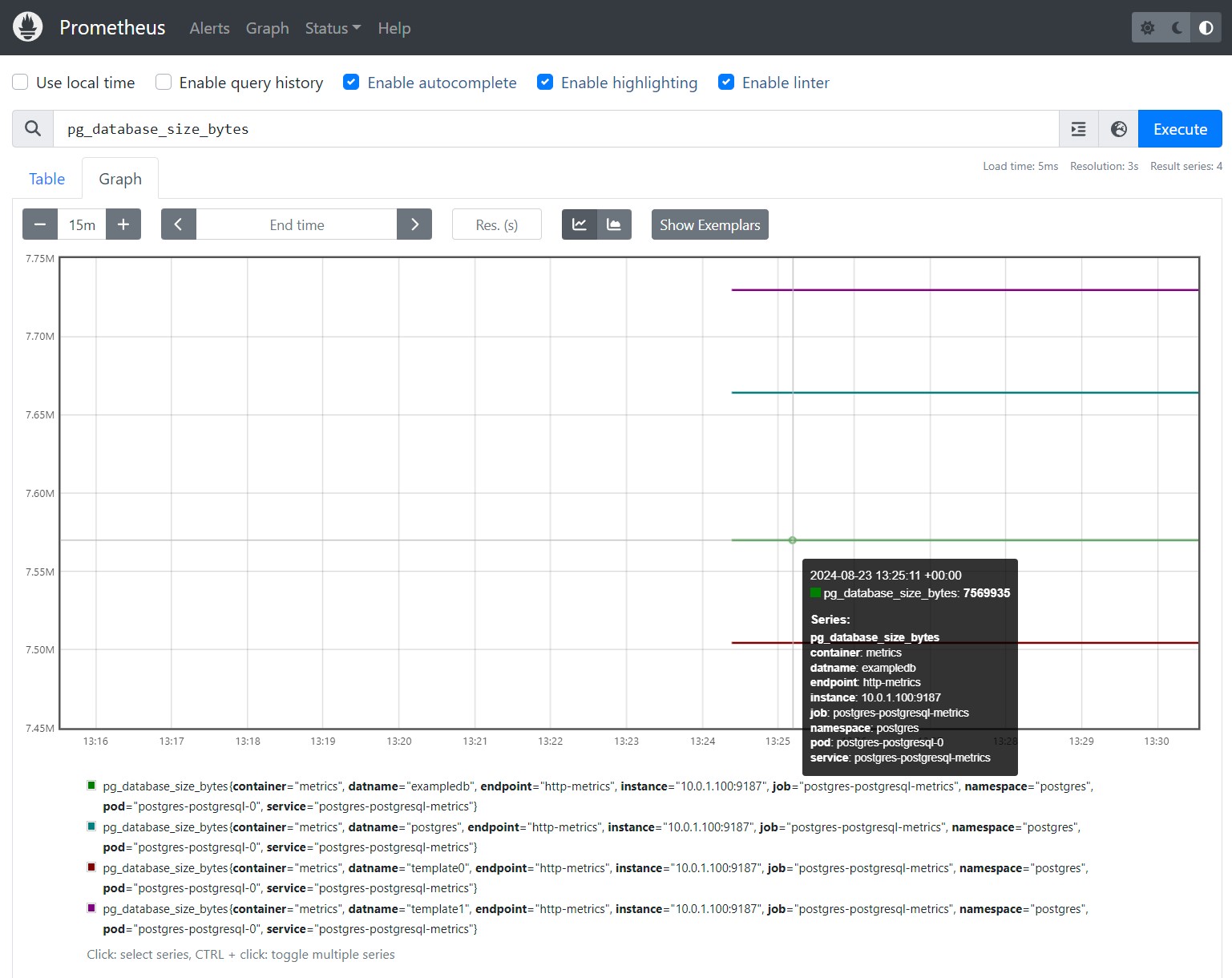

PostgreSQL Query Example
#

  • Go to: “Graph”

  • Execute a query for the PostgreSQL database size: pg_database_size_bytes
