phpMyAdmin - Docker Compose, Nginx Reverse Proxy. Management Interface for MySQL & MariaDB

617 words·
phpMyAdmin MySQL MariaDB Docker-Compose Nginx
Table of Contents

Prerequisites
#

Folder Structure
#

# Create folder structure
sudo mkdir -p /opt/phpmyadmin && cd /opt/phpmyadmin

With Predefined Server (HTTP)
#

Docker Network
#

# Create external Docker network
sudo docker network create phpmyadmin

SQL Server Example
#

# Create folder structure
sudo mkdir -p /opt/mysql && cd /opt/mysql

# Create Docker Compose file
sudo vi docker-compose.yml

version: '3.9'
services:

  db-service:
    image: mariadb:latest
    environment:
      MYSQL_ROOT_PASSWORD: sql-root-pw
    volumes:
      - ./db_data:/var/lib/mysql
    networks:
      - default
      - phpmyadmin
    restart: unless-stopped

networks:
  phpmyadmin:
    external: true

# Create / start Docker stack
sudo docker compose up -d

phpmyadmin
#

Environment File
#

# Create environment file
sudo vi .env

PMA_HOST=db-service
PMA_PORT=3306

PMA_USER=root
PMA_PASSWORD=sql-root-pw

Note: Remove the PMA_USER variables PMA_PASSWORD to define the DB user & pw via the webinterface.

Docker Compose
#

# Create Docker Compose file
sudo vi docker-compose.yml

version: '3.9'
services:

  phpmyadmin:
    image: phpmyadmin:latest
    ports:
      - 8080:80
    env_file:
      - .env
    networks:
      - phpmyadmin
    restart: unless-stopped

networks:
  phpmyadmin:
    external: true

# Create / start Docker stack
sudo docker compose up -d

Webinterface
#

# Open webinterface
IP:8080

With Predefined Server (HTTPS)
#

Docker Network
#

# Create external Docker network
sudo docker network create phpmyadmin
sudo docker network create nginx

SQL Server Example
#

# Create folder structure
sudo mkdir -p /opt/mysql && cd /opt/mysql

# Create Docker Compose file
sudo vi docker-compose.yml

version: '3.9'
services:

  db-service:
    image: mariadb:latest
    environment:
      MYSQL_ROOT_PASSWORD: sql-root-pw
    volumes:
      - ./db_data:/var/lib/mysql
    networks:
      - default
      - phpmyadmin
    restart: unless-stopped

networks:
  phpmyadmin:
    external: true

# Create / start Docker stack
sudo docker compose up -d

phpmyadmin
#

Environment File
#

# Create environment file
sudo vi .env

PMA_ABSOLUTE_URI="https://phpmyadmin.jklug.work"

PMA_HOST=db-service
PMA_PORT=3306

PMA_USER=root
PMA_PASSWORD=sql-root-pw

Note: Remove the PMA_USER variables PMA_PASSWORD to define the DB user & pw via the webinterface.

Docker Compose
#

# Create Docker Compose file
sudo vi docker-compose.yml

version: '3.9'
services:

  phpmyadmin:
    image: phpmyadmin:latest
    ports:
      - 8080:80
    env_file:
      - .env
    networks:
      - phpmyadmin
      - nginx
    restart: unless-stopped

  nginx:
    image: nginx:latest
    ports:
      - "80:80"
      - "443:443"
    volumes:
      - ./default.conf:/etc/nginx/conf.d/default.conf
      - /etc/letsencrypt:/etc/letsencrypt
    networks:
      - nginx
    restart: unless-stopped

networks:
  phpmyadmin:
    external: true
  nginx:
    external: true

Nginx Default Configuration
#

# Create Nginx default configuration file
sudo vi default.conf

# default.conf
server {
    listen 80;
    server_name phpmyadmin.jklug.work;

    return 301 https://$host$request_uri;
}

server {
    listen 443 ssl;
    server_name phpmyadmin.jklug.work;

    ssl_certificate         /etc/letsencrypt/live/phpmyadmin.jklug.work/fullchain.pem;
    ssl_certificate_key     /etc/letsencrypt/live/phpmyadmin.jklug.work/privkey.pem;

    location / {
        proxy_pass http://phpmyadmin:80;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
    }
}

# Create / start Docker stack
sudo docker compose up -d

Webinterface
#

# Open the webinterface
phpmyadmin.jklug.wor

With Arbitrary Server (HTTP)
#

Docker Compose
#

# Create Docker Compose file
sudo vi docker-compose.yml

version: '3.9'
services:

  phpmyadmin:
    image: phpmyadmin:latest
    ports:
      - 8080:80
    environment:
      - PMA_ARBITRARY=1
    networks:
      - default
    restart: unless-stopped

# Create / start Docker stack
sudo docker compose up -d

Webinterface
#

# Open webinterface
IP:8080

With Arbitrary Server (HTTPS)
#

Docker Network
#

# Create external Docker network
sudo docker network create nginx

Docker Compose
#

# Create Docker Compose file
sudo vi docker-compose.yml

version: '3.9'
services:

  phpmyadmin:
    image: phpmyadmin:latest
    ports:
      - "8080:80"
    environment:
      - PMA_ARBITRARY=1
    networks:
      - default
      - nginx
    restart: unless-stopped

  nginx:
    image: nginx:latest
    ports:
      - "80:80"
      - "443:443"
    volumes:
      - ./default.conf:/etc/nginx/conf.d/default.conf
      - /etc/letsencrypt:/etc/letsencrypt
    networks:
      - nginx
    restart: unless-stopped

networks:
  nginx:
    external: true

Nginx Default Configuration
#

# Create Nginx default configuration file
sudo vi default.conf

# default.conf
server {
    listen 80;
    server_name phpmyadmin.jklug.work;

    return 301 https://$host$request_uri;
}

server {
    listen 443 ssl;
    server_name phpmyadmin.jklug.work;

    ssl_certificate         /etc/letsencrypt/live/phpmyadmin.jklug.work/fullchain.pem;
    ssl_certificate_key     /etc/letsencrypt/live/phpmyadmin.jklug.work/privkey.pem;

    location / {
        proxy_pass http://phpmyadmin:80;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
    }
}

# Create / start Docker stack
sudo docker compose up -d

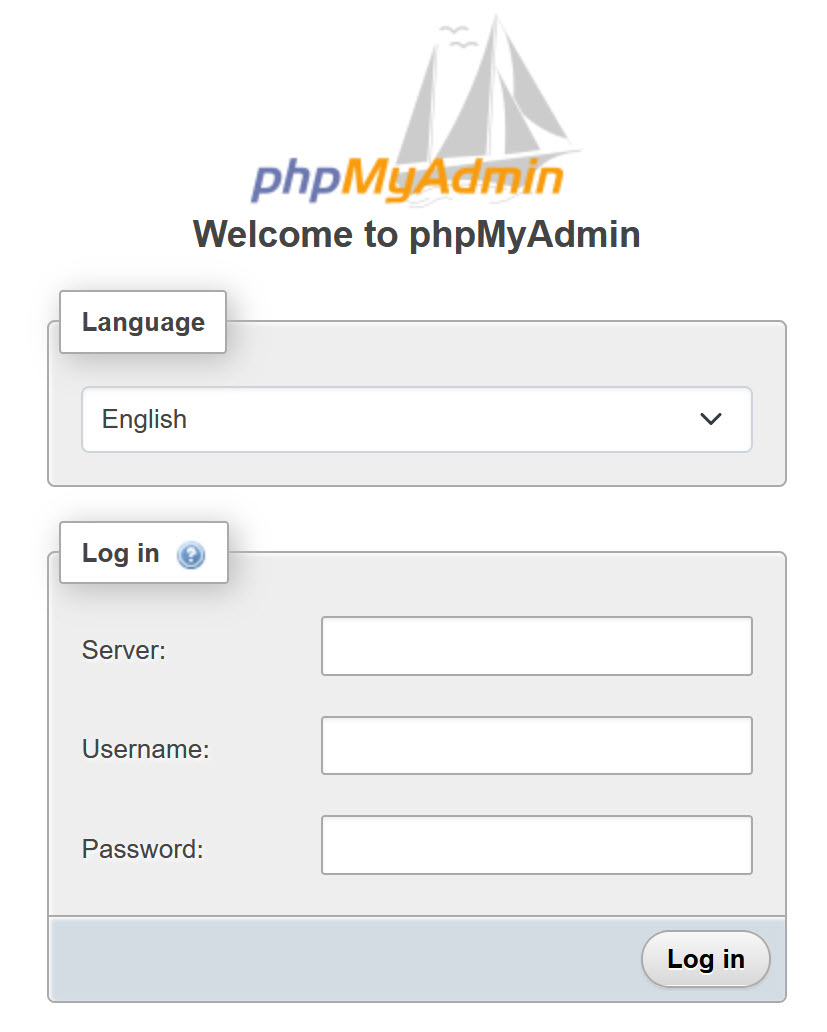

Webinterface
#

# Open the webinterface
phpmyadmin.jklug.work
  • Connect to MySQL / MariaDB server

Links #

# DockerHub
https://hub.docker.com/_/phpmyadmin
