Overview
#

In this tutorial I’m deploying a multi node OpenShift cluster based on VMware vSphere, with the following details:

192.168.70.90 # master-01 (16 GB RAM, 8 CPU Cores, 120 GB storage)
192.168.70.91 # master-02 (16 GB RAM, 8 CPU Cores, 120 GB storage)
192.168.70.92 # master-03 (16 GB RAM, 8 CPU Cores, 120 GB storage)
192.168.70.93 # worker-01 (8 GB RAM, 4 CPU Cores, 130 GB storage)
192.168.70.94 # worker-02 (8 GB RAM, 4 CPU Cores, 130 GB storage)

192.168.70.150 # Kubernetes API
192.168.70.151 # Ingress

I’m using the “Interactive Installer” and deploy the VM in the vSphere subnet 192.168.70.0/24 with static IPv4 network configuration.


Deploy OpenShift Cluster
#

OpenShift Webconsole
#

Installation Pt. 1
#

Open the OpenShift webconsole: https://console.redhat.com/

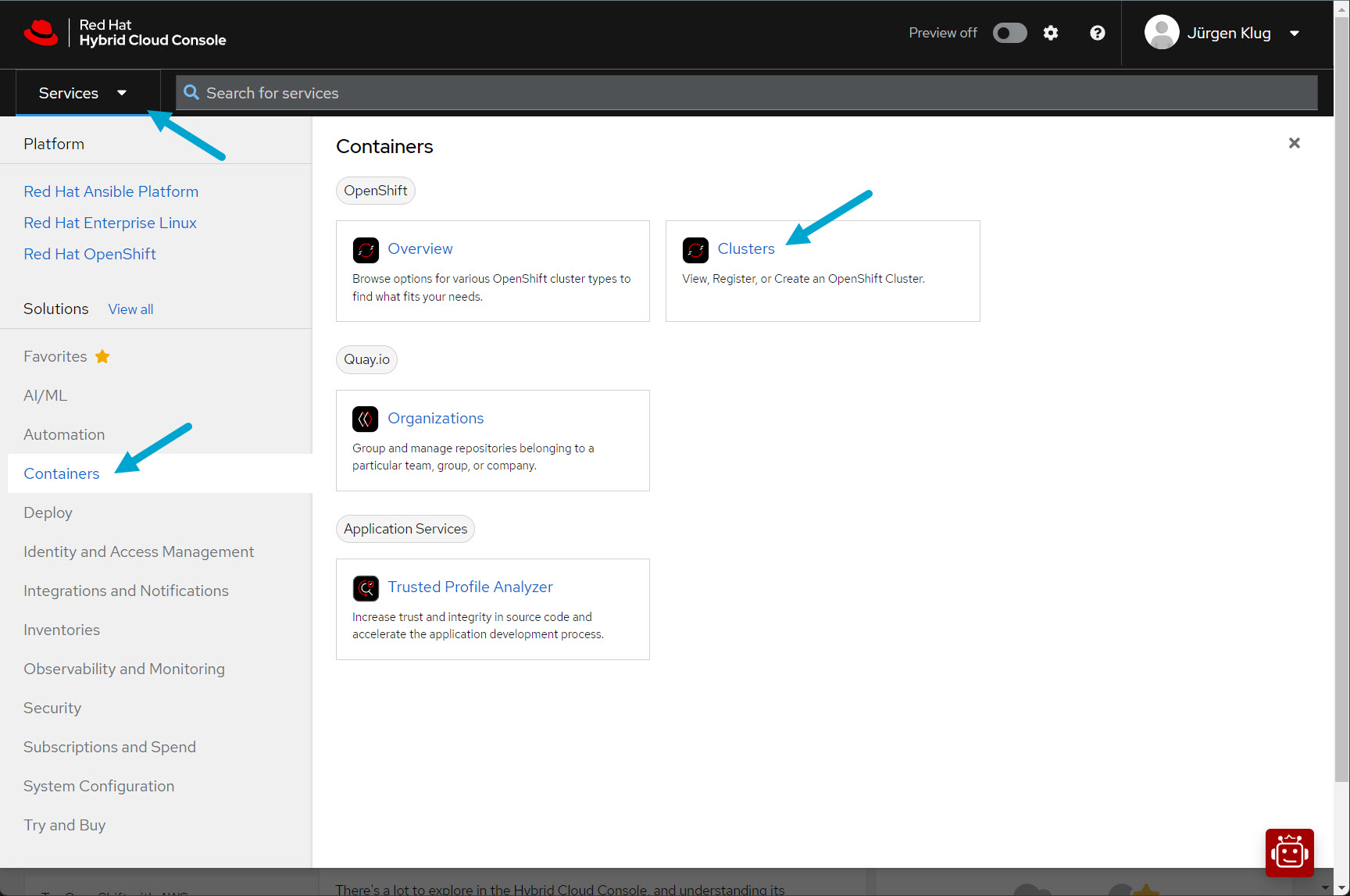

  • Go to: “Services” > “Containers”

  • Click (Openshift) “Clusters”

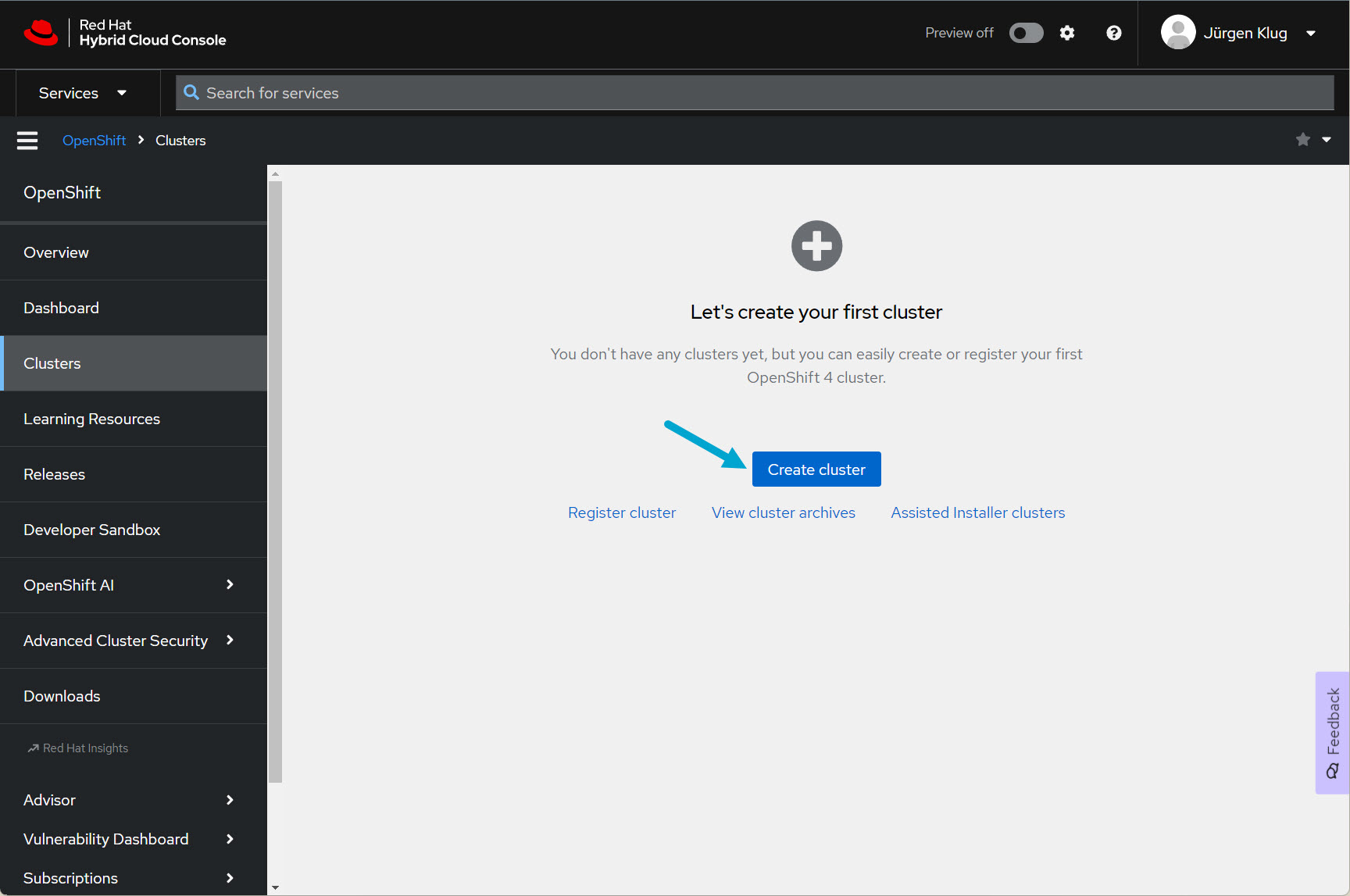

  • Click “Create cluster”

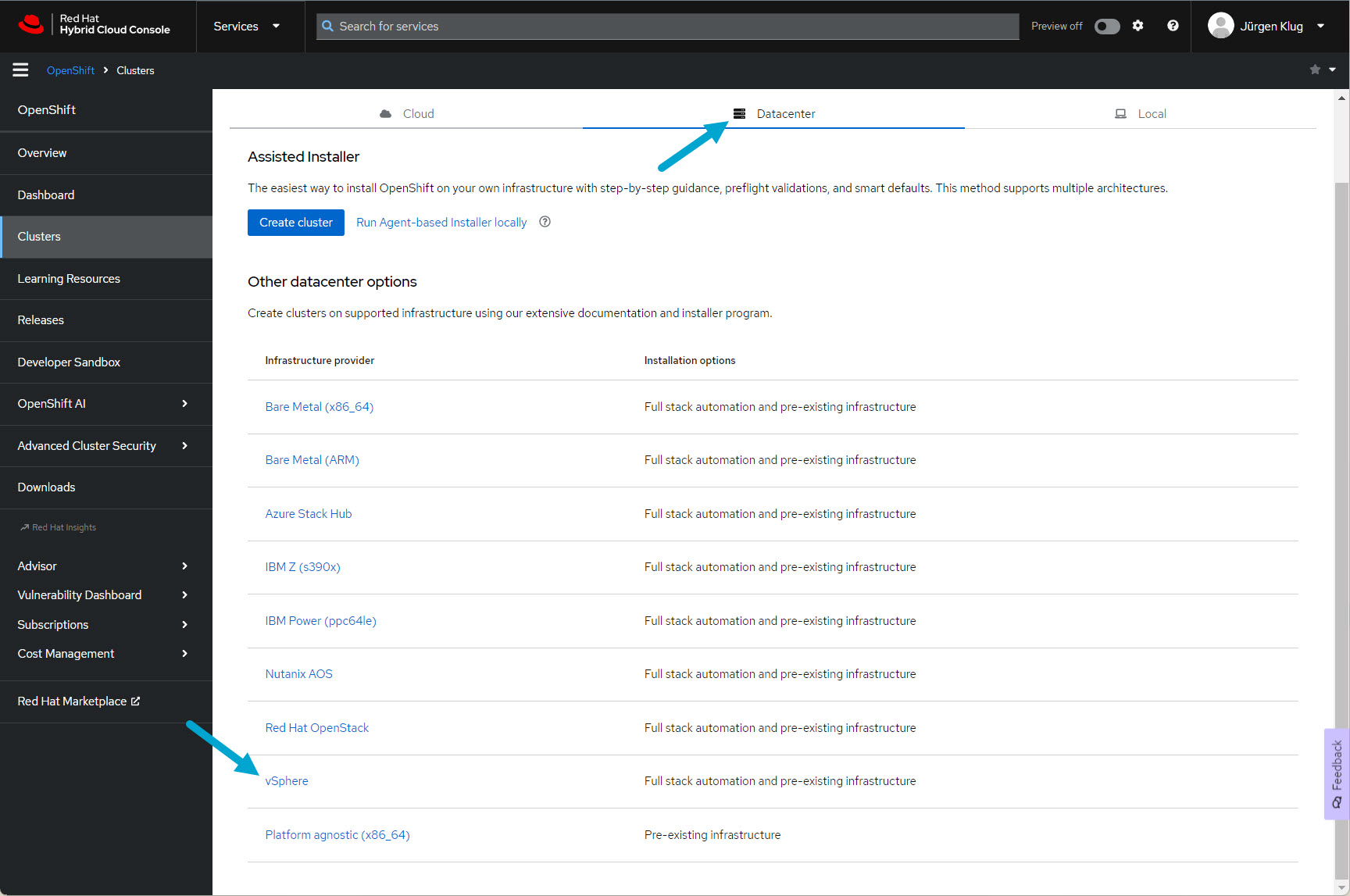

  • Select “Datacenter” / “vSphere”

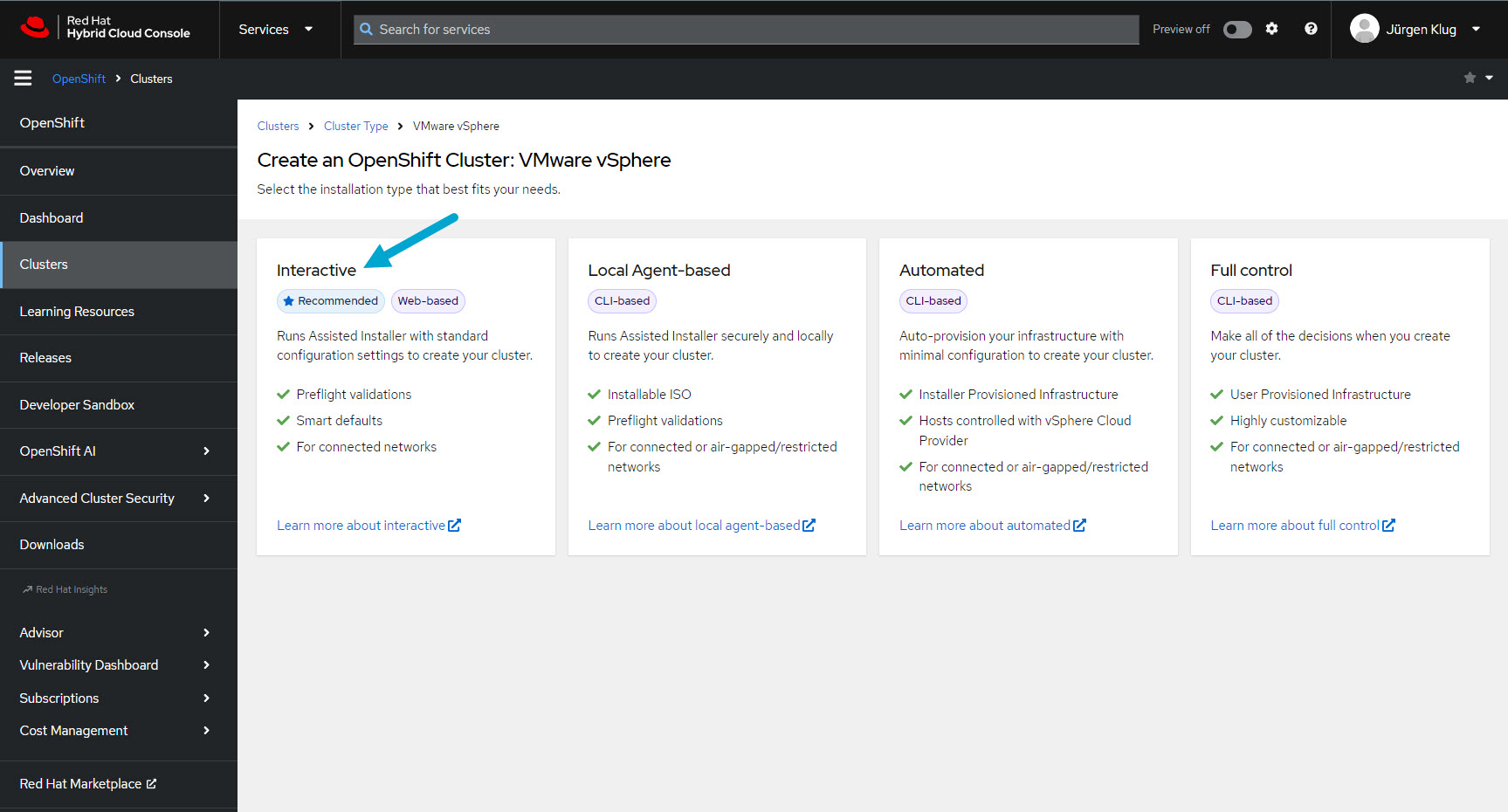

  • Select “Interactive”

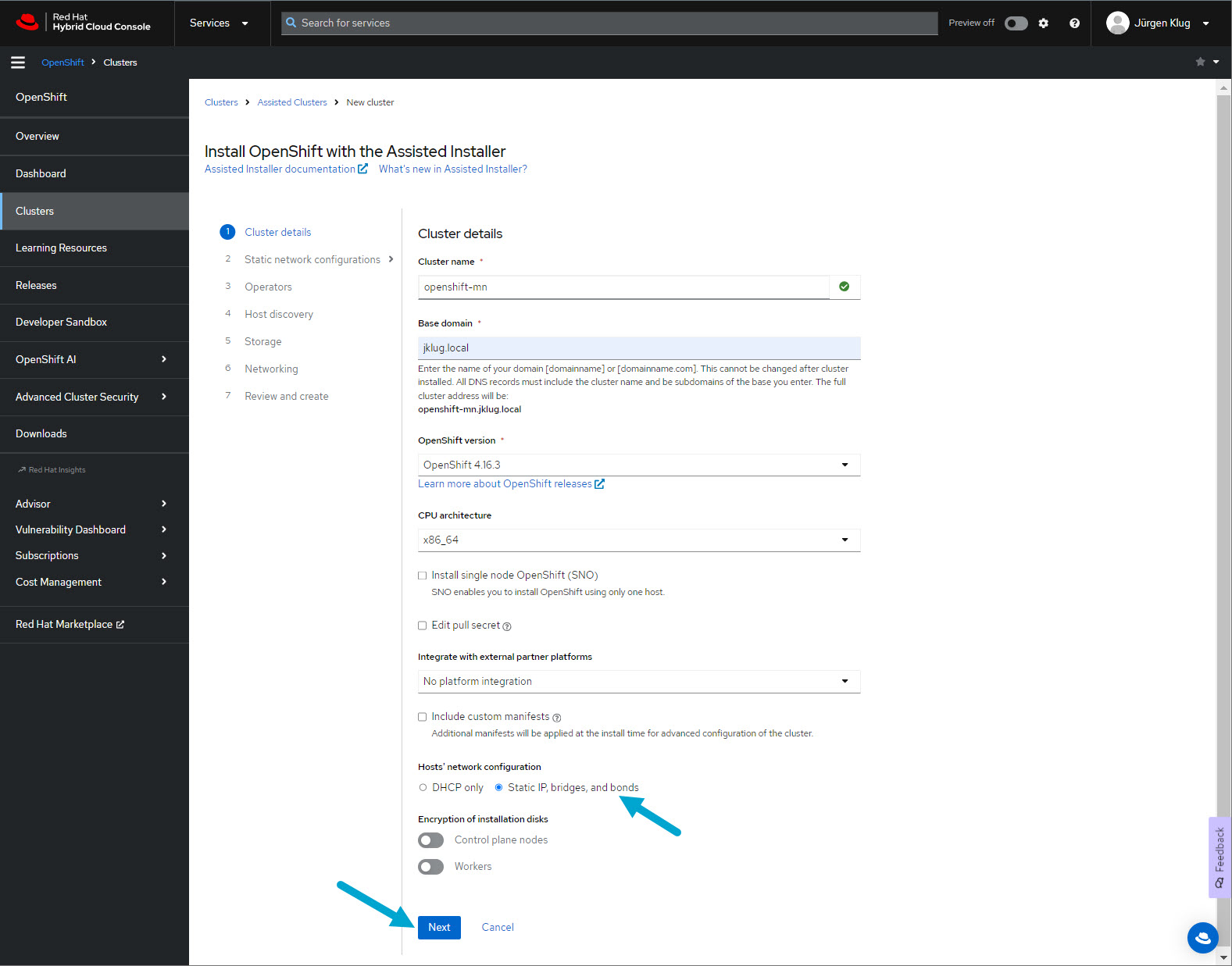

  • Define a cluster name, like openshift-mn

  • Define a base domain, like jklug.local

  • Define the OpenShift version “OpenShift 4.16.3”

  • Set CPU architecture to “x86_64”

  • Set “Host’s network configuration” to “Static IP, bridges, and bonds”

  • Click “Next”

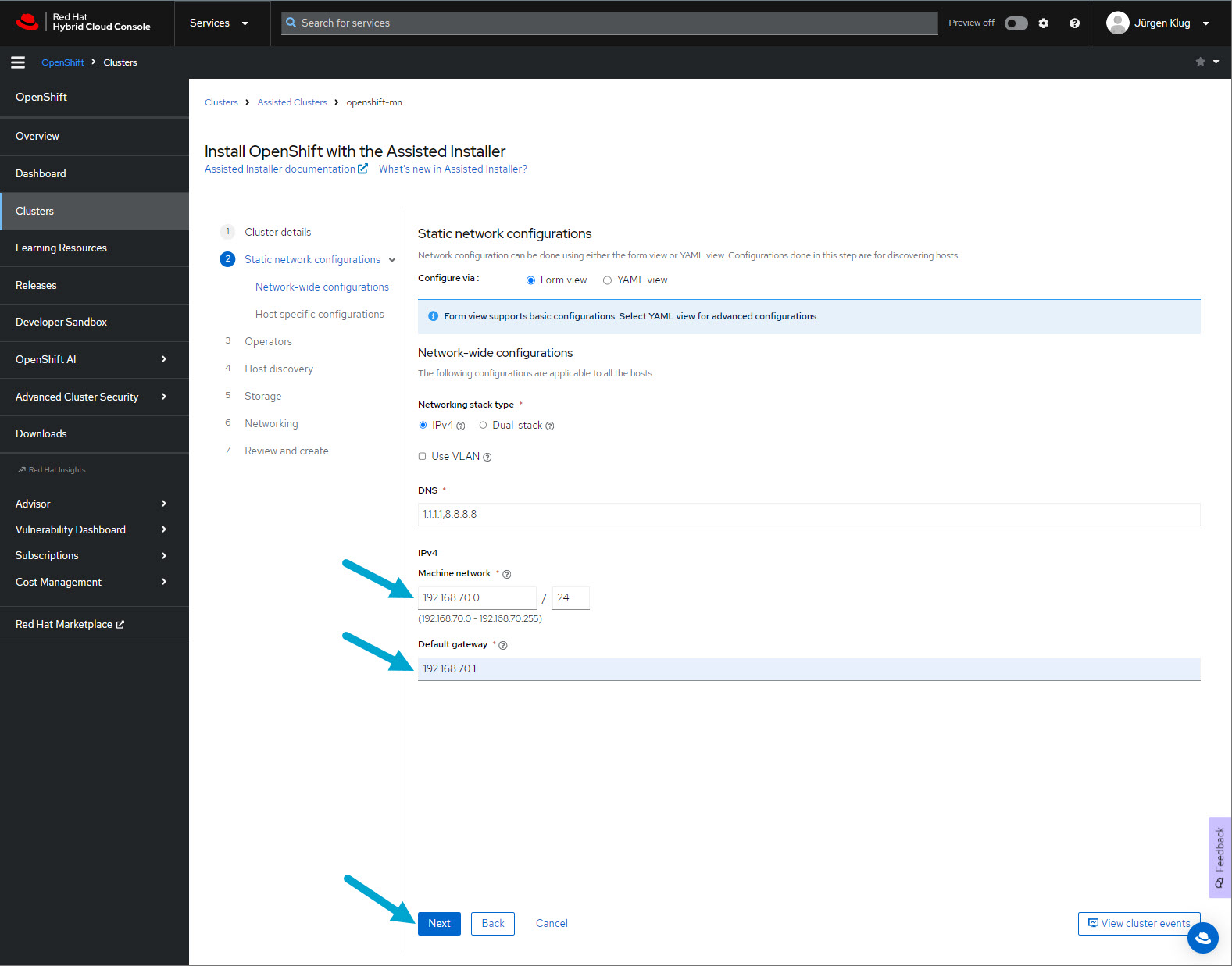

  • Select “Networking stack type” x “IPv4”

  • Define DNS servers, for example 1.1.1.1,8.8.8.8

  • Define a subnet, for example 192.168.70.0/24

  • Define a default gateway, for example 192.168.70.1

  • Click “Next”


vSphere
#

Create VMs
#

  • Define VM name

  • Select compute resource (ESXi node)

  • Select storage

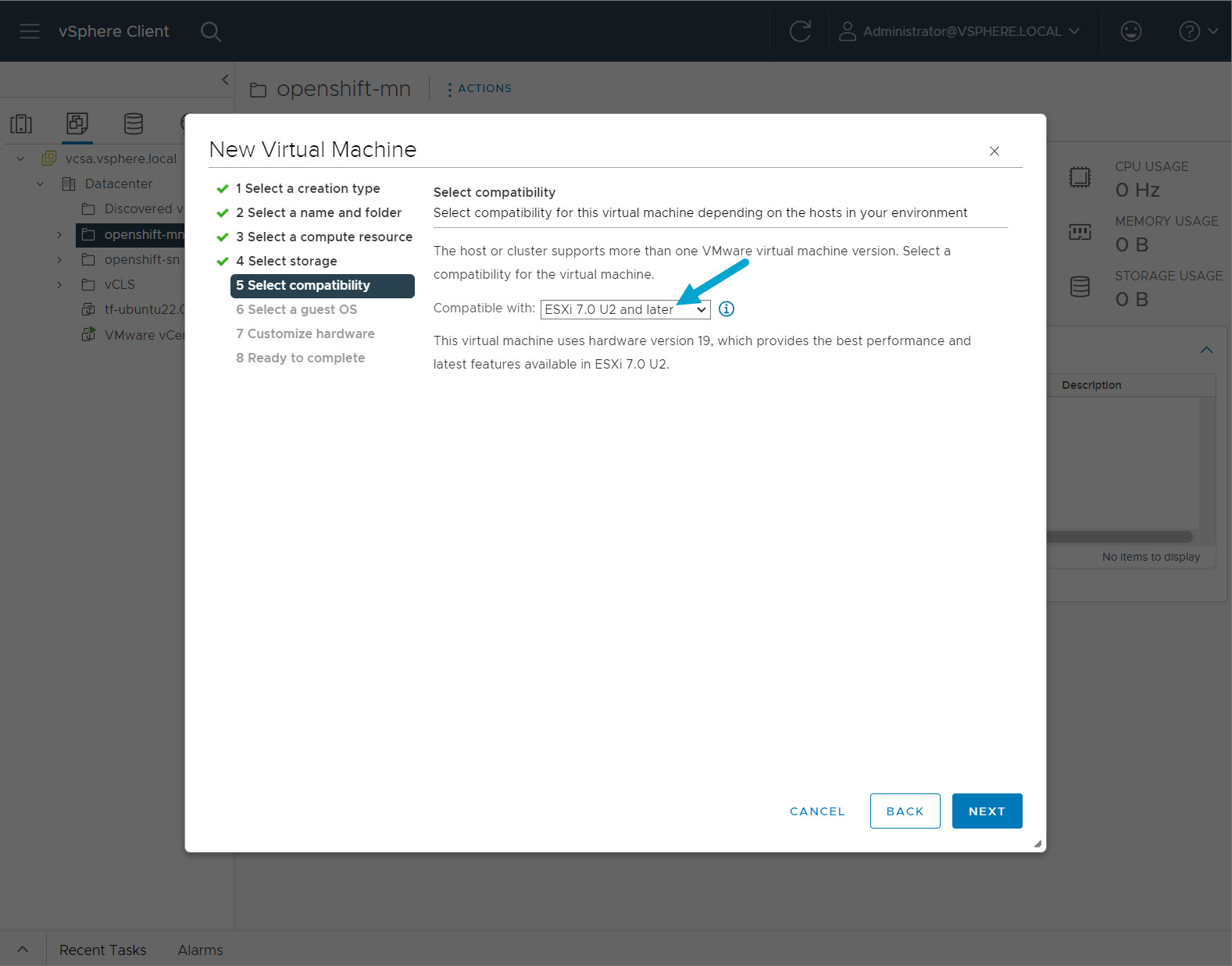

  • Select “Compatible with” “ESXi 7.0 U2 and later”

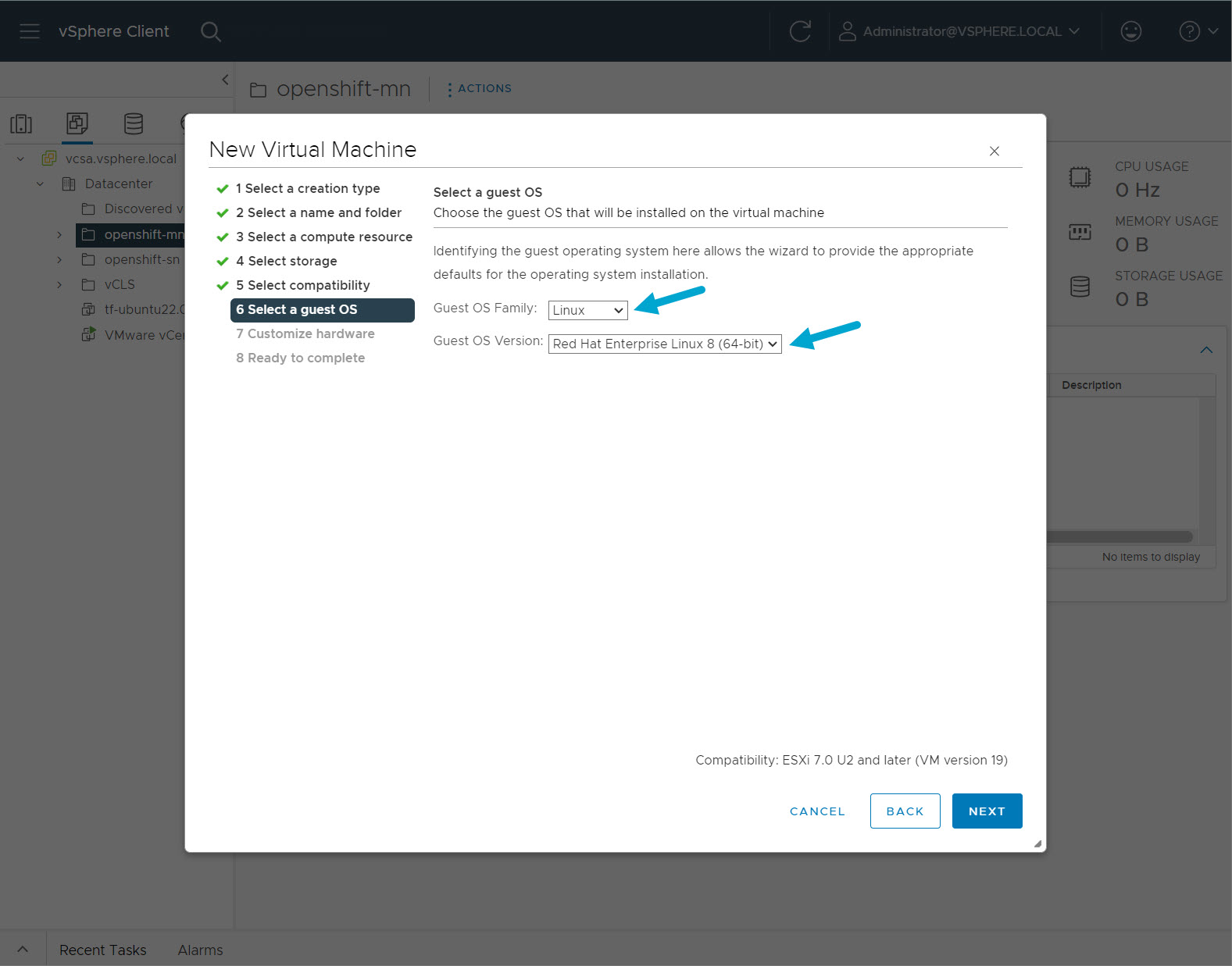

  • Select “Guest OS Family” x “Linux”

  • Select “Guest OS Version” x “Red Hat Enterprise Linux 8 (64-bit)”

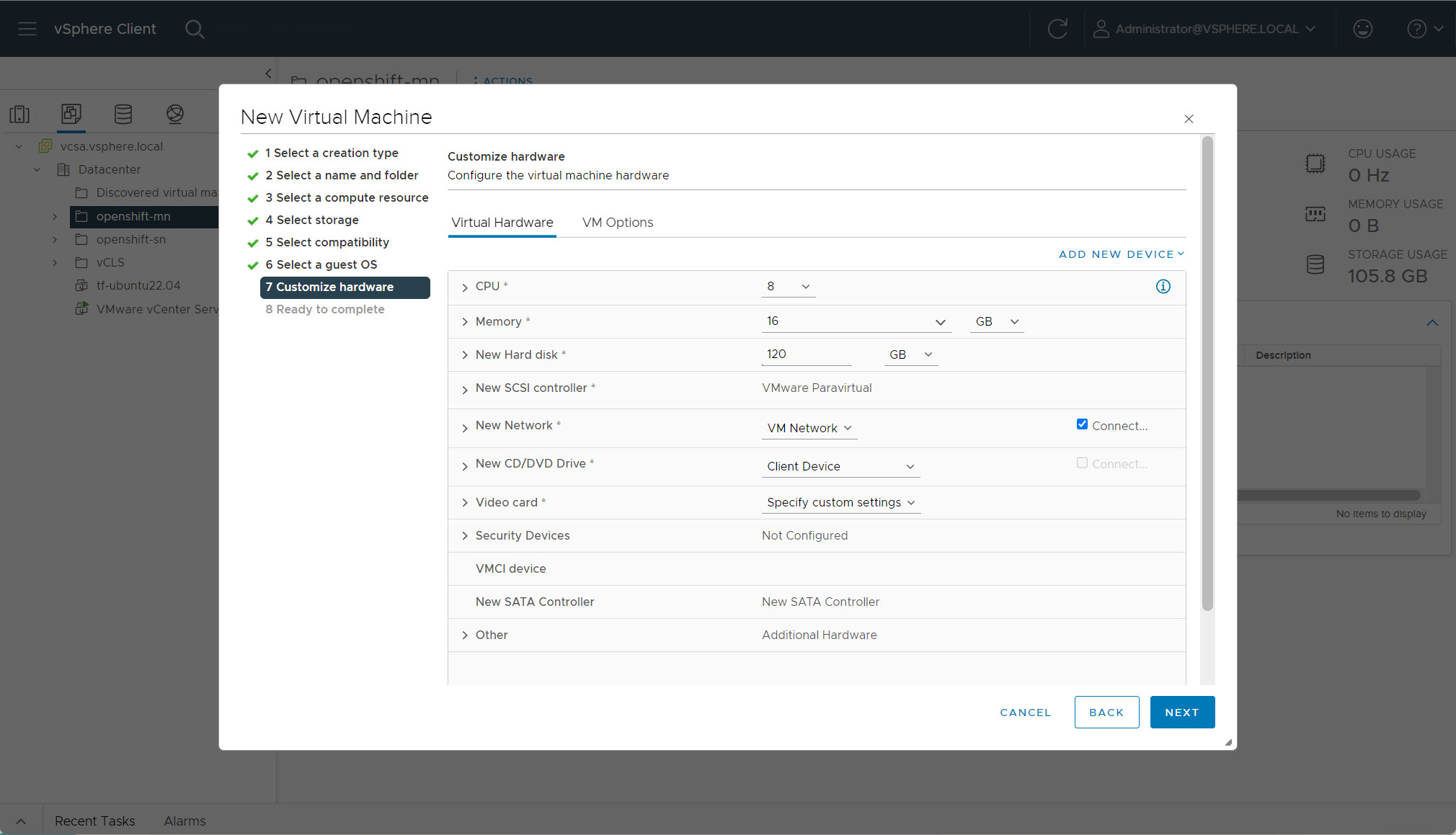

  • Allocate at least the following resources: 8 CPU cores, 16 GB RAM, 120 GB Disk

  • Open the “VM Options” tab

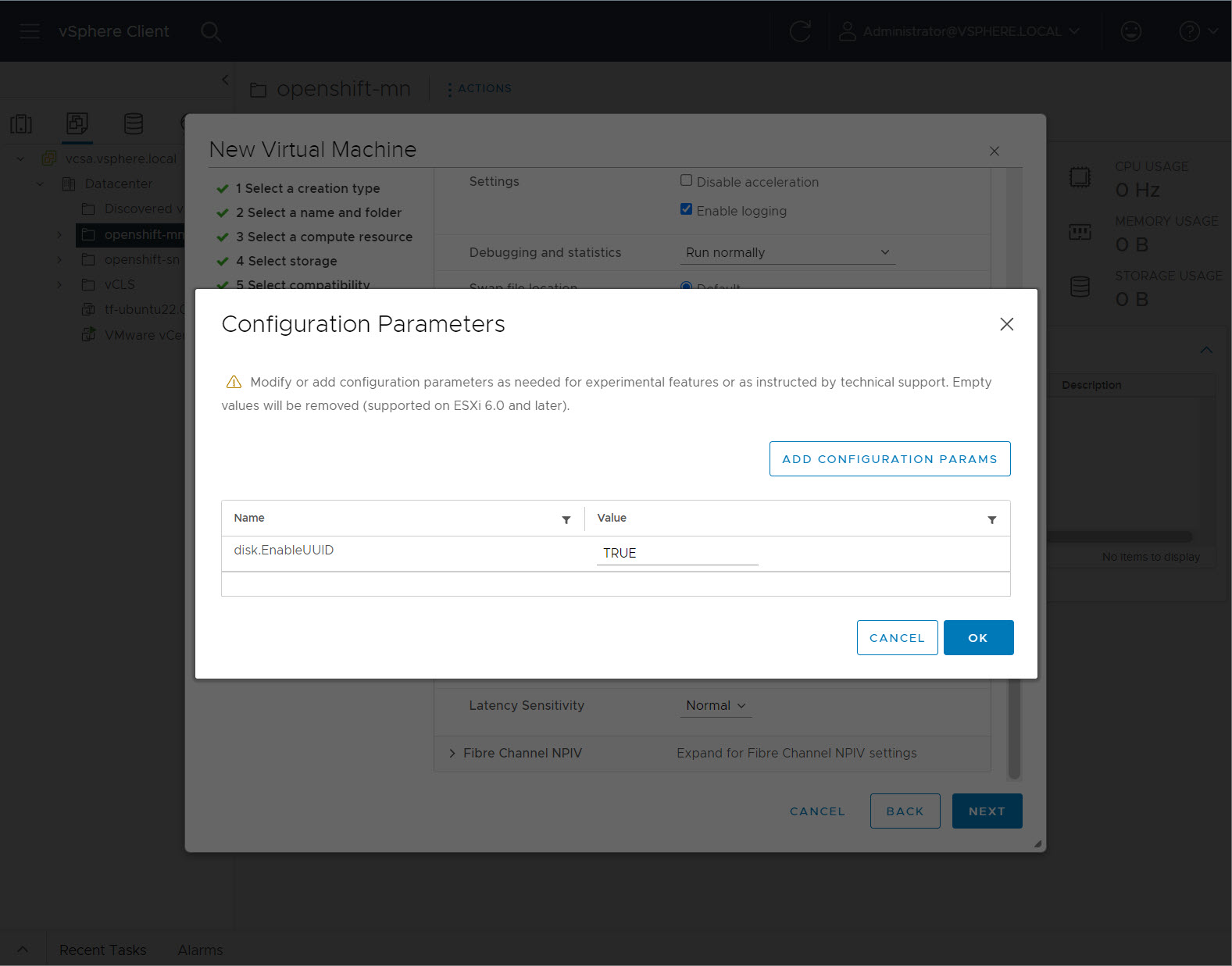

  • Scroll down to “Advanced” > (Configuration Parameters) “EDIT CONFIGURATION…”

  • Click “ADD CONFIGURATION PARAMS”

  • Add the following paramaters

# Name
disk.EnableUUID

# Value
TRUE
  • Click “OK”

Copy MAC Address (ESXi)
#

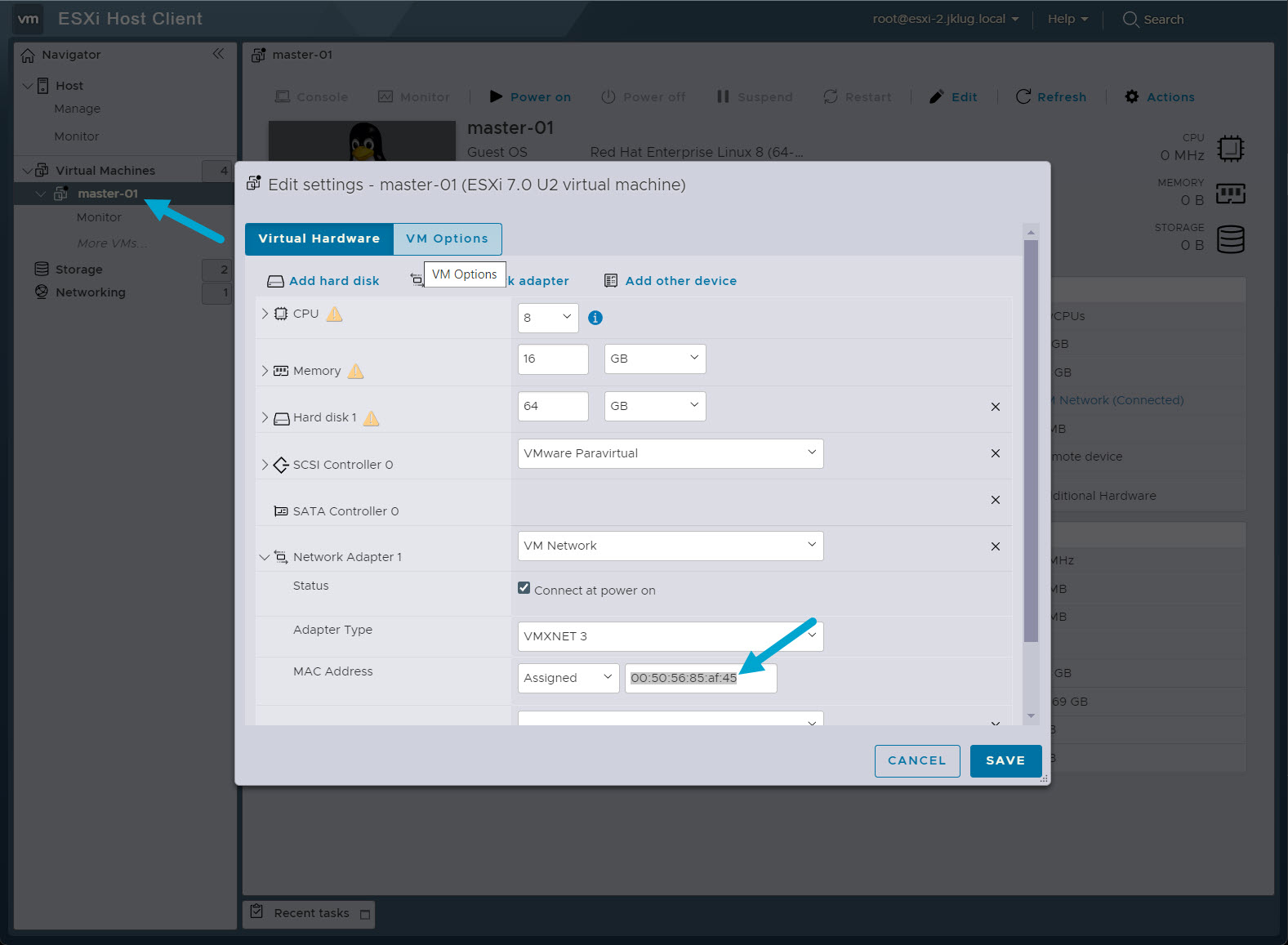

Edit the VMs via ESXi and copy the MAC addresses:


Copy MAC Address (PowerCLI)
#

# List network adapter details of "master-01" VM
Get-VM -Name master-01 | Get-NetworkAdapter

# Shell output:
Name                 Type            NetworkName     MacAddress         WakeOnLan
                                                                          Enabled
----                 ----            -----------     ----------         ---------
Network adapter 1    Vmxnet3         VM Network      00:50:56:85:af:45       True

OpenShift Webconsole
#

Installation Pt. 2
#

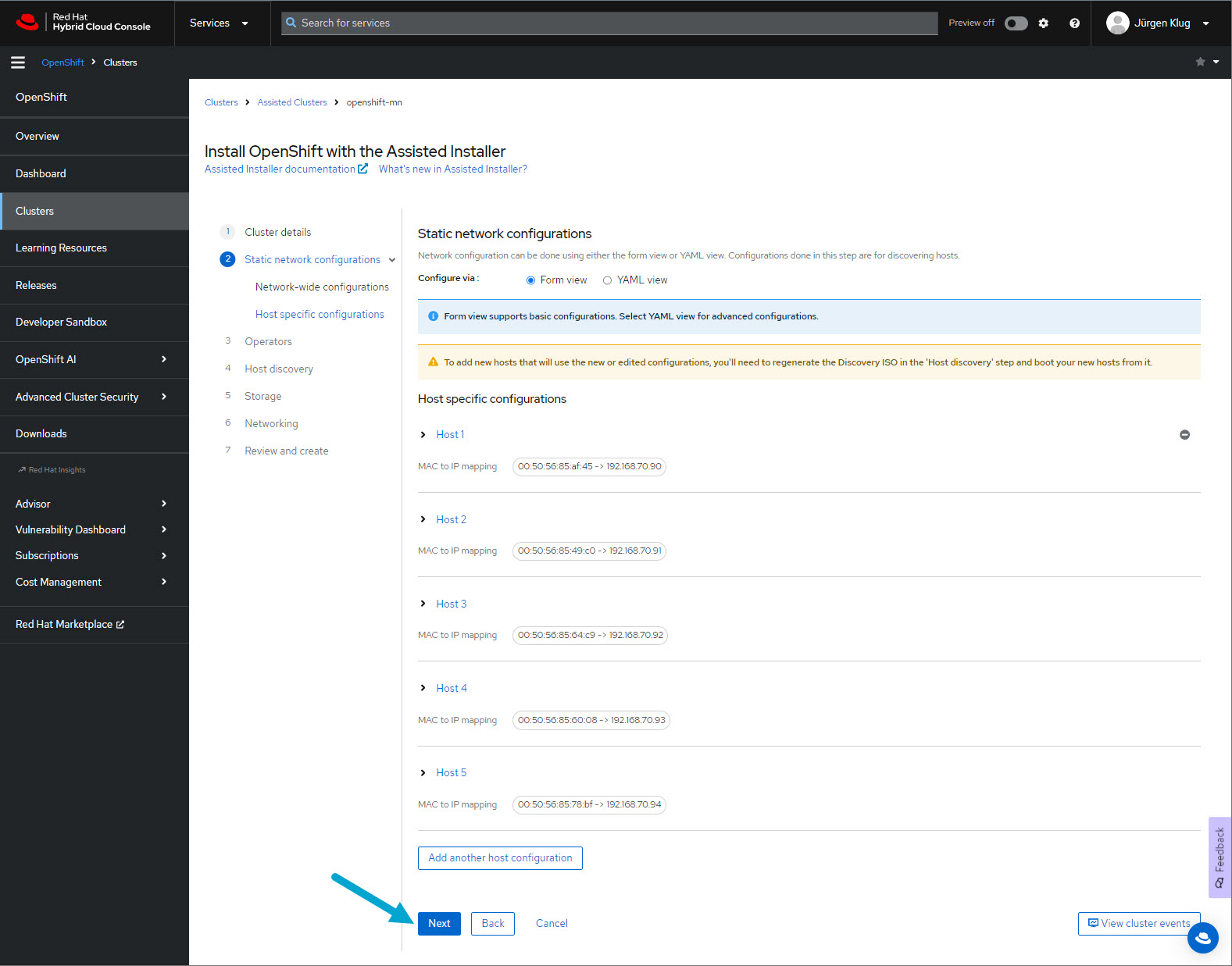

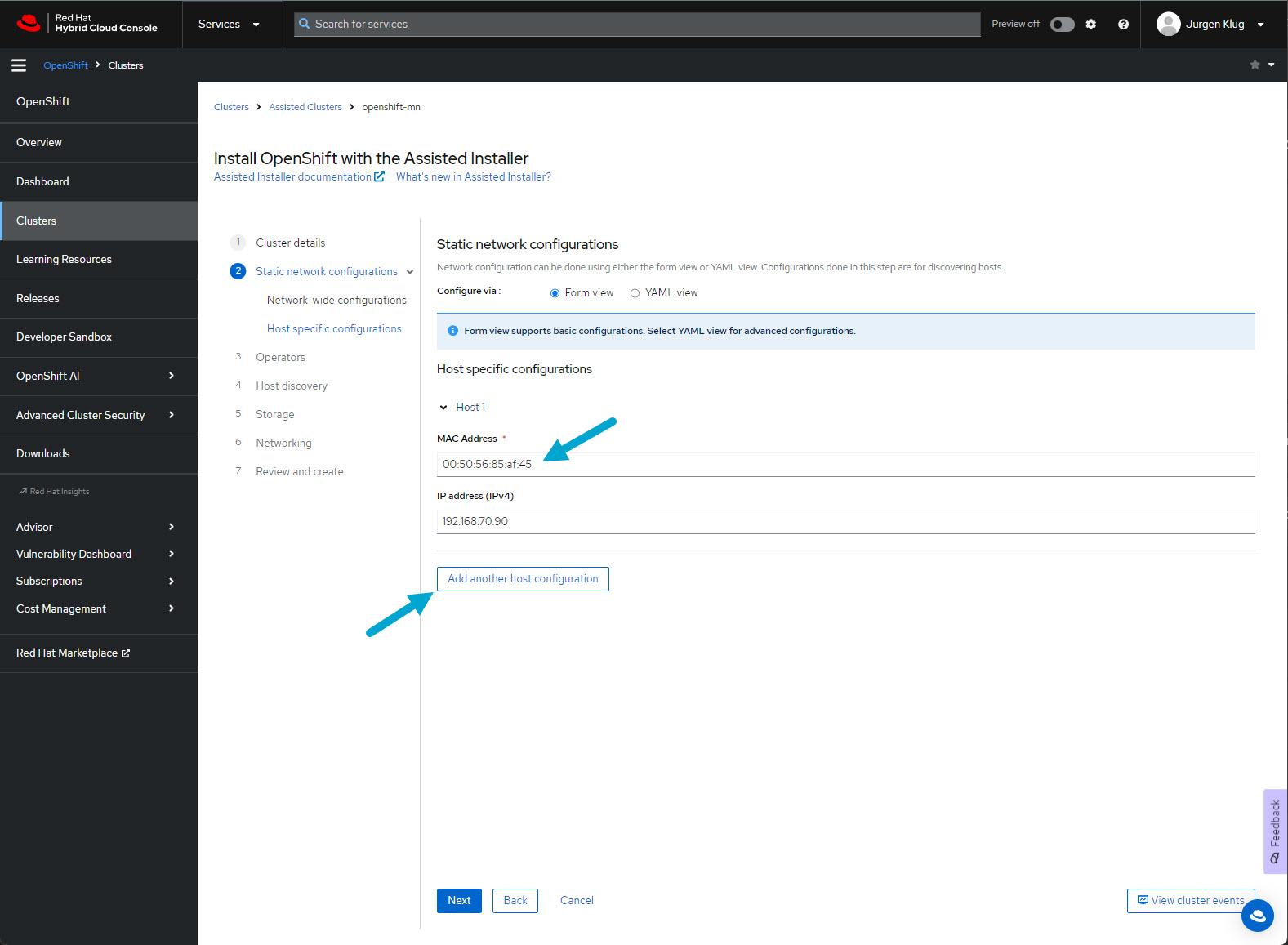

  • Paste the MAC addresses of the VMs and define an IP for each VM

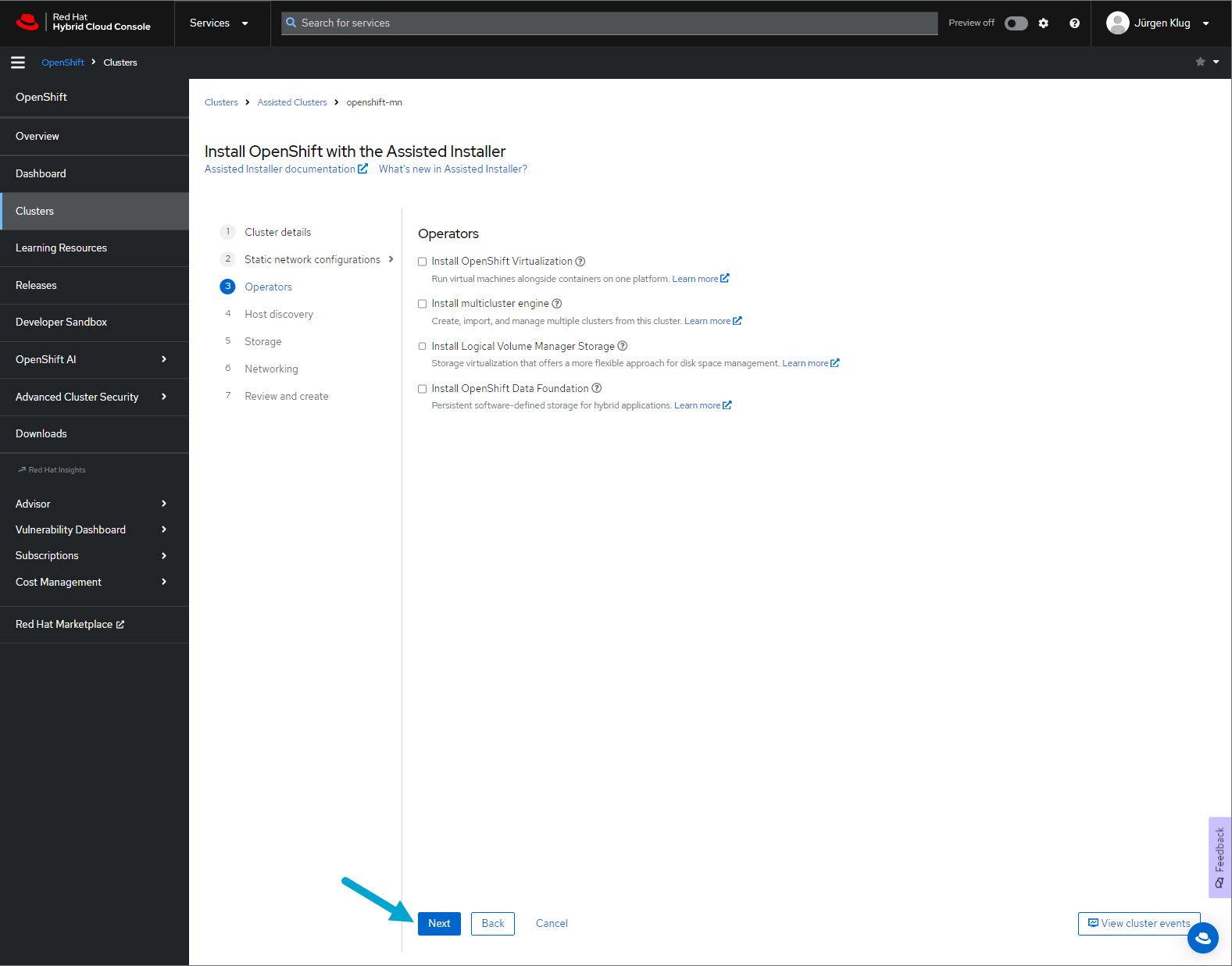

  • Click “Next”
  • Click “Next”

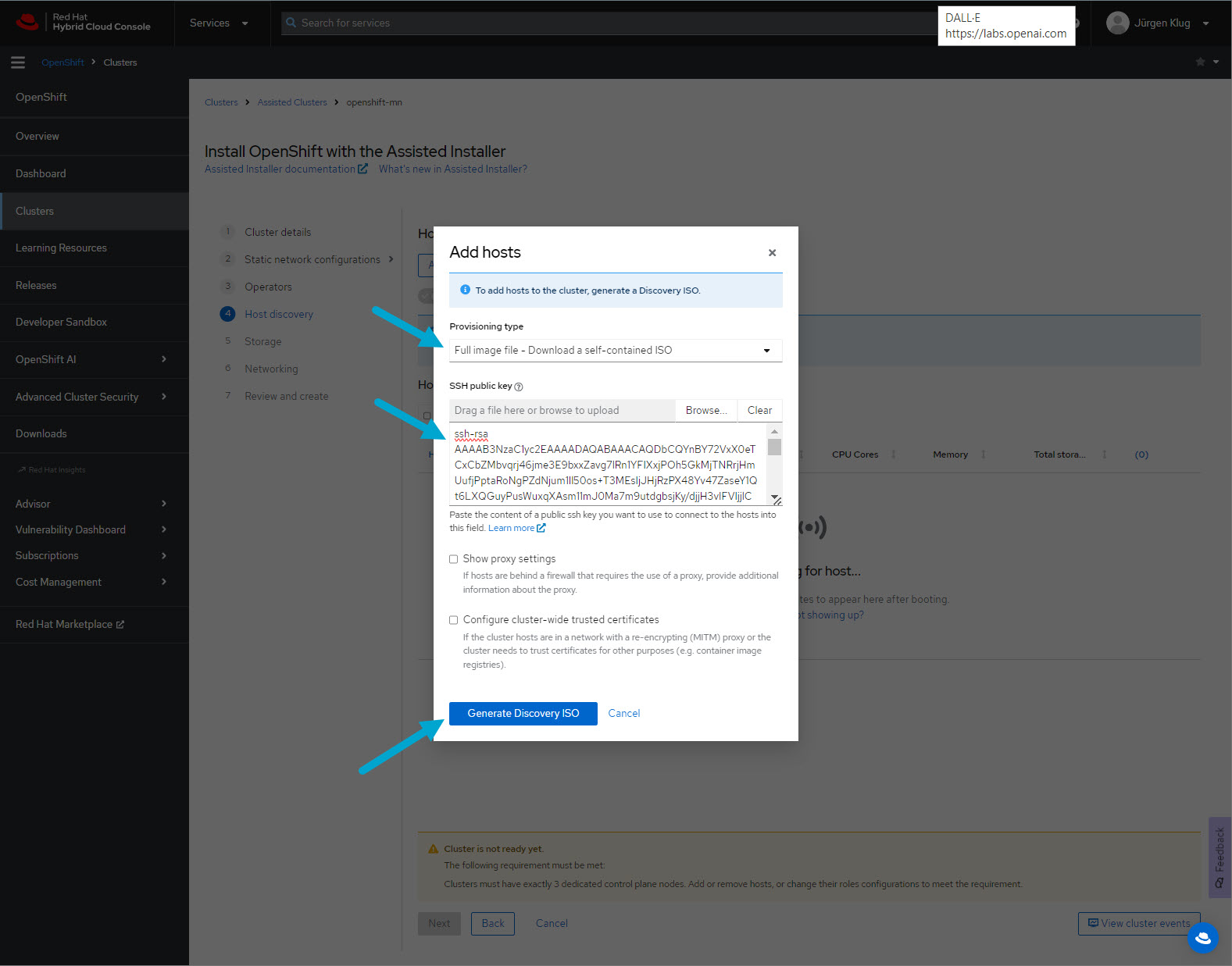

  • Select “Provisioning type” x “Full image file - Download a self-contained ISO”

  • Add a public SSH key

# Create SSH key pair
ssh-keygen -t rsa -b 4096

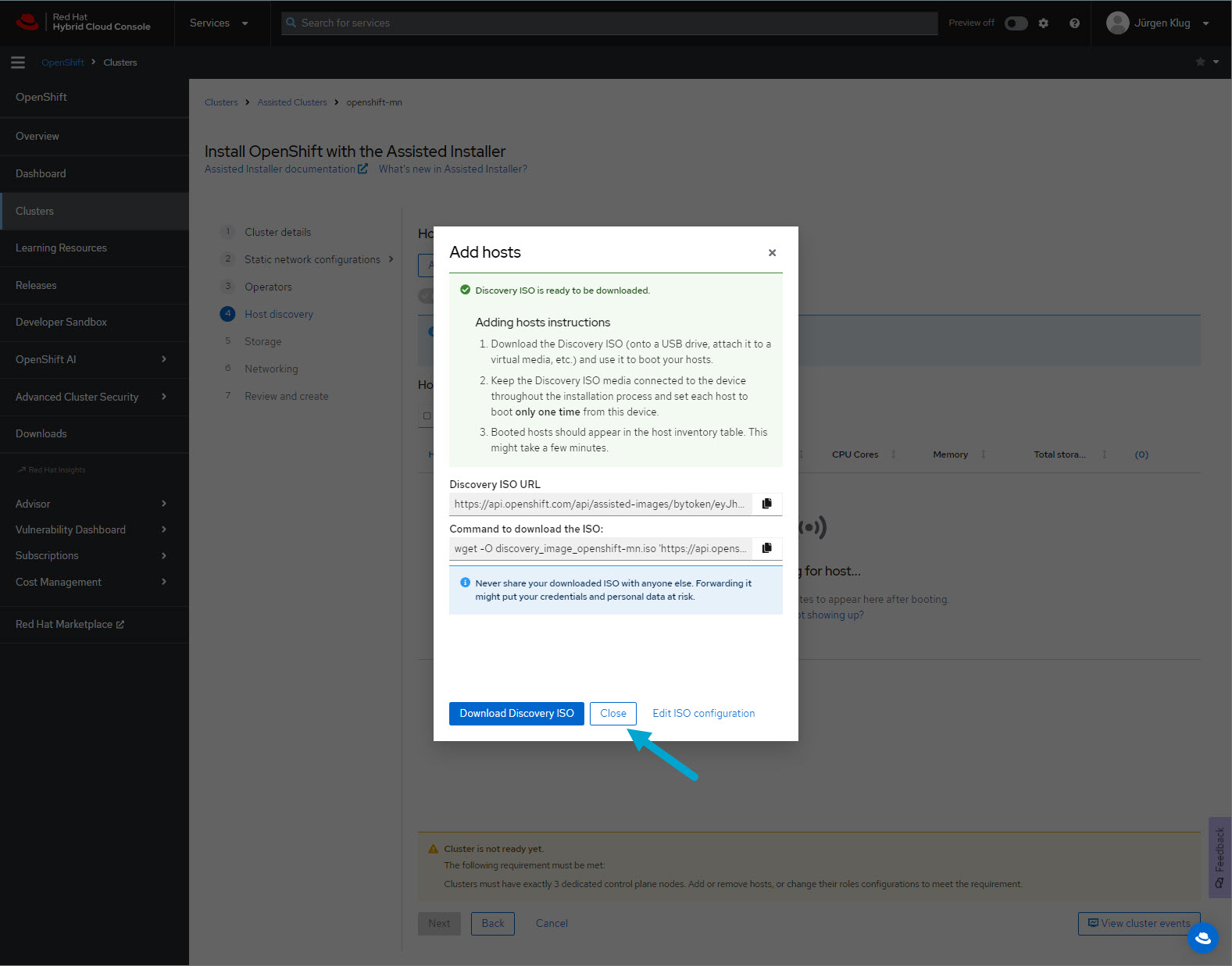

  • Click “Generate Discovery ISO”

  • Download the ISO

  • Click “Close”


vSphere
#

Upload ISO
#

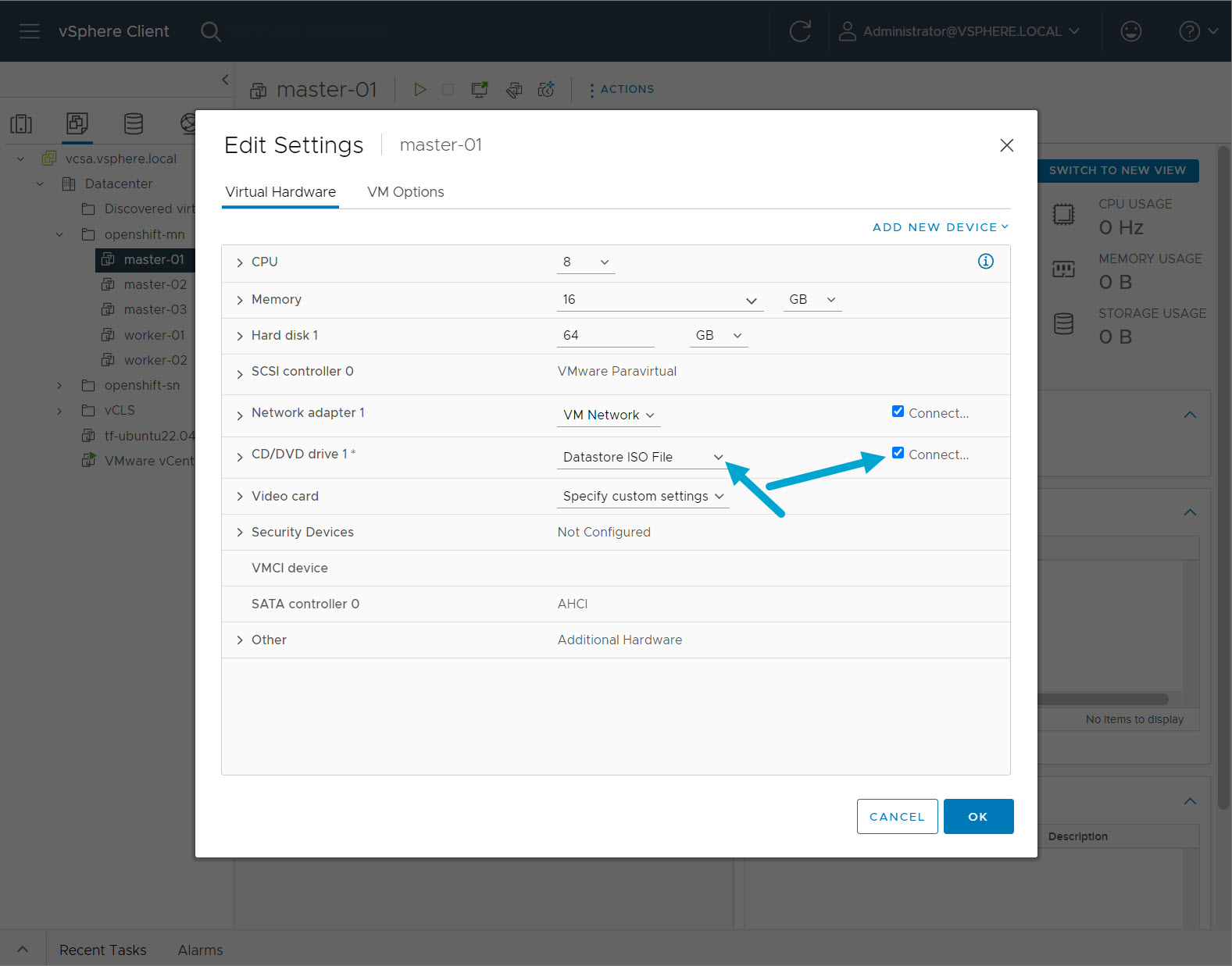

Upload the Discovery ISO to the necessary datastore or datastores and add the ISO to the VMs:

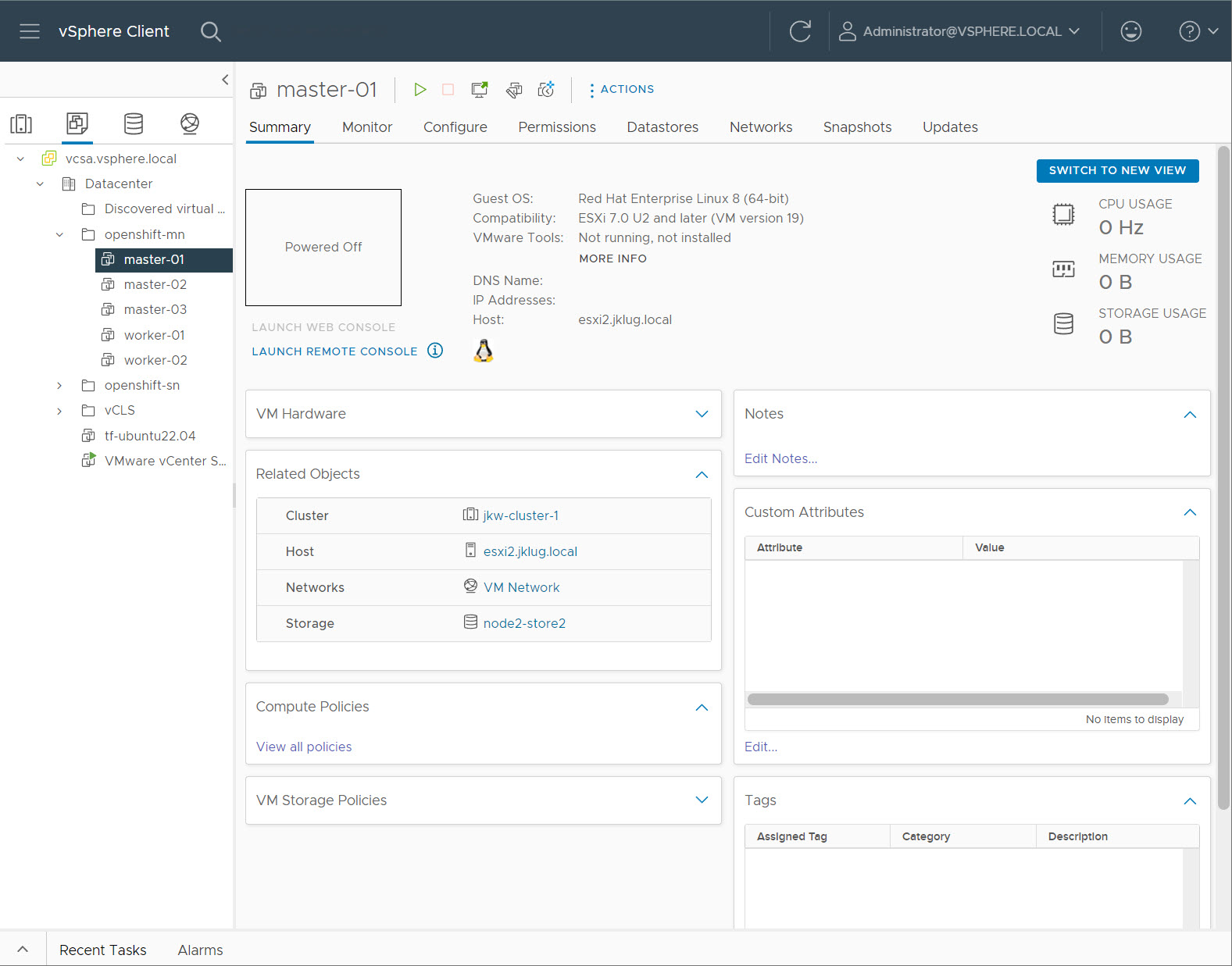

Start VMs
#

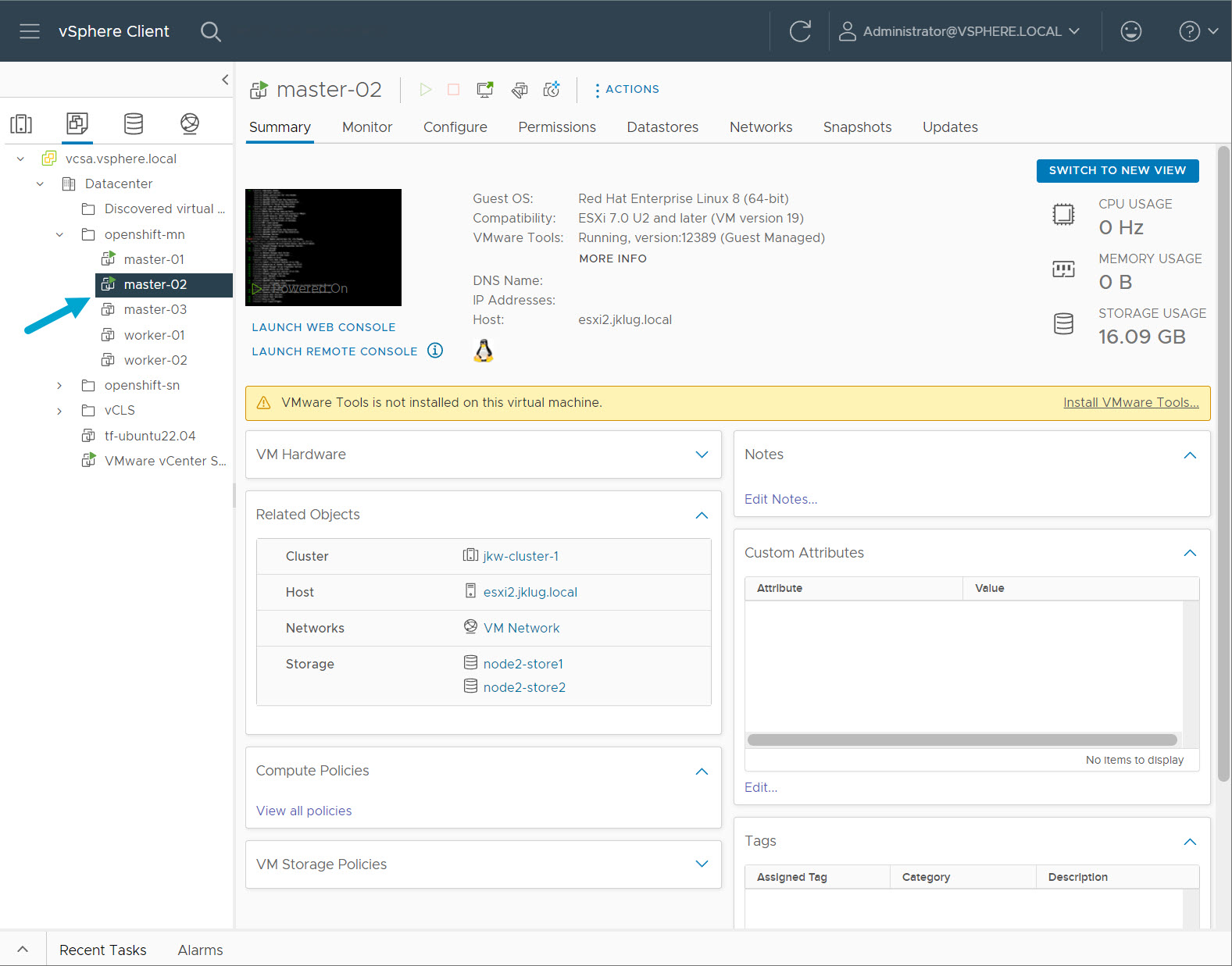

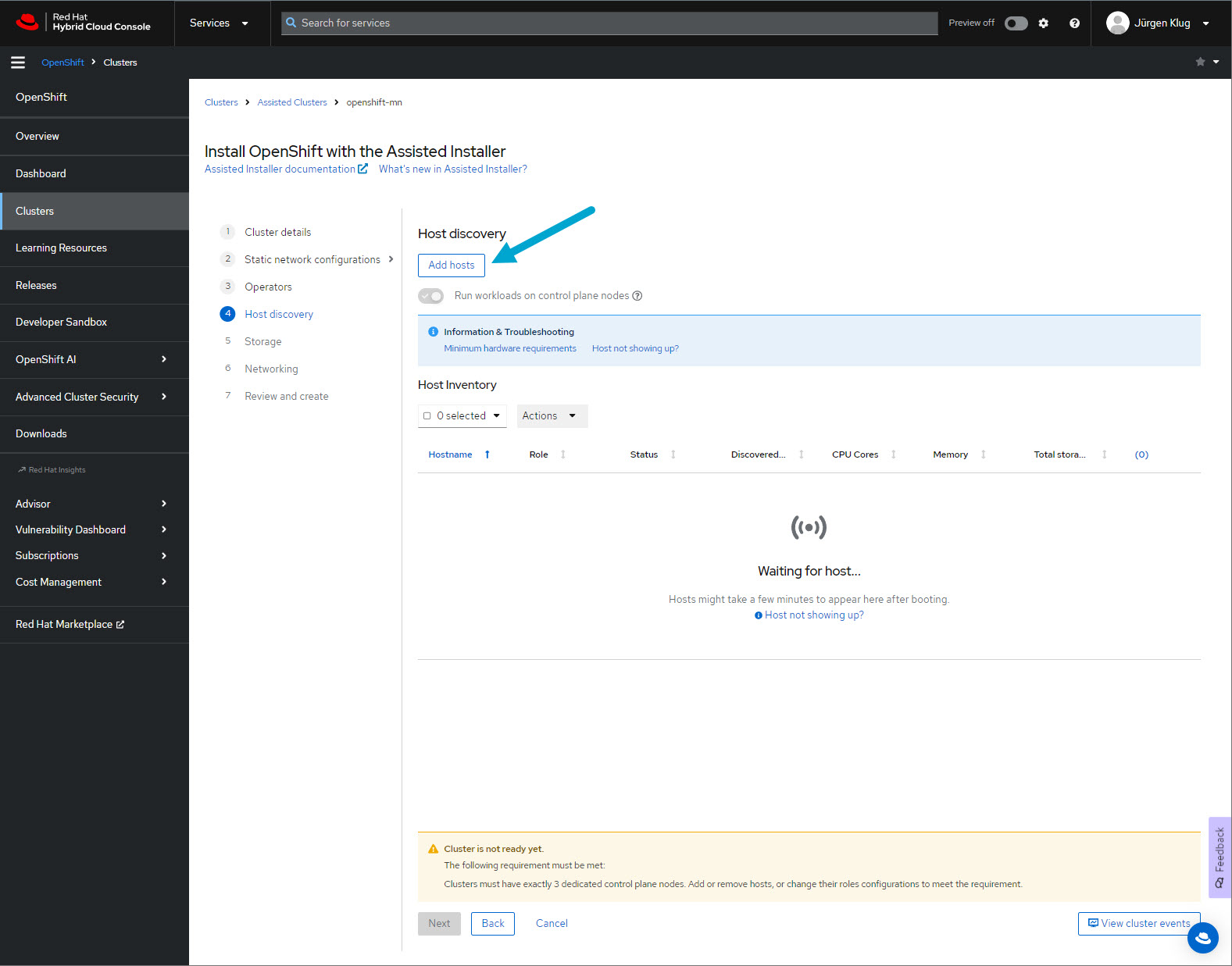

Start the first VM in vSphere, wait till it appears in the OpenShift web console and change it’s name. Do the same with all VMs.


OpenShift Webconsole
#

Installation Pt. 3
#

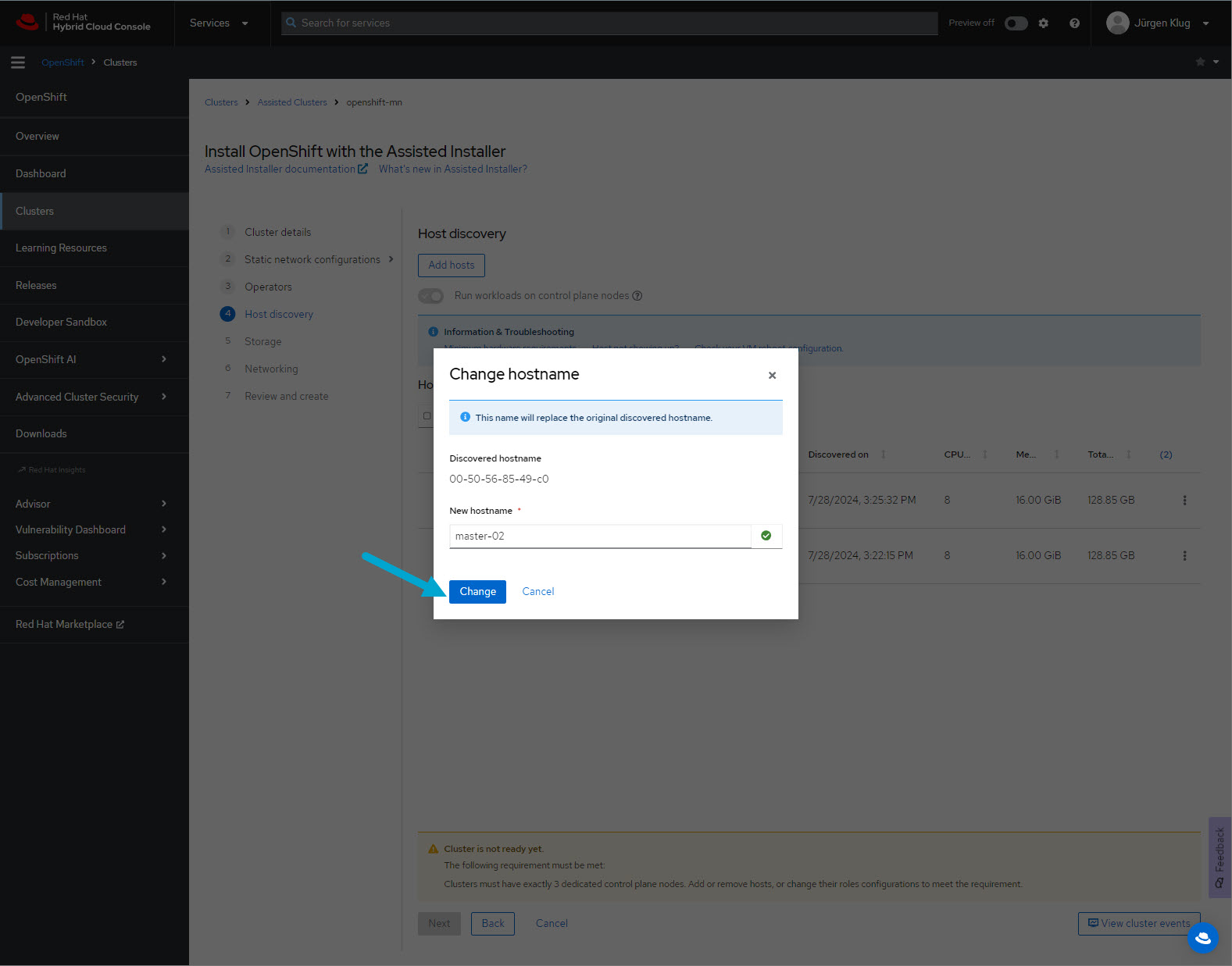

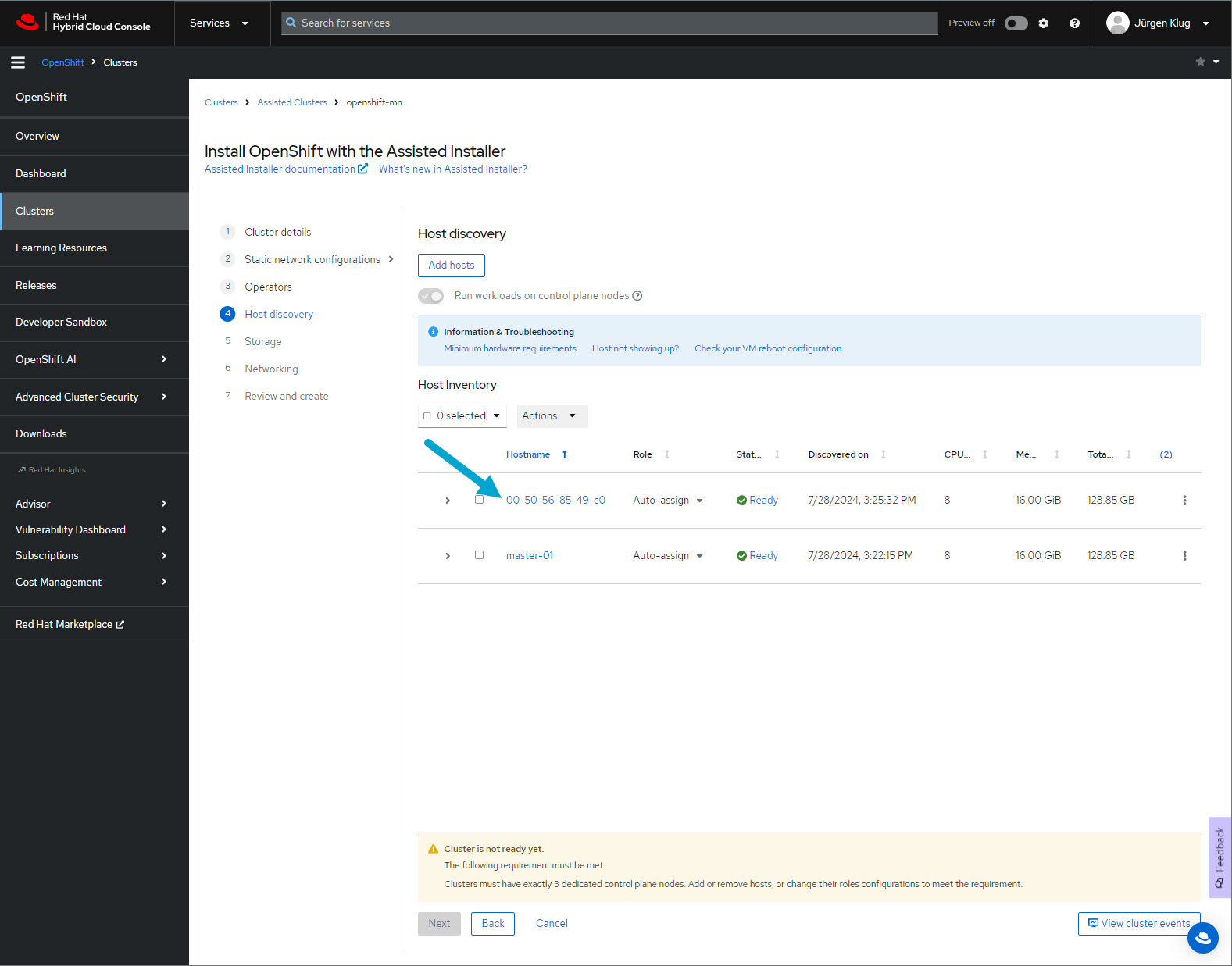

  • After the VM was started in vSphere, it should appear in the OpenShift web console. Click at it’s name to change it:
  • Define VM names according to your name scheme

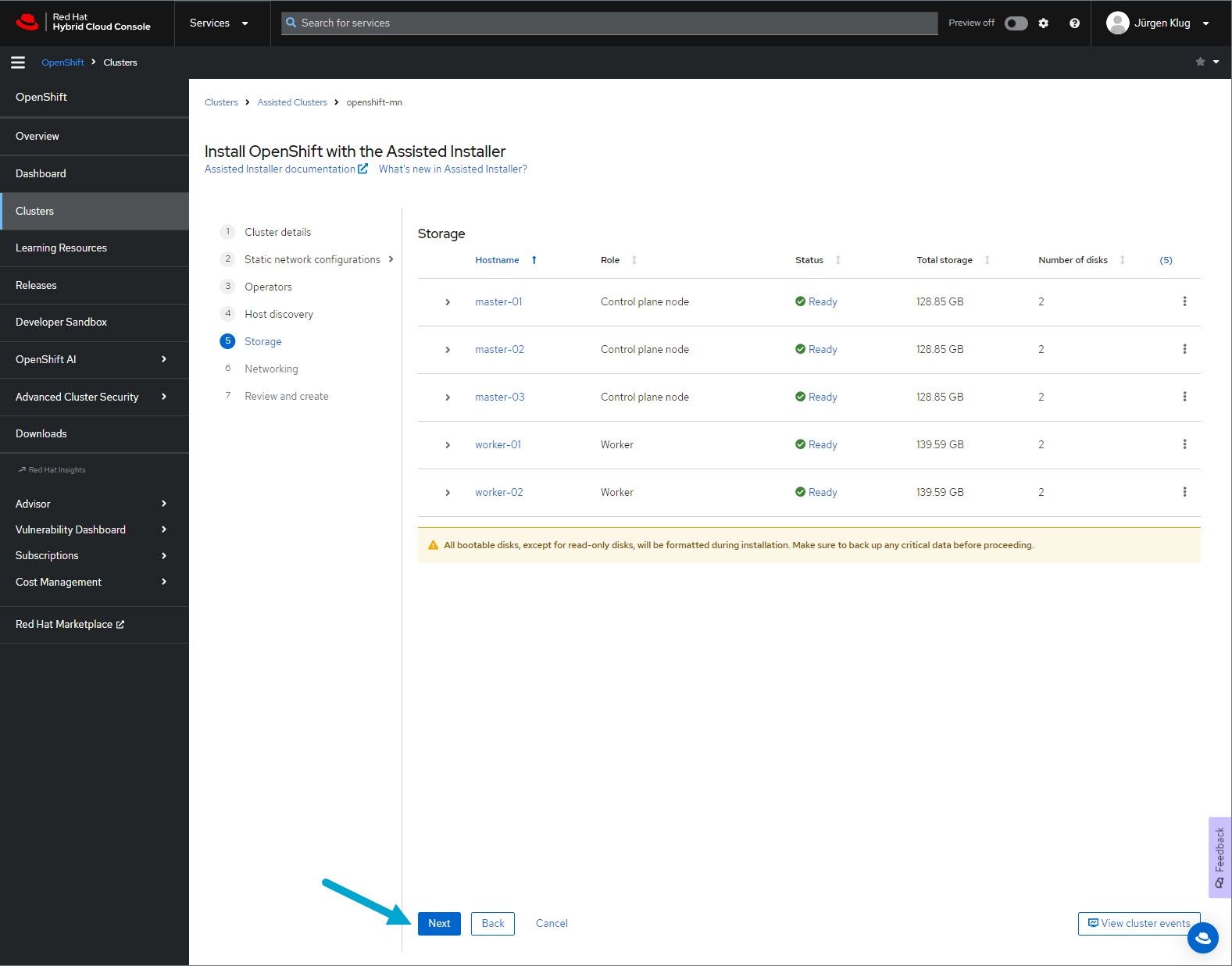

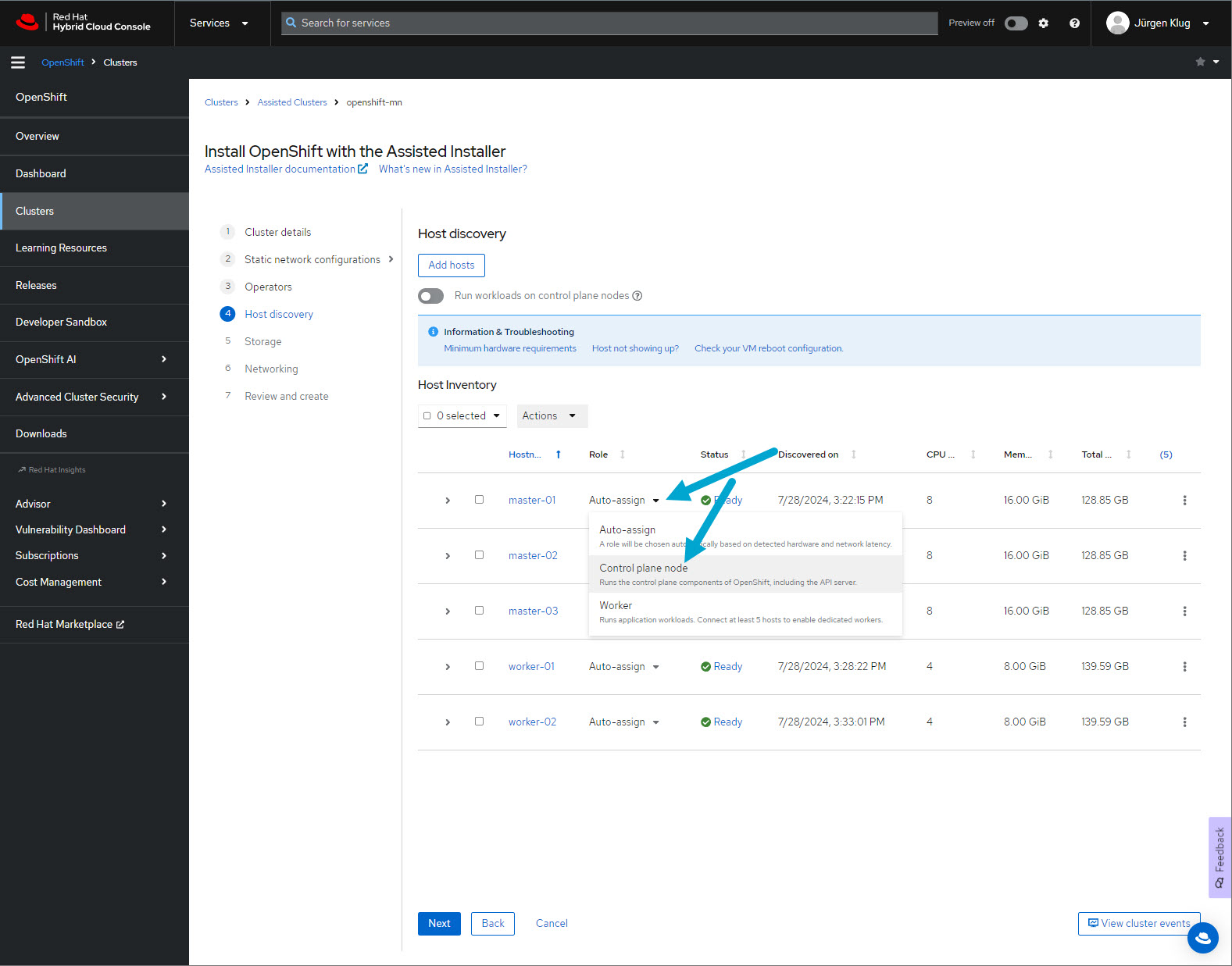

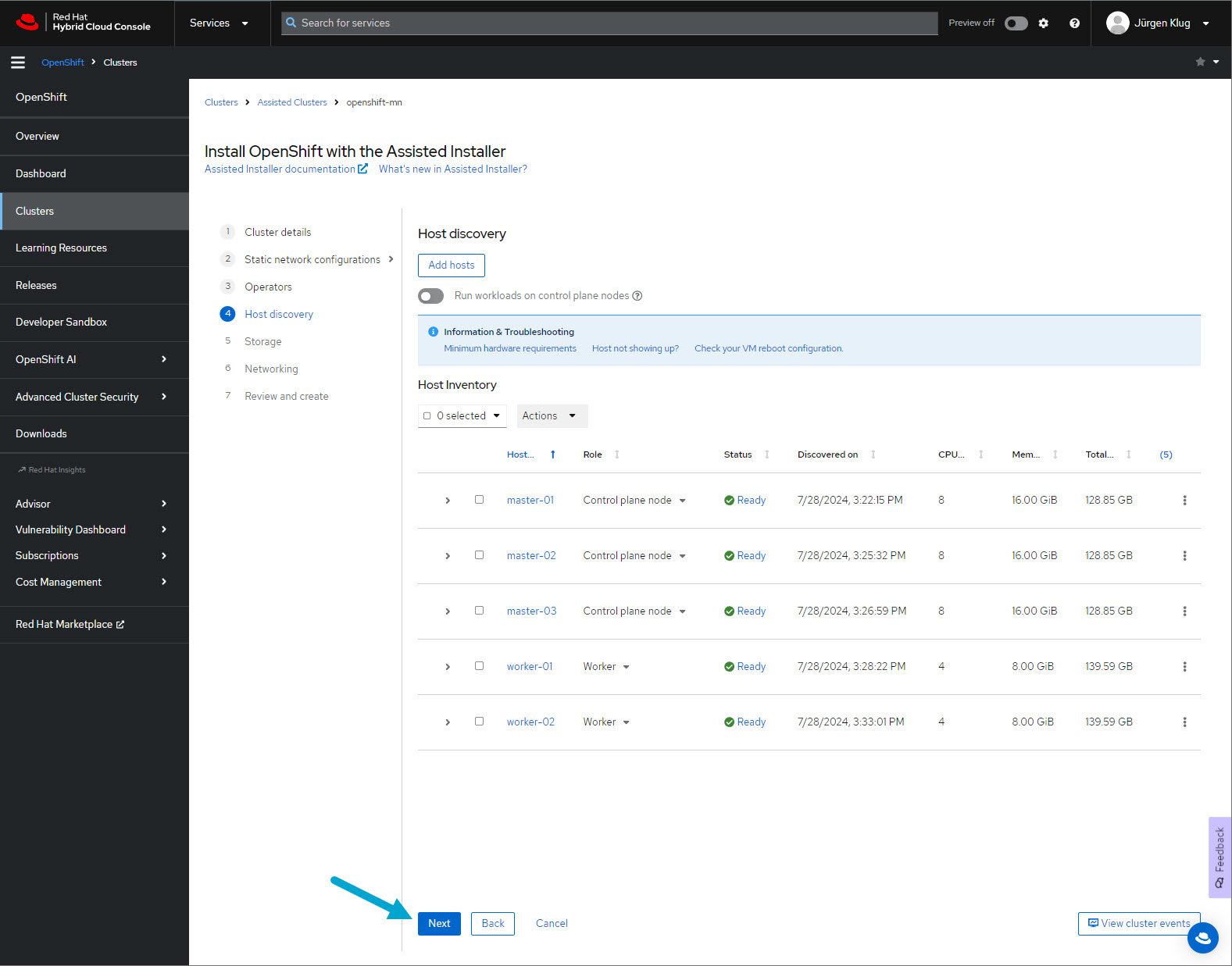

  • After all VMs are added and there status is “Ready” assign the desired roles
  • Click “Next”

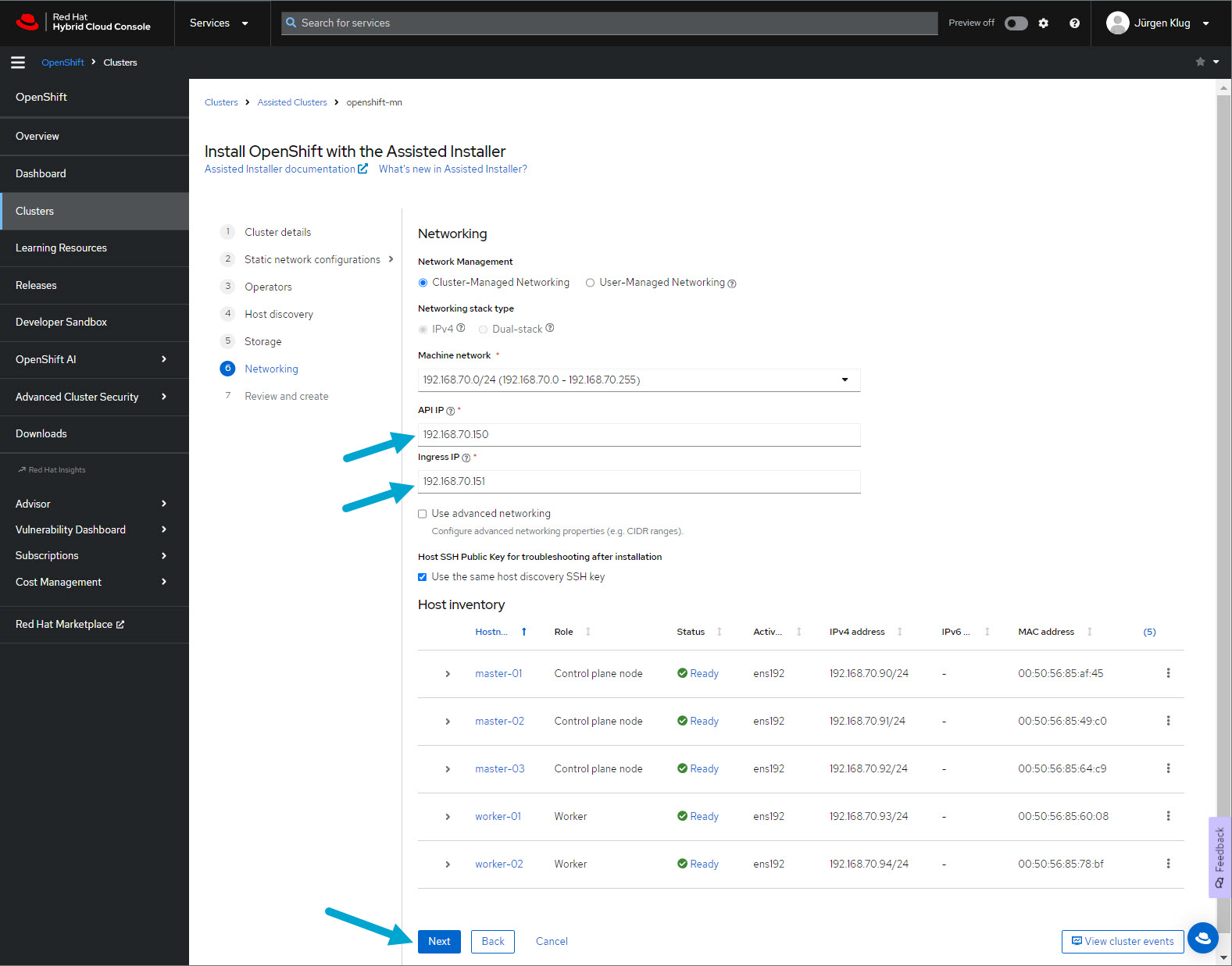

  • Define an IP for the Kubernetes API, for example 192.168.70.150

  • Define an IP for the Ingress, for example 192.168.70.151

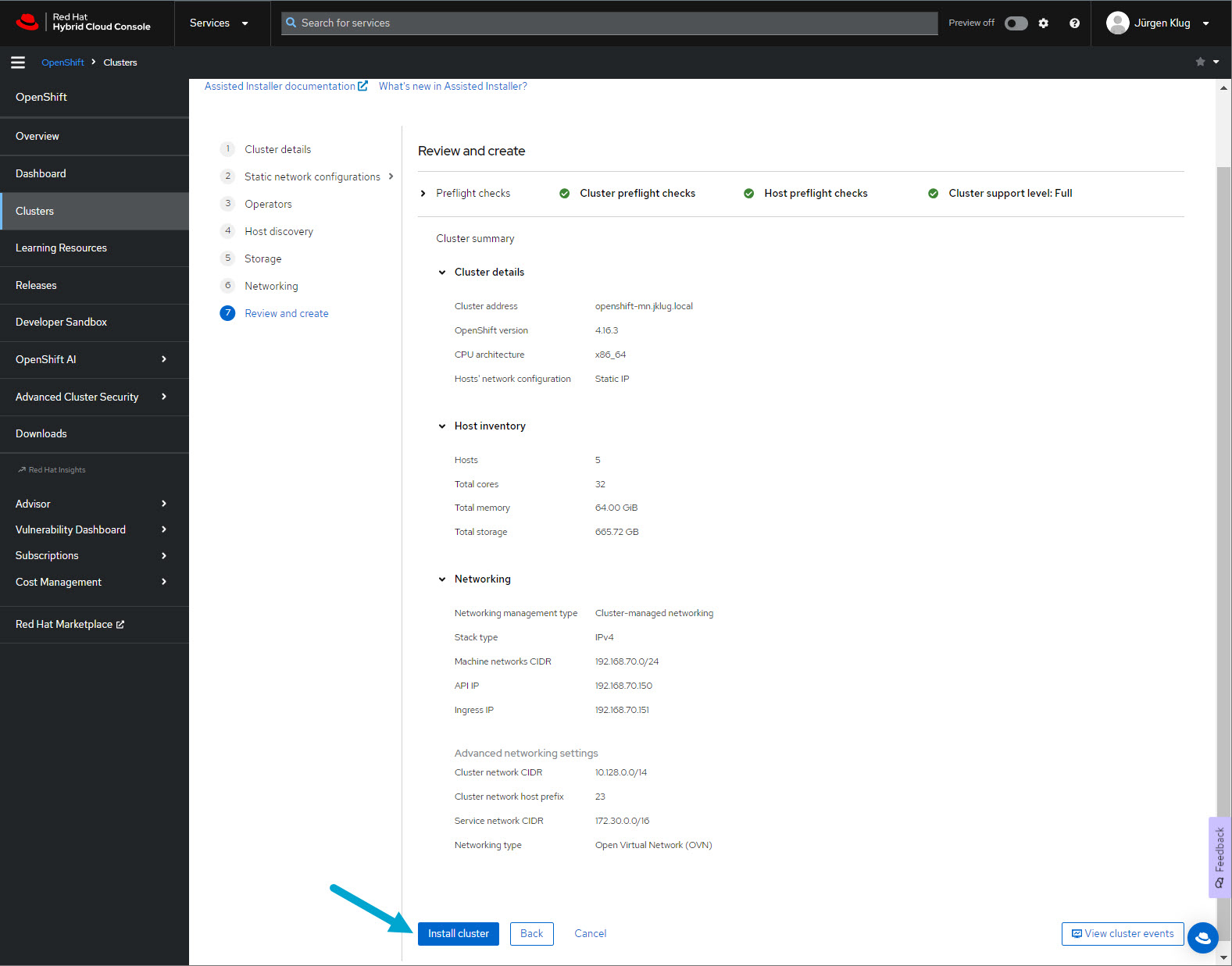

  • Click “Install cluster”



Post Installation
#

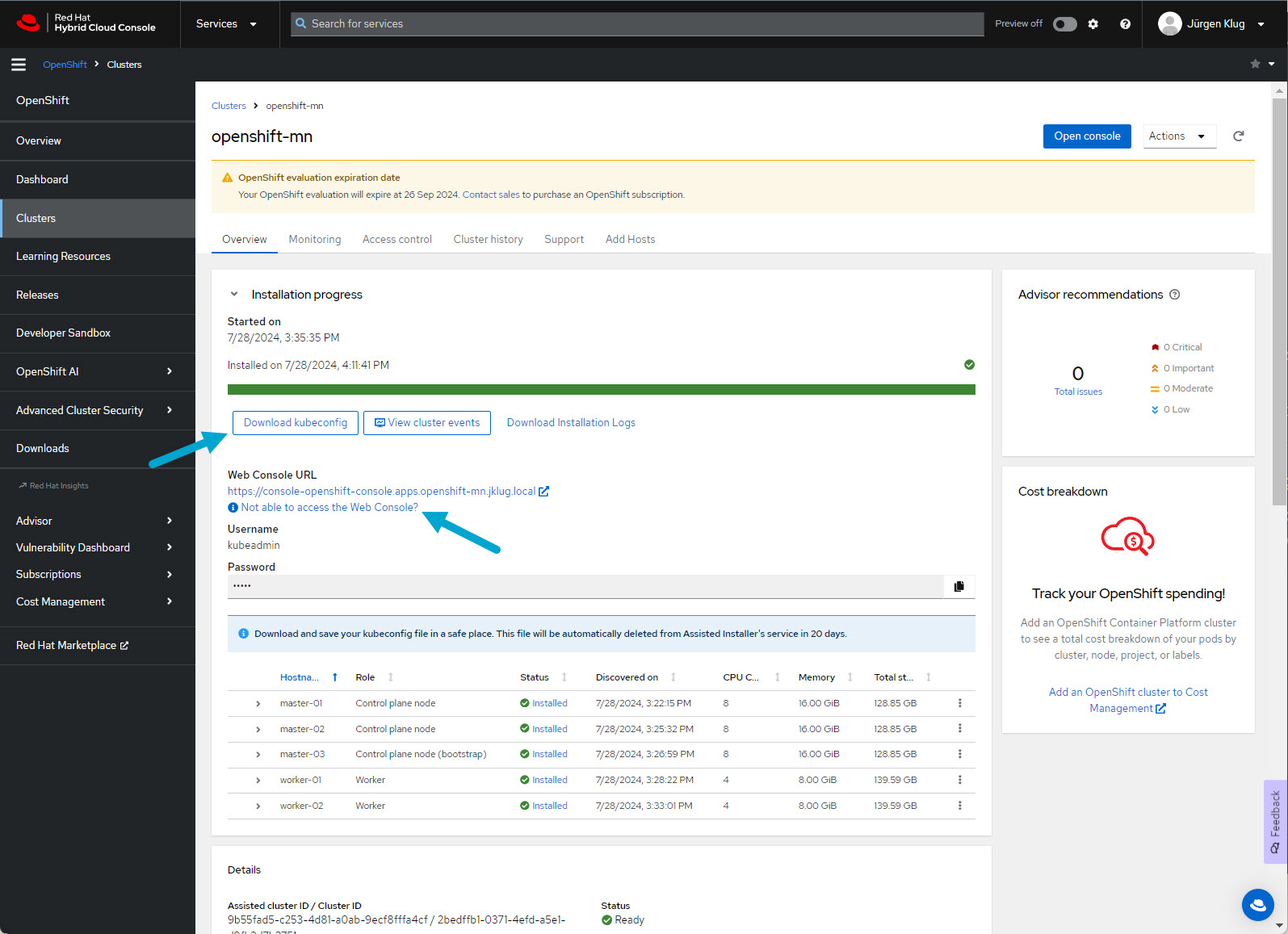

Wait till the installation has finished:

  • Click “Download kubeconfig”

  • Click “Not able to access the Web Console?” and copy the DNS entries


DNS Entry
#

Option 1: Add the following records to your DNS server (recommended)

api.openshift-mn.jklug.local      A	192.168.70.150
*.apps.openshift-mn.jklug.local   A	192.168.70.151

Option 2: Update your local /etc/hosts or /etc/resolv.conf files

192.168.70.150	api.openshift-mn.jklug.local
192.168.70.151	oauth-openshift.apps.openshift-mn.jklug.local
192.168.70.151	console-openshift-console.apps.openshift-mn.jklug.local
192.168.70.151	grafana-openshift-monitoring.apps.openshift-mn.jklug.local
192.168.70.151	thanos-querier-openshift-monitoring.apps.openshift-mn.jklug.local
192.168.70.151	prometheus-k8s-openshift-monitoring.apps.openshift-mn.jklug.local
192.168.70.151	alertmanager-main-openshift-monitoring.apps.openshift-mn.jklug.local

Cluster Web Console
#

# Open the web console
https://console-openshift-console.apps.openshift-mn.jklug.local/

# Username
kubeadmin

# Password
ZEaVq-5YzGd-LZuuI-3JHZw



Manage OpenShift Cluster
#

Install OpenShift CLI
#

# Unpack the archive
tar xvf oc-4.16.2-linux.tar.gz

# List paths
echo $PATH

# Move binary
sudo mv oc /usr/local/bin/

# Verify the installation / check version
oc version

# Shell output:
Client Version: 4.16.2
Kustomize Version: v5.0.4-0.20230601165947-6ce0bf390ce3
Server Version: 4.16.3
Kubernetes Version: v1.29.6+aba1e8d

Set Kubeconfig Environment Variable
#

Export the kubeconfig environment variable so that it points to the downloaded kubeconfig file:

# Export the kubeconfig environment variable
export KUBECONFIG=/home/ubuntu/.kubeadm/kubeconfig

List Cluster Nodes
#

# List nodes
oc get nodes

# Shell output:
NAME        STATUS   ROLES                  AGE   VERSION
master-01   Ready    control-plane,master   65m   v1.29.6+aba1e8d
master-02   Ready    control-plane,master   65m   v1.29.6+aba1e8d
master-03   Ready    control-plane,master   52m   v1.29.6+aba1e8d
worker-01   Ready    worker                 51m   v1.29.6+aba1e8d
worker-02   Ready    worker                 51m   v1.29.6+aba1e8d

# List nodes: More details
oc get nodes -o wide

# Shell output:
NAME        STATUS   ROLES                  AGE   VERSION           INTERNAL-IP     EXTERNAL-IP   OS-IMAGE                                                KERNEL-VERSION                 CONTAINER-RUNTIME
master-01   Ready    control-plane,master   67m   v1.29.6+aba1e8d   192.168.70.90   <none>        Red Hat Enterprise Linux CoreOS 416.94.202407081958-0   5.14.0-427.26.1.el9_4.x86_64   cri-o://1.29.6-3.rhaos4.16.gitfd433b7.el9
master-02   Ready    control-plane,master   67m   v1.29.6+aba1e8d   192.168.70.91   <none>        Red Hat Enterprise Linux CoreOS 416.94.202407081958-0   5.14.0-427.26.1.el9_4.x86_64   cri-o://1.29.6-3.rhaos4.16.gitfd433b7.el9
master-03   Ready    control-plane,master   54m   v1.29.6+aba1e8d   192.168.70.92   <none>        Red Hat Enterprise Linux CoreOS 416.94.202407081958-0   5.14.0-427.26.1.el9_4.x86_64   cri-o://1.29.6-3.rhaos4.16.gitfd433b7.el9
worker-01   Ready    worker                 53m   v1.29.6+aba1e8d   192.168.70.93   <none>        Red Hat Enterprise Linux CoreOS 416.94.202407081958-0   5.14.0-427.26.1.el9_4.x86_64   cri-o://1.29.6-3.rhaos4.16.gitfd433b7.el9
worker-02   Ready    worker                 53m   v1.29.6+aba1e8d   192.168.70.94   <none>        Red Hat Enterprise Linux CoreOS 416.94.202407081958-0   5.14.0-427.26.1.el9_4.x86_64   cri-o://1.29.6-3.rhaos4.16.gitfd433b7.el9

SSH into OpenShift VMs
#

# SSH into VMs
ssh core@192.168.70.90
ssh core@192.168.70.91
ssh core@192.168.70.92
ssh core@192.168.70.93
ssh core@192.168.70.94



Example Deployment
#

Deployment & Service Manifest
#

# Create manifest
vi example-deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  namespace: default
  name: nginx-deployment
spec:
  replicas: 3
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: container
        image: nginx
        ports:
        - containerPort: 80

---
apiVersion: v1
kind: Service
metadata:
  namespace: default
  name: nginx-service
spec:
  selector:
    app: nginx
  ports:
  - protocol: TCP
    port: 80
    targetPort: 80

# Apply the deployment a service
oc apply -f example-deployment.yaml

Ingress Manifest
#

# Create manifest
vi example-deployment-ingress.yaml

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: nginx-ingress
  namespace: default
spec:
  rules:
  - host: nginx-example.apps.openshift-mn.jklug.local
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: nginx-service
            port:
              number: 80

# Apply the ingress resource
oc apply -f example-deployment-ingress.yaml

Verify Resources
#

List Deployments
#

# List deployments
oc get deployments -n default

# Shell output:
NAME               READY   UP-TO-DATE   AVAILABLE   AGE
nginx-deployment   3/3     3            3           65s

List Pods
#

# List pods: More details
oc get pods -o wide -n default

# Shell output
NAME                                READY   STATUS    RESTARTS   AGE    IP            NODE        NOMINATED NODE   READINESS GATES
nginx-deployment-6f7d5c8f7f-5w8vw   1/1     Running   0          2m2s   10.128.2.17   worker-01   <none>           <none>
nginx-deployment-6f7d5c8f7f-966tt   1/1     Running   0          2m2s   10.131.0.23   worker-02   <none>           <none>
nginx-deployment-6f7d5c8f7f-nfcnz   1/1     Running   0          2m2s   10.131.0.24   worker-02   <none>           <none>

List Services
#

# List services
oc get services -n default

# Shell output:
NAME            TYPE           CLUSTER-IP     EXTERNAL-IP                            PORT(S)   AGE
kubernetes      ClusterIP      172.30.0.1     <none>                                 443/TCP   99m
nginx-service   ClusterIP      172.30.65.83   <none>                                 80/TCP    2m58s
openshift       ExternalName   <none>         kubernetes.default.svc.cluster.local   <none>    91m

List Ingress Resources
#

# List ingress resources
oc get ingress -n default

# Shell output:
NAME            CLASS    HOSTS                                         ADDRESS                                        PORTS   AGE
nginx-ingress   <none>   nginx-example.apps.openshift-mn.jklug.local   router-default.apps.openshift-mn.jklug.local   80      54s

Access the Deployment / Ingress
#

Create DNS Entry
#

If a hosts file is used for the DNS resolution, it’s necessary to create a DNS entry for the ingress resource:

# Create hosts entry
192.168.70.151 nginx-example.apps.openshift-mn.jklug.local

Access the Deployment
#

# Access the deployment
http://nginx-example.apps.openshift-mn.jklug.local

Delete Resources
#

# Delete example deployment & service
kubectl apply -f example-deployment.yaml

# Delete ingress resource
kubectl delete -f example-deployment-ingress.yaml
