In this tutorial I set up a basic Icinga2 Setup that is managed with Icinga Director.
Here are the links to the original repository:
https://hub.docker.com/r/jordan/icinga2/
https://github.com/jjethwa/icinga2
In my Tutorial Setup the IP addresses and hostnames are as follows:
Icinga Server: 192.168.30.195 ubnticinga
Host: 192.168.30.196 ubnts1
Incinga2 #
Setup #
Don’t use special characters like “!$?” when you define the passwords for
MYSQL_ROOT_PASSWORD
and DEFAULT_MYSQL_PASS
otherwise the Icinga Director Daemon want start!
# Clone Repository
git clone https://github.com/jjethwa/icinga2.git
# Change into Directory
cd icinga2
# Define MySQL Root PW
echo 'MYSQL_ROOT_PASSWORD=vCVxtKTavGrjtTep' > secrets_sql.env
# Uncomment and define Admin User & PW
- ICINGAWEB2_ADMIN_USER=jkw
- ICINGAWEB2_ADMIN_PASS=test123!
# Define MySQL User & PW, otherwise Container wan't restart
- DEFAULT_MYSQL_PASS=dakGSXxaXAunXj2p
- DEFAULT_MYSQL_USER=icinga2
The final Docker Compose file should look like this:
version: '2'
services:
icinga2:
#image: jordan/icinga2
build:
context: ./
dockerfile: Dockerfile
restart: on-failure:5
# Set your hostname to the FQDN under which your
# sattelites will reach this container
hostname: ubnticinga
env_file:
- secrets_sql.env
environment:
#- APACHE2_HTTP=REDIRECT
- ICINGA2_FEATURE_GRAPHITE=1
# Important:
# keep the hostname graphite the same as
# the name of the graphite docker-container
- ICINGA2_FEATURE_GRAPHITE_HOST=graphite
- ICINGA2_FEATURE_GRAPHITE_PORT=2003
- ICINGA2_FEATURE_GRAPHITE_URL=http://graphite
# - ICINGA2_FEATURE_GRAPHITE_SEND_THRESHOLDS=true
# - ICINGA2_FEATURE_GRAPHITE_SEND_METADATA=false
- ICINGAWEB2_ADMIN_USER=jkw
- ICINGAWEB2_ADMIN_PASS=test123
#- ICINGA2_USER_FULLNAME=Icinga2 Docker Monitoring Instance
- DEFAULT_MYSQL_HOST=mysql
- DEFAULT_MYSQL_PASS=dakGSXxaXAunXj2p # Define MySQL PW, otherwise Container wan't restart
- DEFAULT_MYSQL_USER=icinga2 # Define MySQL User, otherwise Container wan't restart
volumes:
- ./data/icinga/cache:/var/cache/icinga2
- ./data/icinga/certs:/etc/apache2/ssl
- ./data/icinga/etc/icinga2:/etc/icinga2
- ./data/icinga/etc/icingaweb2:/etc/icingaweb2
- ./data/icinga/lib/icinga:/var/lib/icinga2
- ./data/icinga/lib/php/sessions:/var/lib/php/sessions
- ./data/icinga/log/apache2:/var/log/apache2
- ./data/icinga/log/icinga2:/var/log/icinga2
- ./data/icinga/log/icingaweb2:/var/log/icingaweb2
- ./data/icinga/log/mysql:/var/log/mysql
- ./data/icinga/spool:/var/spool/icinga2
- ./data/icinga/cron.d/icinga:/etc/cron.d/icinga
# Sending e-mail
# See: https://github.com/jjethwa/icinga2#sending-notification-mails
# If you want to enable outbound e-mail, edit the file mstmp/msmtprc
# and configure to your corresponding mail setup. The default is a
# Gmail example but msmtp can be used for any MTA configuration.
# Change the aliases in msmtp/aliases to your recipients.
# Then uncomment the rows below
# - ./msmtp/msmtprc:/etc/msmtprc:ro
# - ./msmtp/aliases:/etc/aliases:ro
ports:
- "80:80"
- "443:443"
- "5665:5665"
graphite:
image: graphiteapp/graphite-statsd:latest
container_name: graphite
restart: on-failure:5
hostname: graphite
volumes:
- ./data/graphite/conf:/opt/graphite/conf
- ./data/graphite/storage:/opt/graphite/storage
- ./data/graphite/log/graphite:/var/log/graphite
- ./data/graphite/log/carbon:/var/log/carbon
mysql:
image: mariadb
container_name: mysql
restart: always
env_file:
- secrets_sql.env
environment:
- MARIADB_AUTO_UPGRADE=1
volumes:
- ./data/mysql/data:/var/lib/mysql
# If you have previously used the container's internal DB use:
#- ./data/icinga/lib/mysql:/var/lib/mysql
Start Icinga #
# Start Icinga2
docker compose up -d
# Check Logs
docker compose logs
Docke PS Output:
9f281ce77d5a mysql
e10b7bc2bdbf graphite
6a3bc2c5afc4 icinga2-icinga2-1
Icinga Web Interface #
Login:
http://192.168.30.195/icingaweb2/authentication/login
Live Grid:
http://192.168.30.195/icingaweb2/monitoring/list/servicegrid?limit=100%2C100
Check Icinga Version:
http://192.168.30.195/icingaweb2/about
Additional Configurtion:
http://192.168.30.195/icingaweb2/navigation/dashboard?name=configuration
SSL/TSL Encryption #
In this tutorial I use an local VM to host my Icinga2 Server. In order to enable SSL/TSL encryption I spin up an EC2 instance, point the subdomain “icinga2.jklug.work” from Route 53 to the public IP of the EC2 instance and request a certificate with Certbot. After that I copy the certificates to the local VM and enable the redirect http to https option for Apache. The last step is to create a local DNS entry on the Client that points to the VM with Icinga2.
Create Certificates and copy them to the Icinga2 Instance:
# Install Cerbot
sudo apt install certbot
# Request Certificate
sudo certbot certonly --standalone -d icinga2.jklug.work
# Certificate Directory (copy to local VM)
/etc/letsencrypt/archive/icinga2.jklug.work
# Copy and rename Certificates (copy from local VM directory)
sudo cp ./cert1.pem ~/icinga2/data/icinga/certs/icinga2.crt &&
sudo cp ./privkey1.pem ~/icinga2/data/icinga/certs/icinga2.key
Enable http to https Redirection:
# Uncomment Apache Redirect in Docker Compose file
environment:
- APACHE2_HTTP=REDIRECT
# Restart Docker Container
cd ~/icinga2
docker compose down
docker compose up -d
Create DNS entry on local host:
# Open hosts file (Start Notepad as Administrator)
C:\Windows\System32\drivers\etc\hosts
# Add local DNS entry
192.168.30.195 icinga2.jklug.work

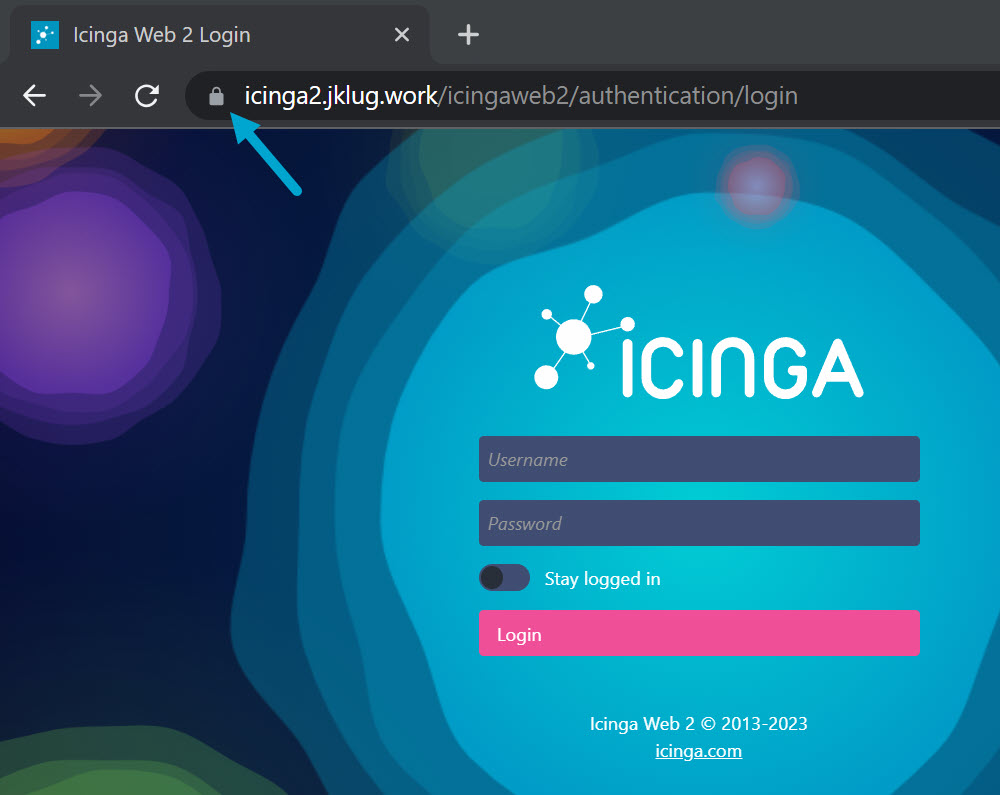

Test the HTTPS Encryption:
Client Monitoring #
Install necessary dependencies #
# Ubuntu Repository
sudo apt update && sudo apt -y install apt-transport-https wget gnupg
sudo su
wget -O - https://packages.icinga.com/icinga.key | gpg --dearmor -o /usr/share/keyrings/icinga-archive-keyring.gpg
. /etc/os-release; if [ ! -z ${UBUNTU_CODENAME+x} ]; then DIST="${UBUNTU_CODENAME}"; else DIST="$(lsb_release -c| awk '{print $2}')"; fi; \
echo "deb [signed-by=/usr/share/keyrings/icinga-archive-keyring.gpg] https://packages.icinga.com/ubuntu icinga-${DIST} main" > \
/etc/apt/sources.list.d/${DIST}-icinga.list
echo "deb-src [signed-by=/usr/share/keyrings/icinga-archive-keyring.gpg] https://packages.icinga.com/ubuntu icinga-${DIST} main" >> \
/etc/apt/sources.list.d/${DIST}-icinga.list
# Update Package Manager
sudo apt update
# Install Icinga2 and Monitoring Plugins
sudo apt install icinga2 monitoring-plugins -y
Node Wizzard: Connection to Master #
# Run Node Wizzard
sudo icinga2 node wizard
Please specify if this is an agent/satellite setup ('n' installs a master setup) [Y/n]: # enter
Please specify the common name (CN) [ubnts1]: # ubnts1
Please specify the parent endpoint(s) (master or satellite) where this node should connect to:
Master/Satellite Common Name (CN from your master/satellite node): #ubnticinga
Do you want to establish a connection to the parent node from this node? [Y/n]: # y
Please specify the master/satellite connection information:
Master/Satellite endpoint host (IP address or FQDN): # 192.168.30.195
Master/Satellite endpoint port [5665]: # enter
Add more master/satellite endpoints? [y/N]: # enter
Is this information correct? [y/N]: # y
Please specify the request ticket generated on your Icinga 2 master (optional).
(Hint: icinga2 pki ticket --cn 'ubnts1'):
- Switch to Icinga2 Server
# Open Container Terminal
docker exec -it icinga2-icinga2-1 bash
# Run the following Command
icinga2 pki ticket --cn 'ubnts1'
# Copy Shell Output
3cbee4db60efcd79c56c14961ce93290c8c2b548
- Move back to node Wizzard
Please specify the request ticket generated on your Icinga 2 master (optional).
(Hint: icinga2 pki ticket --cn 'ubnts1'): # 5cf6daae1ca438a3e12a6de29397193694bbd96b
Please specify the API bind host/port (optional):
Bind Host []: # enter
Bind Port []: # enter
Accept config from parent node? [y/N]: # y
Accept commands from parent node? [y/N]: # y
Reconfiguring Icinga...
Disabling feature notification. Make sure to restart Icinga 2 for these changes to take effect.
Enabling feature api. Make sure to restart Icinga 2 for these changes to take effect.
Local zone name [ubnts1]: # enter
Parent zone name [master]: # enter
Default global zones: global-templates director-global
Do you want to specify additional global zones? [y/N]: # enter
Do you want to disable the inclusion of the conf.d directory [Y/n]: # enter
- Restart Icinga2 Agent on host
# Restart Icinga2 Agent
sudo systemctl restart icinga2
# Check Status
sudo systemctl status icinga2
# Check Logs
tail -f /var/log/icinga2/icinga2.log
Node Wizzard: No Connection to Master #
# Run Node Wizzard
sudo icinga2 node wizard
Please specify if this is an agent/satellite setup ('n' installs a master setup) [Y/n]: # Enter
Please specify the common name (CN) [ubnts1]: # ubnts1
Please specify the parent endpoint(s) (master or satellite) where this node should connect to:
Master/Satellite Common Name (CN from your master/satellite node): # ubnticinga
Do you want to establish a connection to the parent node from this node? [Y/n]: # n
Please copy the public CA certificate from your master/satellite
into '/var/lib/icinga2/certs//ca.crt' before starting Icinga 2.
Please specify the API bind host/port (optional):
Bind Host []: # Enter
Bind Port []: # Enter
Accept config from parent node? [y/N]: # y
Accept commands from parent node? [y/N]: # y
Reconfiguring Icinga...
Local zone name [gilgamesh.thesiestagroup.com]: # Enter
Parent zone name [master]: # Enter
Default global zones: global-templates director-global
Do you want to specify additional global zones? [y/N]: # Enter
Do you want to disable the inclusion of the conf.d directory [Y/n]: # Enter
Disabling the inclusion of the conf.d directory...
Done.
Now restart your Icinga 2 daemon to finish the installation!
- Copy cert to host or import manually
# Copy cert to host
sudo vi /var/lib/icinga2/certs/ca.crt
# Set permissions
sudo chown nagios:nagios /var/lib/icinga2/certs/ca.crt
-
Add new host with Icinga2 Director
-
Activity log: deploy 1 pending changes
-
Restart Icinga2 Agent on host
# Restart Icinga2 Agent
sudo systemctl restart icinga2
# Check Status
sudo systemctl status icinga2
# Check Logs
tail -f /var/log/icinga2/icinga2.log
- Sign Certificate
# Exec Internal Terminal
docker exec -it icinga2-icinga2-1 bash
# List Certificates
icinga2 ca list
Shell output:
-----------------------------------------------------------------|--------------------------|--------|--------
8c4a9f0e3c1236d78c789e4a5d69fdef2b3a4e5b6c7d8e9fb0a1234567890abc | Oct 19 13:46:58 2023 GMT | | CN = ubnts1
# Sign Certificate
icinga2 ca sign 8c4a9f0e3c1236d78c789e4a5d69fdef2b3a4e5b6c7d8e9fb0a1234567890abc
Icinga Director #
Host and Host Group #
Create Host Group #

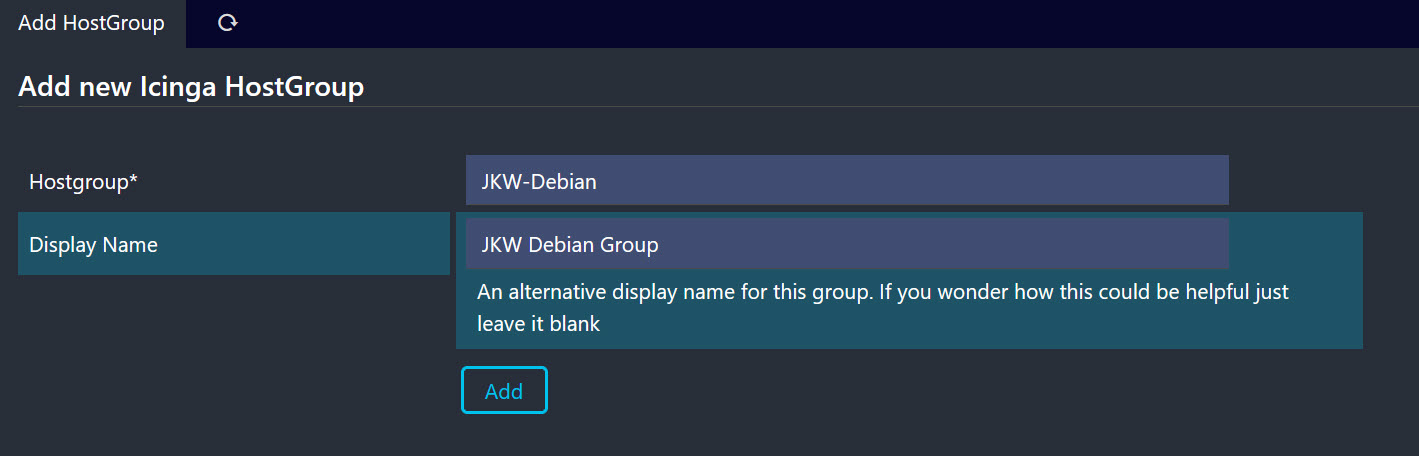

Go to: Icinga Director / Hosts / Host Groups: Add

Click: Add, Store & Deploy
Create Host Template #

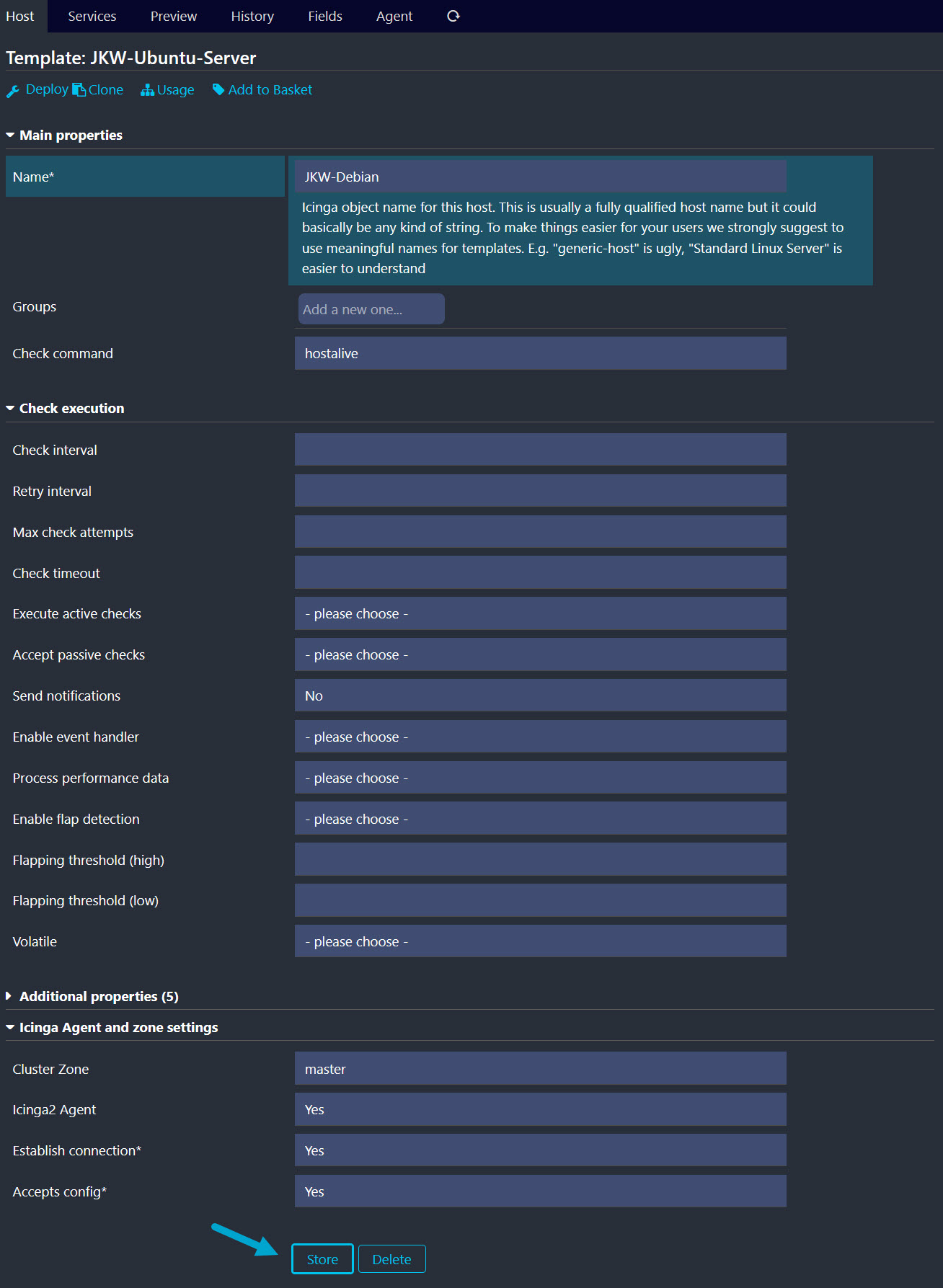

Go to: Icinga Director / Hosts / Host Templates: Add

Add Host to Host Group #

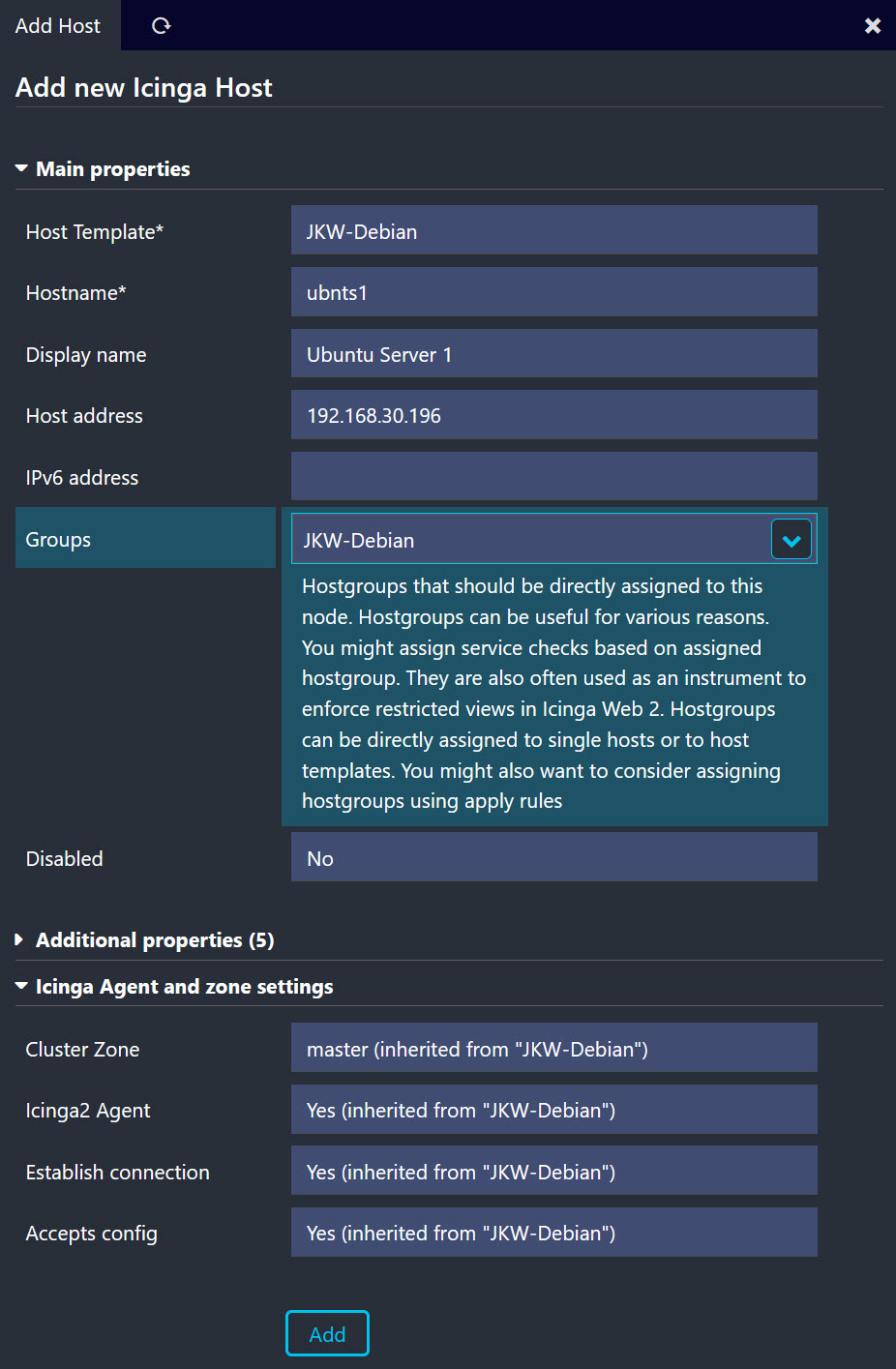

Go to: Icinga Director / Hosts / Hosts: Add

Service Sets and Templates #
Create Service Templates #

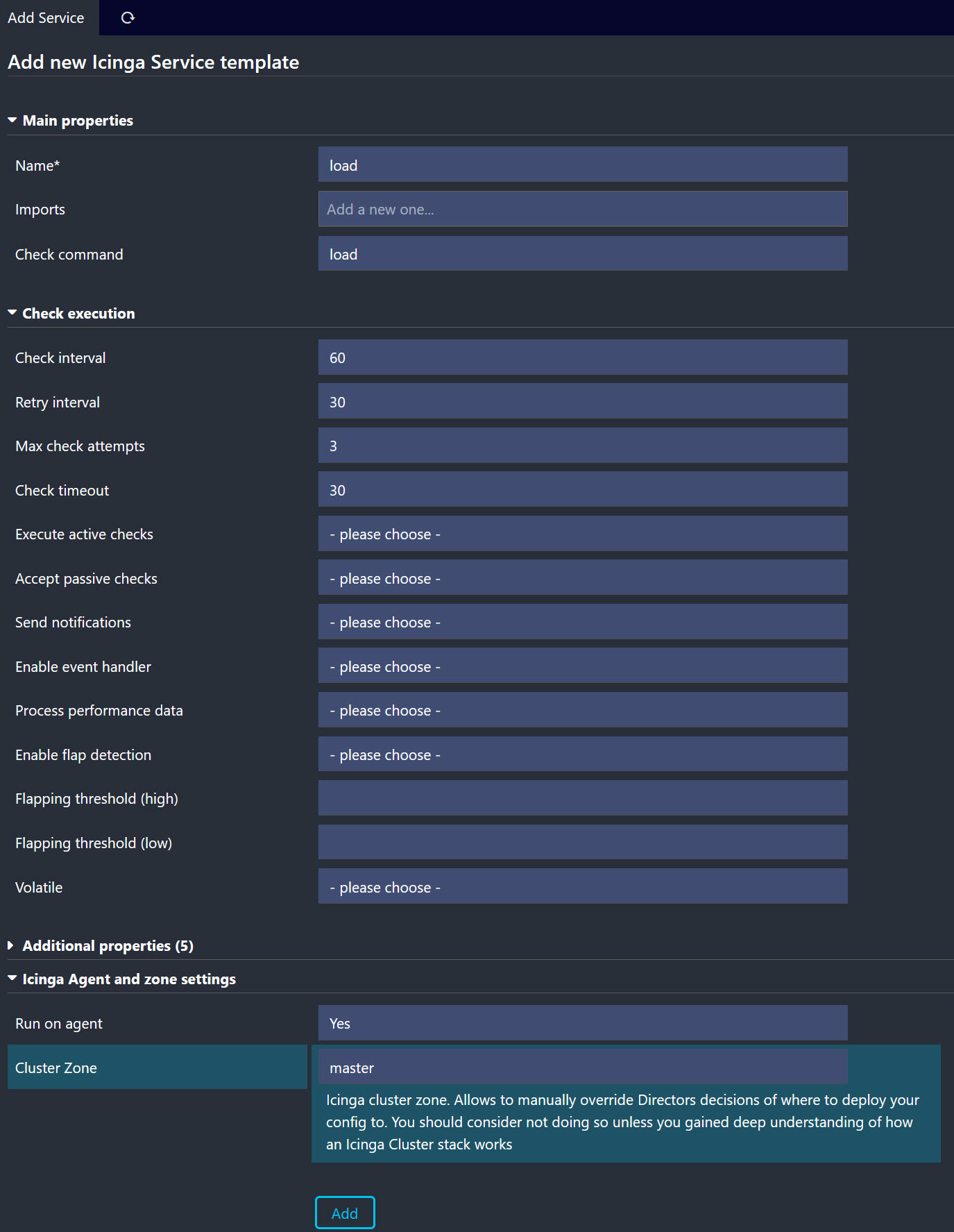

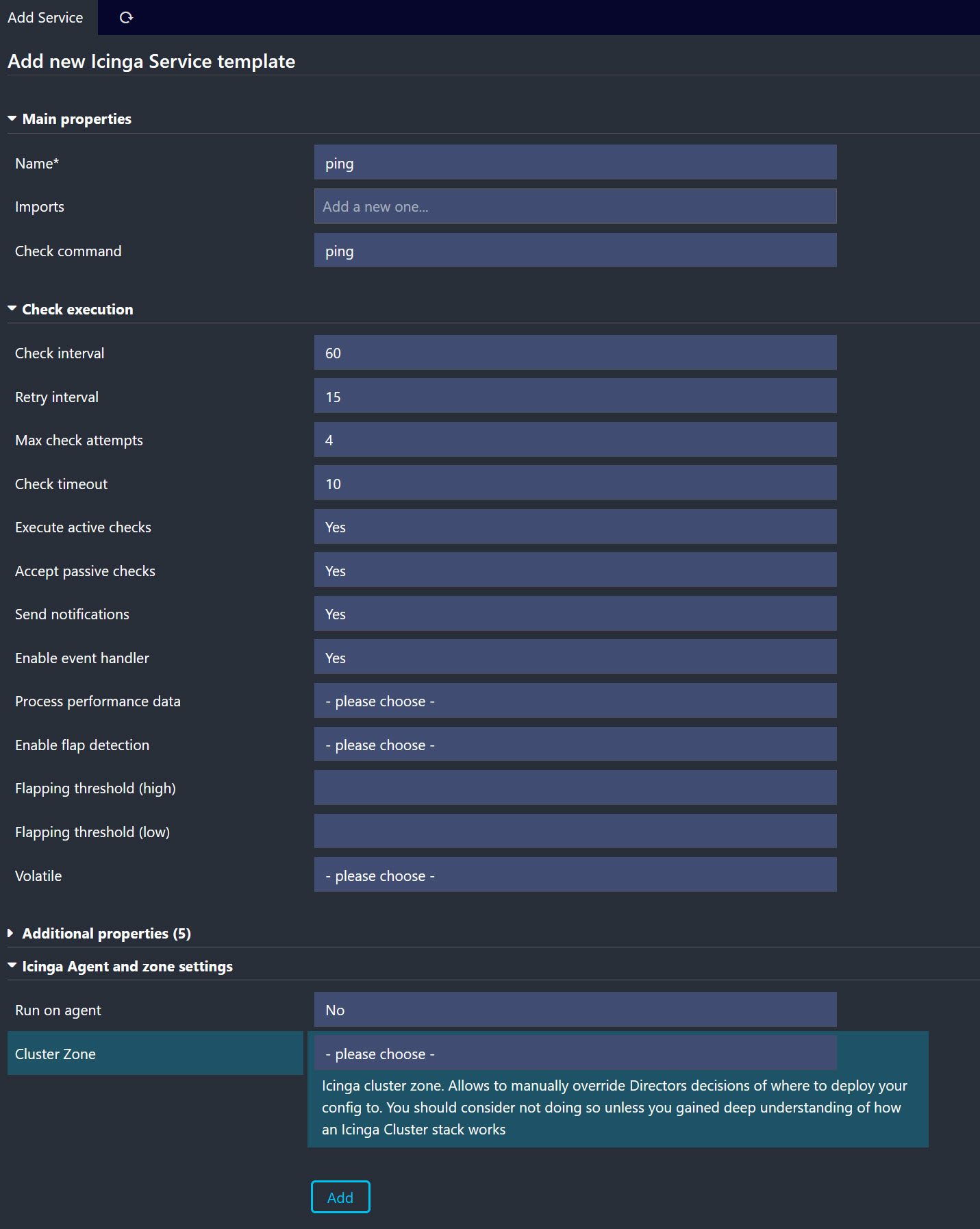

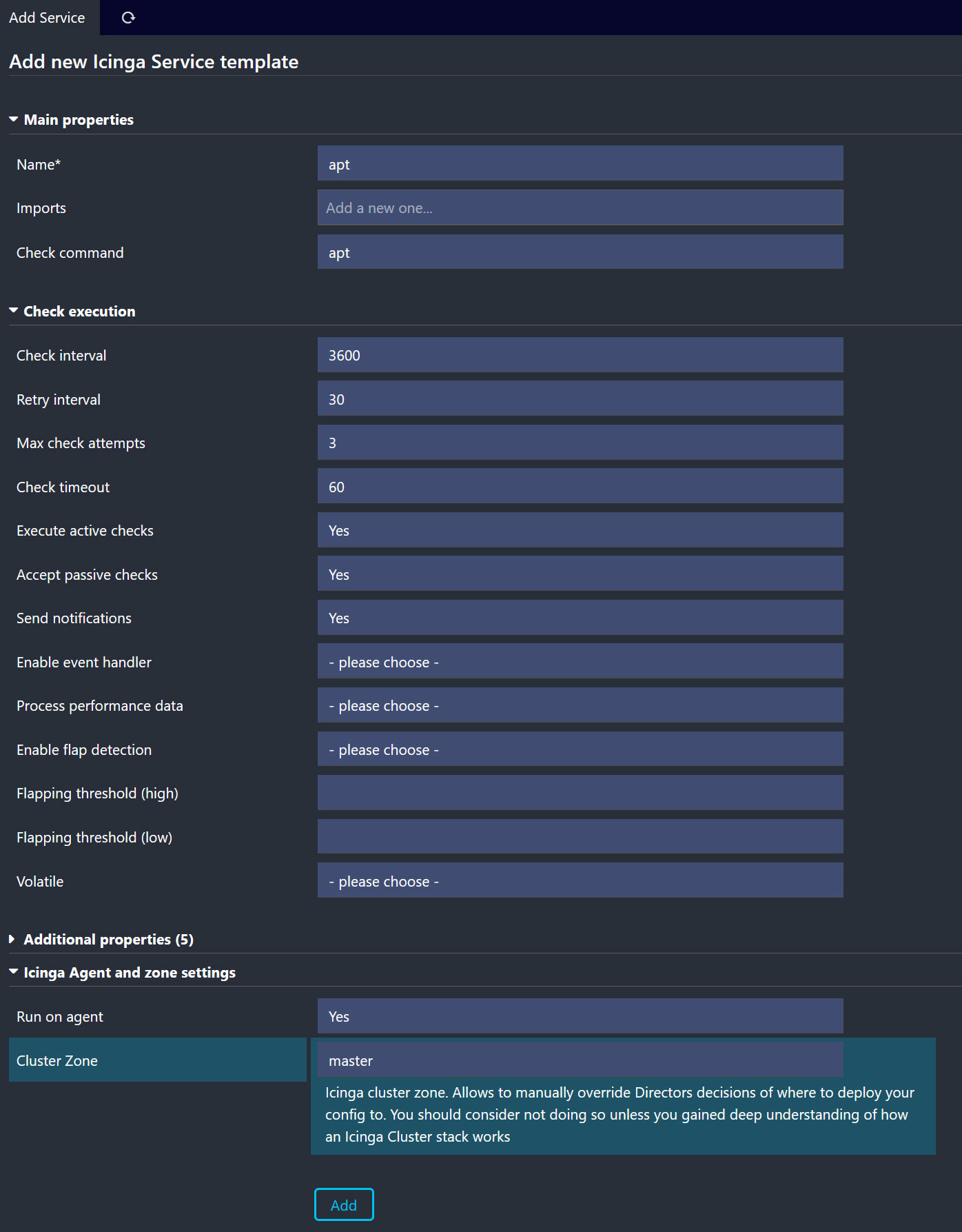

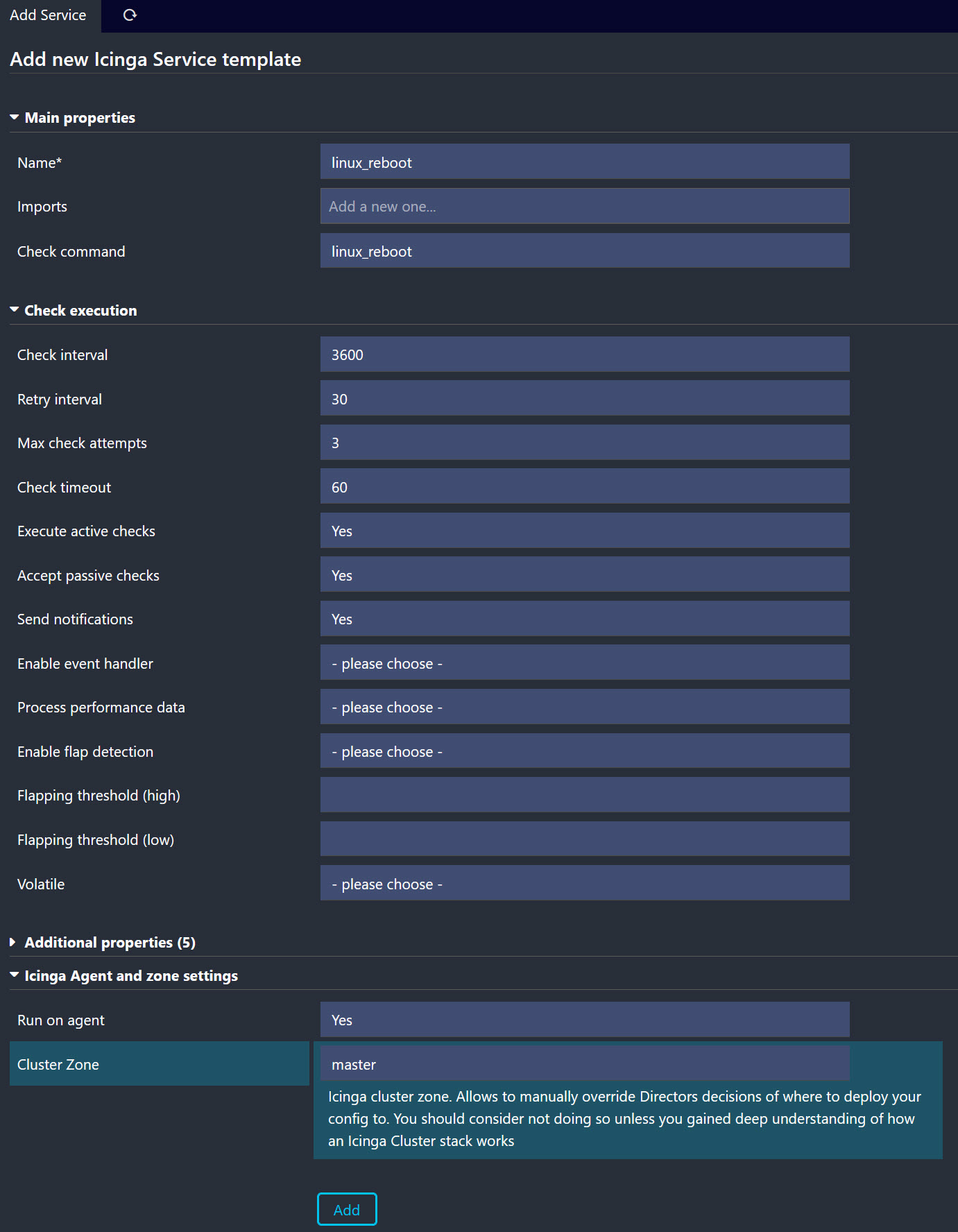

Go To: Icinga Director / Services / Service Templates: Add
The Service Templates we’ll create are based on the External Commands that are already available with Icinga. We just define the specific parameters for the Checks in the Templates.



Create Service Set #

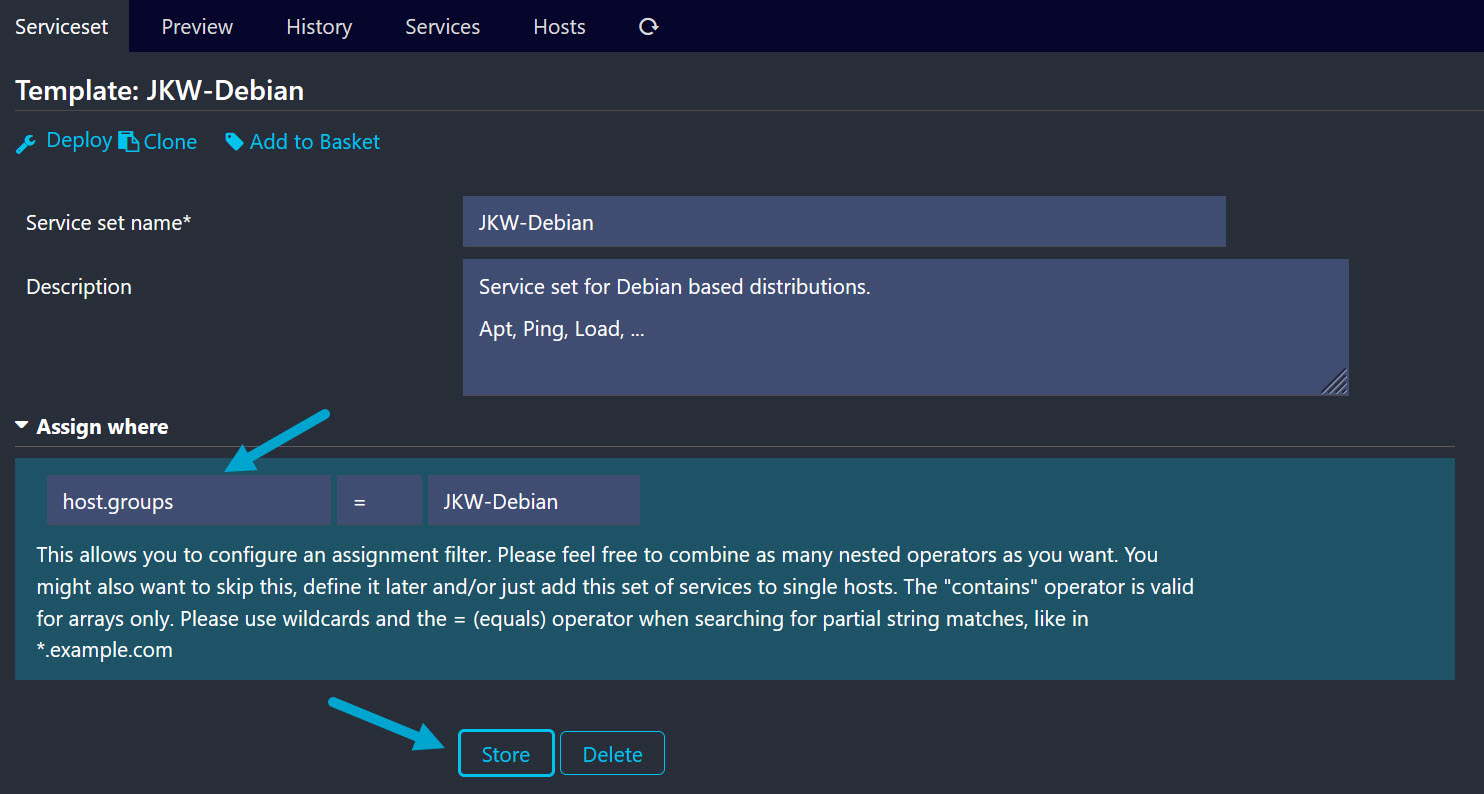

Go to: Icinga Director / Services / Service Sets: Add
Define the Host Group for which the Service Set applies:

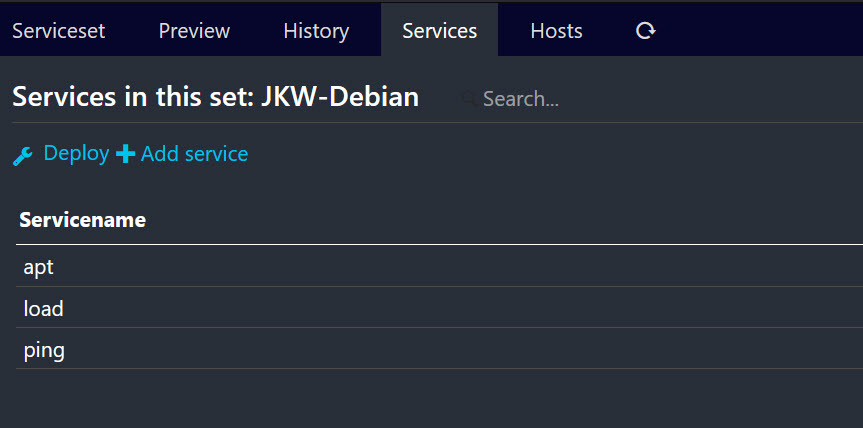

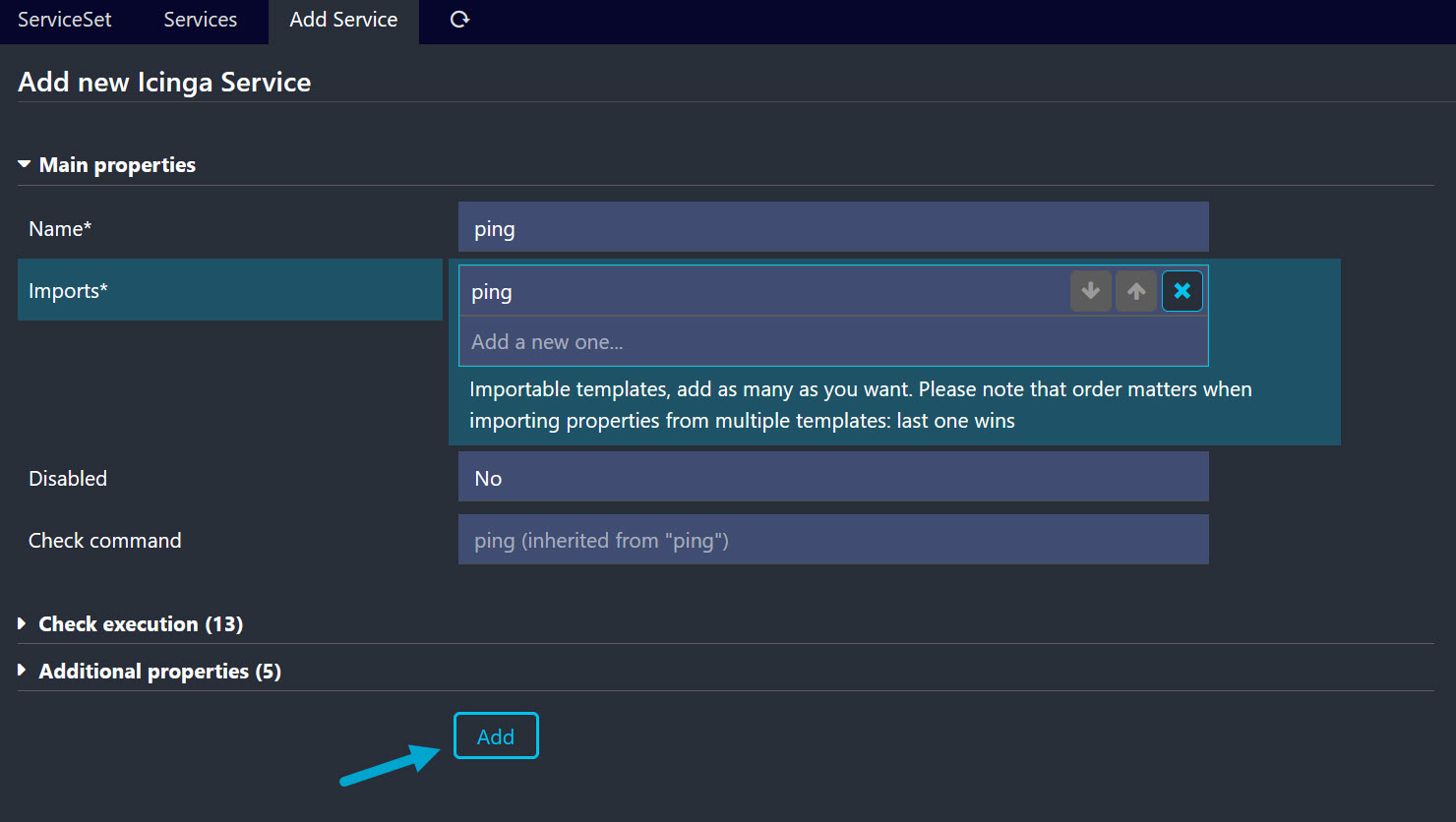

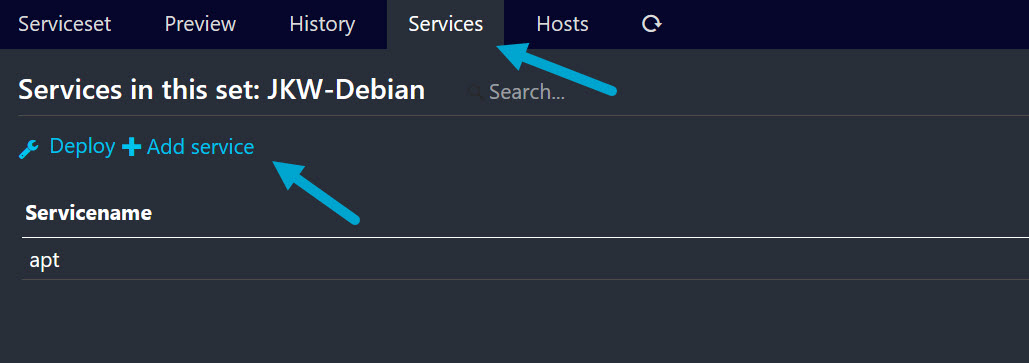

Go to the “Services” section of the Service Set and add the Service Templates we created: apt, ping & load



Service Grid #

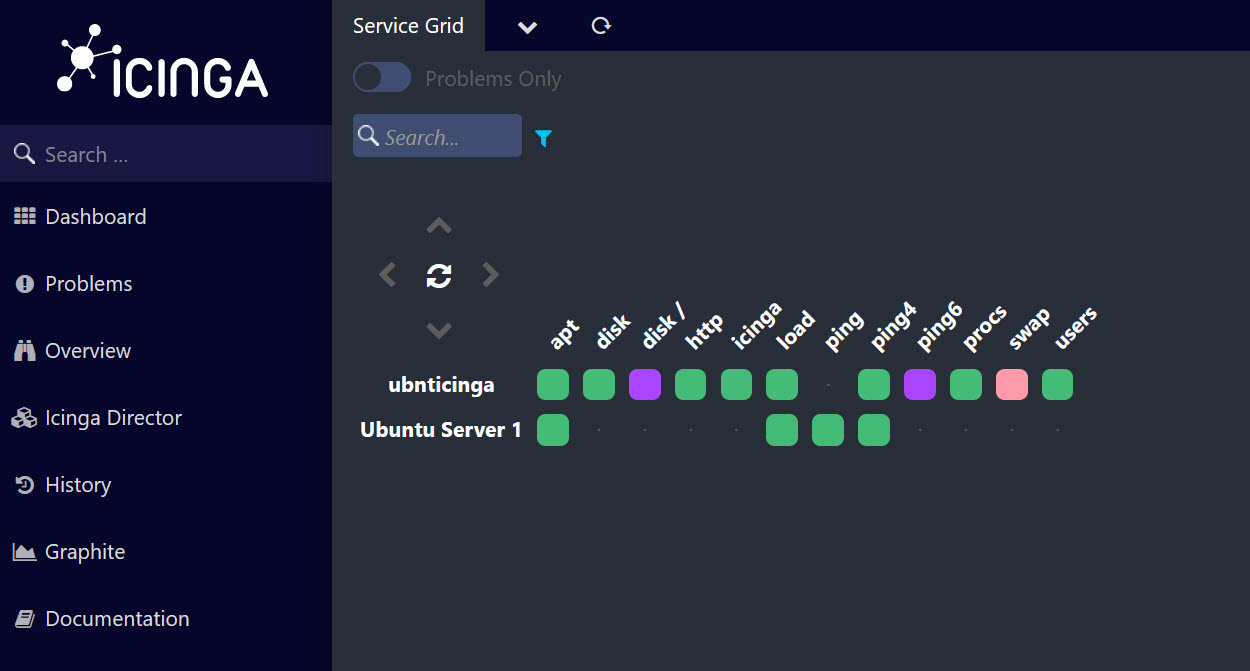

Open the Icinga Serive Grid, it now should look like this:

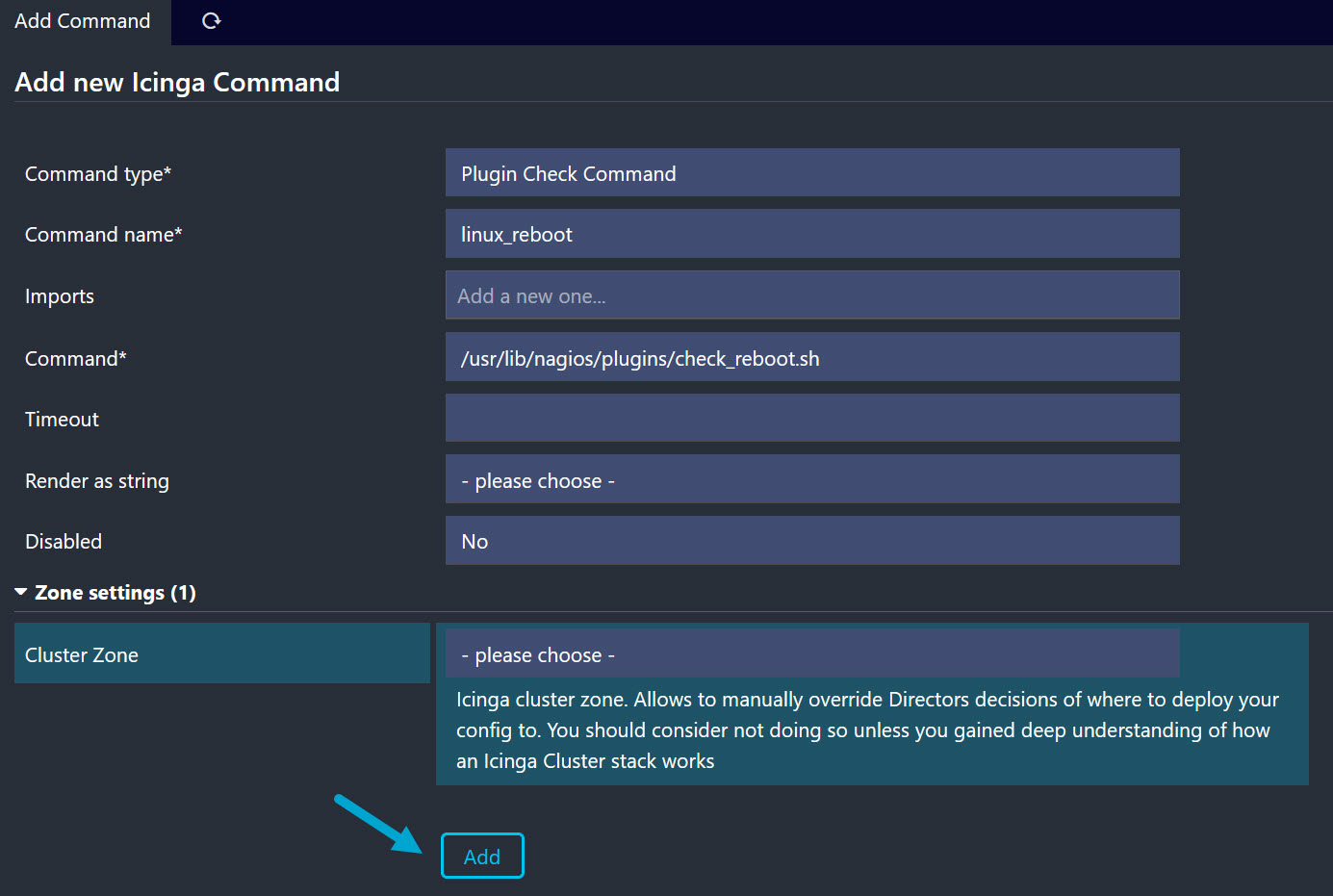

Custom Commands #
This is an Example for an Custom Command that checks if the Linux Server needs a reboot.
Add Script on Client #
# Open Plugin Directory
cd /usr/lib/nagios/plugins
# Create File for Command
vi check_reboot.sh
# Make File executable
chmod +x check_reboot.sh
Add the following Script:
#!/bin/bash
# Copyright (C) 2017 Martin Scharm <https://binfalse.de/contact/>
#
# This file is part of bf-monitoring.
# <https://binfalse.de/software/nagios/>
# <https://github.com/binfalse/monitoring>
#
# This program is free software: you can redistribute it and/or modify
# it under the terms of the GNU General Public License as published by
# the Free Software Foundation, either version 3 of the License, or
# (at your option) any later version.
#
# This program is distributed in the hope that it will be useful,
# but WITHOUT ANY WARRANTY; without even the implied warranty of
# MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
# GNU General Public License for more details.
#
# You should have received a copy of the GNU General Public License
# along with this program. If not, see <http://www.gnu.org/licenses/>.
# this script checks if the file /var/run/reboot-required is present
# should work on all debian-based systems...
if [ -f "/var/run/reboot-required" ]
then
echo "reboot required!"
exit 1
else
echo "looks good over here..."
exit 0
fi
Create Custom Command #
Go to: Icinga Director / Commands / Commands: Add

Define the Custom Command and add the path to the script:
# Add path to script
/usr/lib/nagios/plugins/check_reboot.sh
Create Service Template #
Go to: Icinga Director / Services / Service Templates: Add

Add the new created “linux_reboot” Service Template to the “JKW-Debian” Service Set we created earlier and check the Service Grid :)
