AWS Elastic File System (EFS): Terraform Configuration, Mount EFS into EC2 Instance

# Update packages
sudo apt update

# Unstall zip tool
sudo apt install unzip -y

# Download AWS CLI zip file
curl "https://awscli.amazonaws.com/awscli-exe-linux-x86_64.zip" -o "awscliv2.zip"

# Unzip
unzip awscliv2.zip

# Install
sudo ./aws/install

# Verify installation / check version
/usr/local/bin/aws --version

# Start AWS CLI configuration
aws configure

# Install the HashiCorp GPG key
wget -O- https://apt.releases.hashicorp.com/gpg | gpg --dearmor | sudo tee /usr/share/keyrings/hashicorp-archive-keyring.gpg > /dev/null

# Verify the GPG key fingerprint
gpg --no-default-keyring --keyring /usr/share/keyrings/hashicorp-archive-keyring.gpg --fingerprint

# Add the official HashiCorp repository
echo "deb [signed-by=/usr/share/keyrings/hashicorp-archive-keyring.gpg] https://apt.releases.hashicorp.com $(lsb_release -cs) main" | sudo tee /etc/apt/sources.list.d/hashicorp.list

# Install Terraform
sudo apt update && sudo apt-get install terraform

# Verify installation / check version
terraform version

aws-efs-ec2
├── ec2.tf
├── efs_filesystem.tf
├── outputs.tf
├── security-groups.tf
├── terraform.tf
├── variables.tf
└── vpc.tf

# Create Terraform project folder
TF_PROJECT_NAME=aws-efs-ec2
mkdir $TF_PROJECT_NAME && cd $TF_PROJECT_NAME

# Terraform Provider
terraform {
  required_providers {
    aws = {
      source  = "hashicorp/aws"
      version = "~> 5.0"
    }
  }
}

# Provider AWS Region
provider "aws" {
  alias  = "aws_region"
  region = var.aws_region
}

## AWS Region & Availability Zones

variable "aws_region" {
  description = "AWS Region"
  type        = string
  default     = "us-east-1"
}

variable "availability_zone_1" {
  description = "The availability zone for the subnet"
  type        = string
  default     = "us-east-1a"
}

variable "availability_zone_2" {
  description = "The availability zone for the subnet"
  type        = string
  default     = "us-east-1b"
}


## VPC: CIDR Blocks

variable "vpc_cidr" {
  description = "VPC CIDR block"
  type        = string
  default     = "10.10.0.0/16"
}

variable "vpc_subnet_cidr_1" {
  description = "Subnet CIDR block"
  type        = string
  default     = "10.10.0.0/24"
}

variable "vpc_subnet_cidr_2" {
  description = "Subnet CIDR block"
  type        = string
  default     = "10.10.1.0/24"
}


## VPC Name

variable "vpc_name" {
  description = "The name of the VPC"
  type        = string
  default     = "Example-VPC"
}


## SSH Key and EC2 Image

# SSH key pair name
variable "key_name" {
  default = "us-east-1-pc-le" # Define key pair name
}

# EC2 Image ID
variable "ami_id" {
  default = "ami-0e2c8caa4b6378d8c" # Define EC2 AMI ID
}

# VPC
resource "aws_vpc" "vpc" {
  provider = aws.aws_region
  cidr_block           = var.vpc_cidr
  enable_dns_support   = true
  enable_dns_hostnames = true

  tags = {
    Name       = "${var.vpc_name}"
    Env        = "Production"
  }
}


# Public Subnet "10.10.0.0/24"
resource "aws_subnet" "vpc_subnet_public1" {
  provider = aws.aws_region
  vpc_id                  = aws_vpc.vpc.id
  cidr_block              = var.vpc_subnet_cidr_1
  availability_zone       = var.availability_zone_1
  map_public_ip_on_launch = true

  tags = {
    Name      = "${var.vpc_name} Subnet-Public-1"
    Env       = "Production"
  }
}

# Public Subnet "10.11.0.0/24"
resource "aws_subnet" "vpc_subnet_public2" {
  provider = aws.aws_region
  vpc_id                  = aws_vpc.vpc.id
  cidr_block              = var.vpc_subnet_cidr_2
  availability_zone       = var.availability_zone_2
  map_public_ip_on_launch = true

  tags = {
    Name      = "${var.vpc_name} Subnet-Public-2"
    Env       = "Production"
  }
}


# Internet Gateway
resource "aws_internet_gateway" "vpc_igw" {
  provider = aws.aws_region
  vpc_id = aws_vpc.vpc.id

  tags = {
    Name        = "${var.vpc_name} IGW"
    Env         = "Production"
  }
}


# Public Routing Table
resource "aws_route_table" "vpc_public_routetable" {
  provider = aws.aws_region
  vpc_id = aws_vpc.vpc.id

  route {
    cidr_block = "0.0.0.0/0"
    gateway_id = aws_internet_gateway.vpc_igw.id
  }

  tags = {
    Name        = "${var.vpc_name} Public Route Table"
    Env         = "Production"
  }
}


# Associate Routes with Subnets
resource "aws_route_table_association" "vpc_subnet_public1_ra" {
  provider = aws.aws_region
  subnet_id      = aws_subnet.vpc_subnet_public1.id
  route_table_id = aws_route_table.vpc_public_routetable.id
}

# Associate Routes with Subnets
resource "aws_route_table_association" "vpc_subnet_public2_ra" {
  provider = aws.aws_region
  subnet_id      = aws_subnet.vpc_subnet_public2.id
  route_table_id = aws_route_table.vpc_public_routetable.id
}

# vpc: Security Group for SSH Access and Ping
resource "aws_security_group" "ec2_sg" {
  provider = aws.aws_region
  name        = "SG"
  description = "Security group for SSH access and ping"
  vpc_id      = aws_vpc.vpc.id

  ingress {
    description = "Allow SSH from anywhere"
    from_port   = 22
    to_port     = 22
    protocol    = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
  }

  ingress {
    description = "Allow ping"
    from_port   = 8
    to_port     = -1
    protocol    = "icmp"
    cidr_blocks = ["0.0.0.0/0"]
  }

  egress {
    description = "Allow all outbound traffic"
    from_port   = 0
    to_port     = 0
    protocol    = "-1"
    cidr_blocks = ["0.0.0.0/0"]
  }

  depends_on = [aws_vpc.vpc]

  tags = {
    Name = "SG"
    Env  = "Production"
  }
}


# Security Group for EFS Mount Targets
resource "aws_security_group" "efs_sg" {
  provider    = aws.aws_region
  name        = "EFS-SG"
  description = "Security group for EFS access"
  vpc_id      = aws_vpc.vpc.id

  ingress {
    description     = "Allow NFS traffic from EC2 instances"
    from_port       = 2049
    to_port         = 2049
    protocol        = "tcp"
    security_groups = [aws_security_group.ec2_sg.id]
  }

  egress {
    description = "Allow all outbound traffic"
    from_port   = 0
    to_port     = 0
    protocol    = "-1"
    cidr_blocks = ["0.0.0.0/0"]
  }

  depends_on = [aws_vpc.vpc]

  tags = {
    Name = "EFS SG"
    Env  = "Production"
  }
}

# EFS File System
resource "aws_efs_file_system" "efs_filesystem" {
  creation_token = "efs-ec2"
  performance_mode = "generalPurpose"
  throughput_mode  = "elastic"

  lifecycle_policy {
    transition_to_ia = "AFTER_30_DAYS"
  }

  depends_on = [aws_vpc.vpc]

  tags = {
    Name = "EFS for EC2"
  }
}

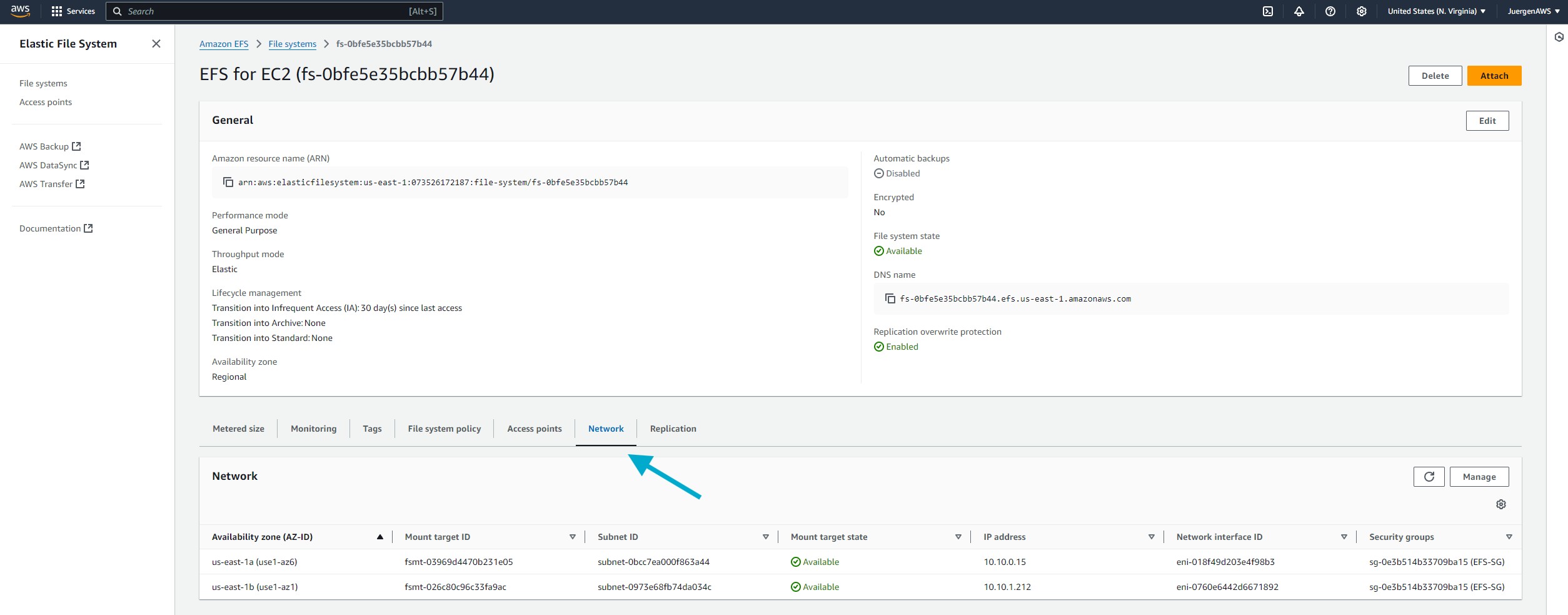

# Mount Target in Subnet 1
resource "aws_efs_mount_target" "efs_mount_target1" {
  file_system_id  = aws_efs_file_system.efs_filesystem.id
  subnet_id       = aws_subnet.vpc_subnet_public1.id
  security_groups = [aws_security_group.efs_sg.id]

  depends_on = [
    aws_vpc.vpc,
    aws_subnet.vpc_subnet_public1,
    aws_security_group.efs_sg,
    aws_efs_file_system.efs_filesystem
    ]
}

# Mount Target in Subnet 2
resource "aws_efs_mount_target" "efs_mount_target2" {
  file_system_id  = aws_efs_file_system.efs_filesystem.id
  subnet_id       = aws_subnet.vpc_subnet_public2.id
  security_groups = [aws_security_group.efs_sg.id]

  depends_on = [
    aws_vpc.vpc,
    aws_subnet.vpc_subnet_public2,
    aws_security_group.efs_sg,
    aws_efs_file_system.efs_filesystem
    ]
}

# EC2 Instance in Public Subnet 1
resource "aws_instance" "ec2_public_subnet1" {
  provider = aws.aws_region
  ami                    = var.ami_id
  instance_type          = "t3.small"
  subnet_id              = aws_subnet.vpc_subnet_public1.id
  key_name               = var.key_name
  vpc_security_group_ids = [aws_security_group.ec2_sg.id]

  depends_on = [
    aws_vpc.vpc,
    aws_security_group.ec2_sg,
    aws_efs_file_system.efs_filesystem,
    aws_efs_mount_target.efs_mount_target1
    ]

  tags = {
    Name = "public-subnet-vm-1"
    Env  = "Production"
  }
}


# EC2 Instance in Public Subnet 2
resource "aws_instance" "ec2_public_subnet2" {
  provider = aws.aws_region
  ami                    = var.ami_id
  instance_type          = "t3.small"
  subnet_id              = aws_subnet.vpc_subnet_public2.id
  key_name               = var.key_name
  vpc_security_group_ids = [aws_security_group.ec2_sg.id]

  depends_on = [
    aws_vpc.vpc,
    aws_security_group.ec2_sg,
    aws_efs_file_system.efs_filesystem,
    aws_efs_mount_target.efs_mount_target2
    ]

  tags = {
    Name = "public-subnet-vm-2"
    Env  = "Production"
  }
}

# EC2 Instance public IP
output "Public_Instance1_Public_IP" {
  description = "Public IP address of the EC2 instance in the public subnet"
  value       = aws_instance.ec2_public_subnet1.public_ip
}

# EC2 Instance public IP
output "Public_Instance2_Public_IP" {
  description = "Public IP address of the EC2 instance in the public subnet"
  value       = aws_instance.ec2_public_subnet2.public_ip
}


# EFS File System ID
output "EFS_File_System_ID" {
  value = aws_efs_file_system.efs_filesystem.id
  description = "The ID of the EFS file system"
}

# Initialize the Terraform project
terraform init

# Validates the syntax and structure of Terraform configuration files
terraform validate

# Shell output:
Success! The configuration is valid.

# Dry run / preview changes before applying them
terraform plan

# Create network stack
terraform apply -auto-approve

# Shell output:
Apply complete! Resources: 14 added, 0 changed, 0 destroyed.

Outputs:

EFS_File_System_ID = "fs-0bfe5e35bcbb57b44"
Public_Instance1_Public_IP = "54.210.85.168"
Public_Instance2_Public_IP = "44.193.7.244"

# SSH into EC2 instance 1
ssh -i /home/ubuntu/.ssh/us-east-1-pc-le.pem ubuntu@54.210.85.168

# SSH into EC2 instance 2
ssh -i /home/ubuntu/.ssh/us-east-1-pc-le.pem ubuntu@44.193.7.244

# Install requirements
sudo apt update && sudo apt -y install git binutils rustc cargo pkg-config libssl-dev gettext

# Clone efs-utils git repository
git clone https://github.com/aws/efs-utils && cd efs-utils

# Build & install amazon-efs-utils
./build-deb.sh
sudo apt-get -y install ./build/amazon-efs-utils*deb

# Verify Installation
amazon-efs-mount-watchdog --version

# Shell output
/usr/bin/amazon-efs-mount-watchdog Version: 2.2.0

# Open the EFS configuration file
sudo vi /etc/amazon/efs/efs-utils.conf

# Uncomment and define AWS EFS Region
[mount]
region = us-east-1

# Create the mount point directory
sudo mkdir -p /mnt/efs

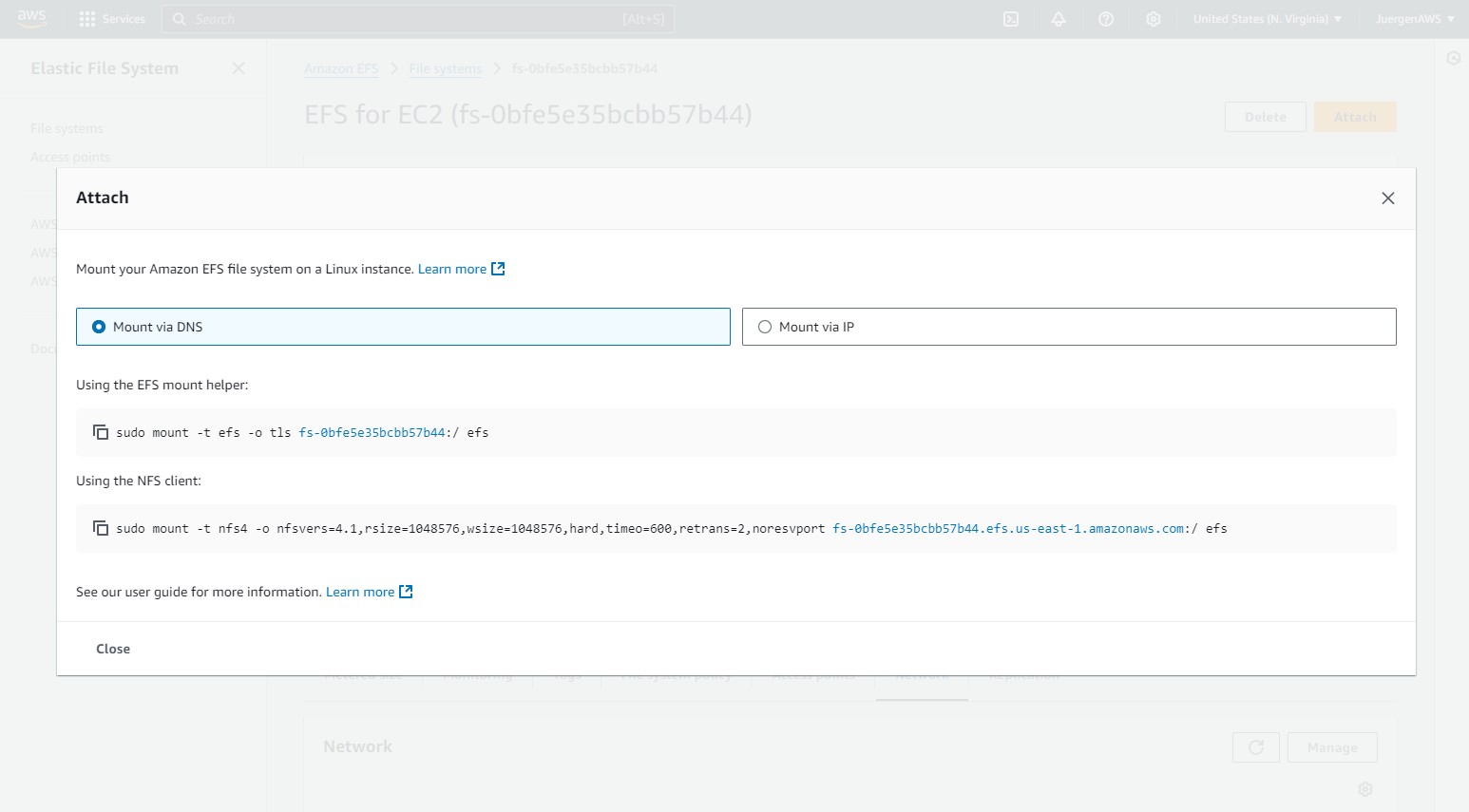

# Mount EFS file system: Define EFS ID
sudo mount -t efs -o tls fs-0bfe5e35bcbb57b44:/ /mnt/efs

# List mounted filesystems
df -h

# Shell
Filesystem       Size  Used Avail Use% Mounted on
/dev/root        6.8G  3.5G  3.3G  52% /
tmpfs            956M     0  956M   0% /dev/shm
tmpfs            383M  968K  382M   1% /run
tmpfs            5.0M     0  5.0M   0% /run/lock
efivarfs         128K  3.6K  120K   3% /sys/firmware/efi/efivars
/dev/nvme0n1p16  881M   76M  744M  10% /boot
/dev/nvme0n1p15  105M  6.1M   99M   6% /boot/efi
tmpfs            192M   12K  192M   1% /run/user/1000
127.0.0.1:/      8.0E     0  8.0E   0% /mnt/efs

# Create a new file on the EFS share via EC2 instance 1
sudo touch /mnt/efs/file1

# Verify the file from the EC2 instance 2
ls /mnt/efs/

# Shell output:
file1

# GitHub Repository
https://github.com/jueklu/terraform-aws-efs-ec2

# EFS Utils Installation
https://github.com/aws/efs-utils?tab=readme-ov-file#on-other-linux-distributions
