Argo CD Git Webhook Configuration for GitLab with Ansible

453 words·
Argo CD GitLab Git Webhook Ansible
Table of Contents

Prerequisites
#

Create Token
#

Create a token (random string) used to authenticate the Git webhook with Argo CD:

# Create a token
openssl rand -hex 32

# Shell output:
7347fbd015e63b8f9eb34a56f03cb8a69a6b68b7daceb6055db36f18f8ad5dce



Argo CD
#

Adapt Kubernetes Secret: Manual Version
#

Backup the Secret
#

# Create a backup of the secret
kubectl -n argocd get secret argocd-secret -o yaml > argocd-secret-backup.yaml

# Only if necessary: Restore the secret
kubectl apply -f argocd-secret-backup.yaml -n argocd

Edit the Secret
#

# Edit the ArgoCD secret
kubectl edit secret argocd-secret -n argocd

Original Secret:

# Please edit the object below. Lines beginning with a '#' will be ignored,
# and an empty file will abort the edit. If an error occurs while saving this file will be
# reopened with the relevant failures.
#
apiVersion: v1
data:
  admin.password: ...
  admin.passwordMtime: ...
  oidc.azure.clientSecret: ...
  server.secretkey: ...
  tls.crt: ...
  tls.key: ...
kind: Secret
metadata:
  creationTimestamp: "2025-11-17T15:26:37Z"
  labels:
    app.kubernetes.io/name: argocd-secret
    app.kubernetes.io/part-of: argocd
  name: argocd-secret
  namespace: argocd
  resourceVersion: "3333037"
  uid: a6a39178-ef1e-4f51-a977-63fb1725c0a8
type: Opaque

Add the GitLab Git webhook token:

# Please edit the object below. Lines beginning with a '#' will be ignored,
# and an empty file will abort the edit. If an error occurs while saving this file will be
# reopened with the relevant failures.
#
apiVersion: v1
data:
  admin.password: ...
  admin.passwordMtime: ...
  oidc.azure.clientSecret: ...
  server.secretkey: ...
  tls.crt: ...
  tls.key: ...
stringData:
  webhook.gitlab.secret: "7347fbd015e63b8f9eb34a56f03cb8a69a6b68b7daceb6055db36f18f8ad5dce"
kind: Secret
metadata:
  creationTimestamp: "2025-11-17T15:26:37Z"
  labels:
    app.kubernetes.io/name: argocd-secret
    app.kubernetes.io/part-of: argocd
  name: argocd-secret
  namespace: argocd
  resourceVersion: "3333037"
  uid: a6a39178-ef1e-4f51-a977-63fb1725c0a8
type: Opaque



Adapt Kubernetes Secret: Ansible Version
#

Ansible Playbook
#

---
- name: ArgoCD Git Webhook
  hosts: localhost
  connection: local
  gather_facts: false
  become: false
  vars:
    argocd_namespace: "argocd"
    gitlab_webhook_token: "7347fbd015e63b8f9eb34a56f03cb8a69a6b68b7daceb6055db36f18f8ad5dce"

  tasks:
    - name: Merge GitLab webhook token to ArgoCD default secret
      delegate_to: localhost
      become: false
      connection: local
      kubernetes.core.k8s:
        state: present
        definition:
          apiVersion: v1
          kind: Secret
          metadata:
            name: argocd-secret
            namespace: "{{ argocd_namespace }}"
          stringData:
            webhook.gitlab.secret: "{{ gitlab_webhook_token }}"
        merge_type:
          - merge

# Run Ansible playbook
ansible-playbook playbooks/argocd_git_webhook.yml -i inventory

Verify Webhook Token
#

# Verify the webhook token value
kubectl -n argocd get secret argocd-secret \
  -o jsonpath='{.data.webhook\.gitlab\.secret}' | base64 -d; echo

# Shell output:
7347fbd015e63b8f9eb34a56f03cb8a69a6b68b7daceb6055db36f18f8ad5dce



GitLab
#

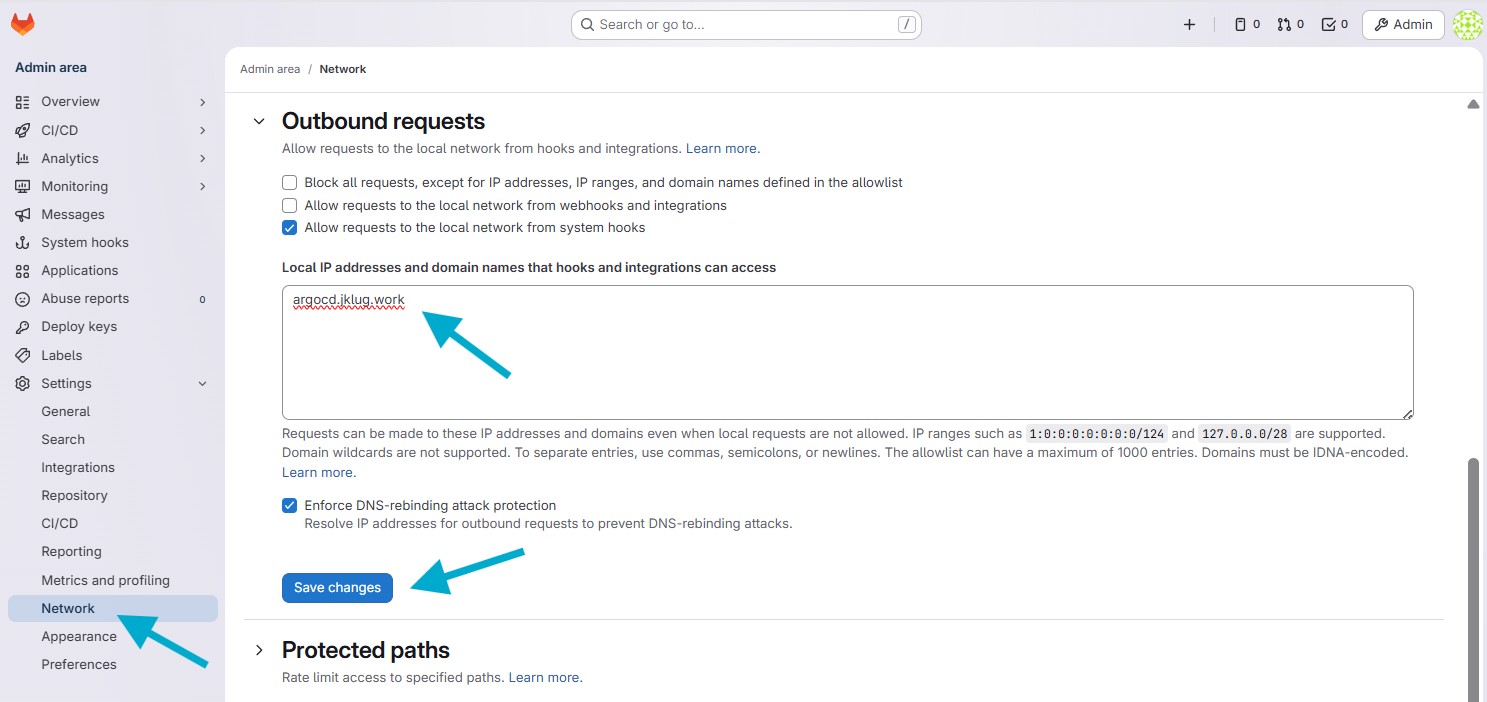

Network: Outbound Requests
#

If “outbound request filtering” is enabled, GitLab can reject webhook URLs with “Invalid URL given” unless the destination is whitelisted.

  • Go to: “Admin” / “Admin area”

  • Select “Settings” > “Network”

  • Scroll to “Outbound requests”

  • Add the Argo CD URL: argocd.jklug.work

  • Click “Save changes”


Add Git Webhook
#

In the Helm Chart repository:

  • Go to: (Project) “Settings” > “Webhooks”

  • Click “Add new webhook”

# Name (optional)
argocd

# URL
https://argocd.jklug.work/api/webhook

# Secret token
7347fbd015e63b8f9eb34a56f03cb8a69a6b68b7daceb6055db36f18f8ad5dce

# Trigger
Push events > All branches
Tag push events

  • Select “Enable SSL verification”

  • Click “Add webhook”

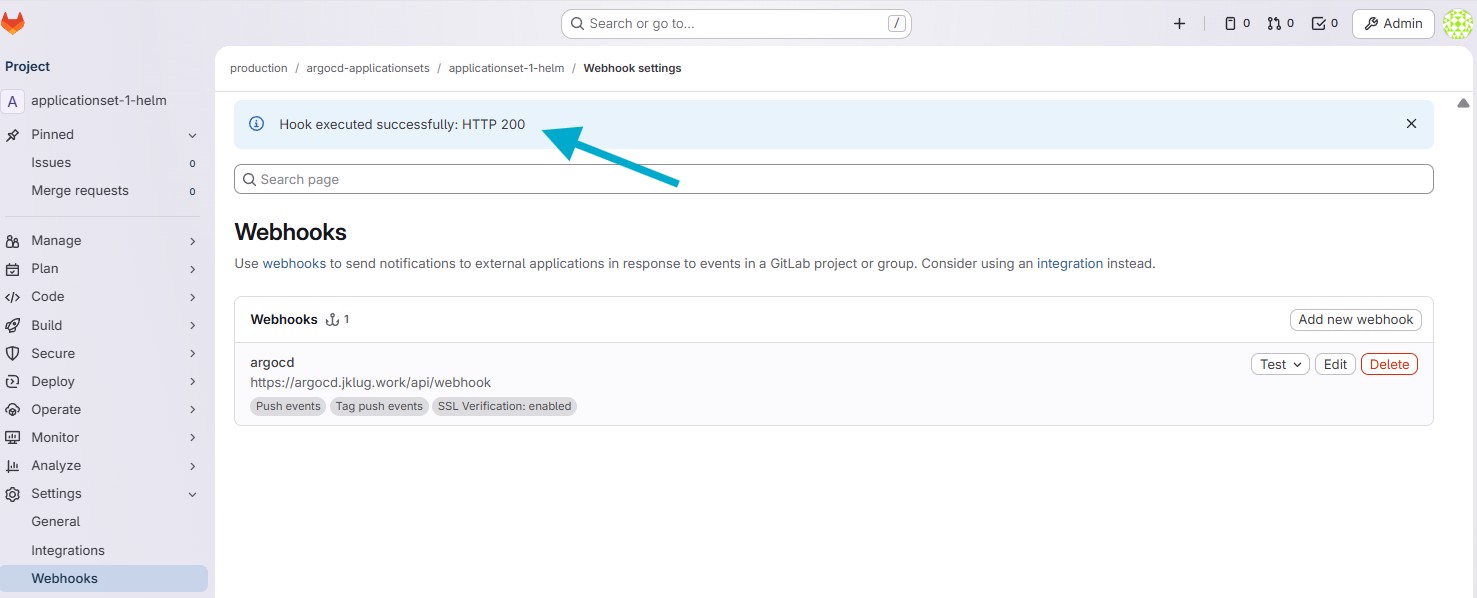

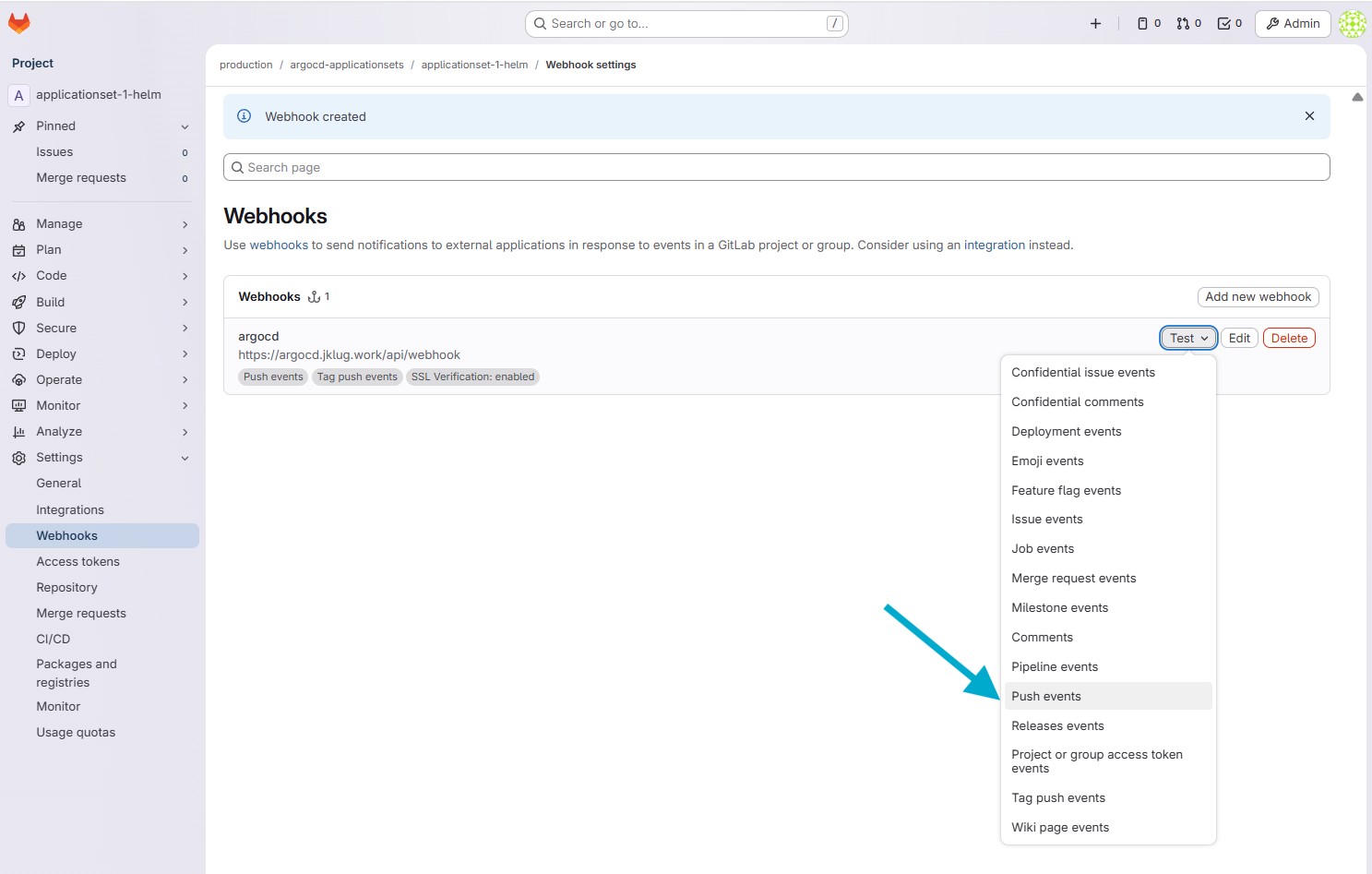

Test Git Webhook
#
